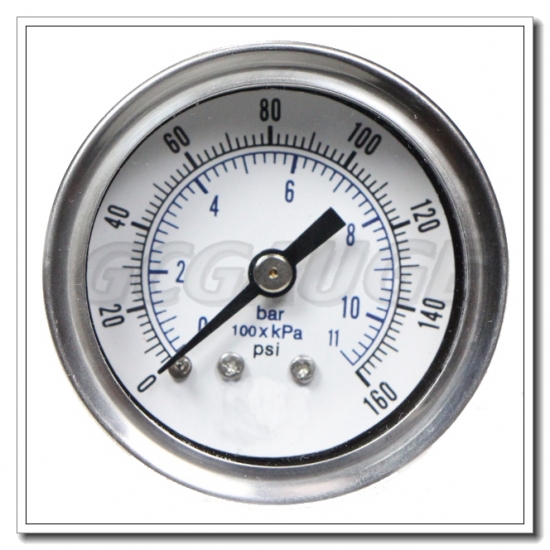

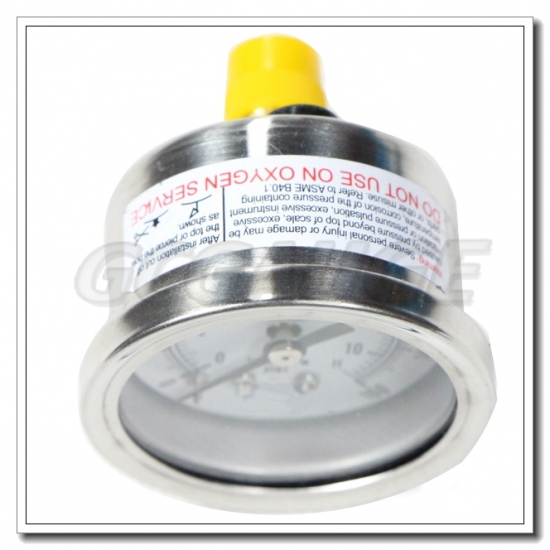

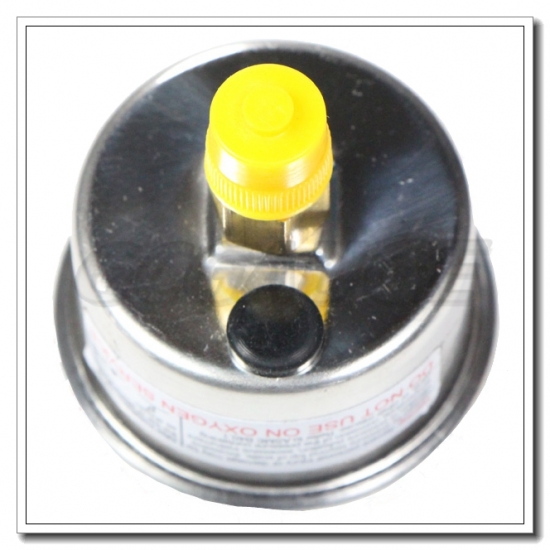

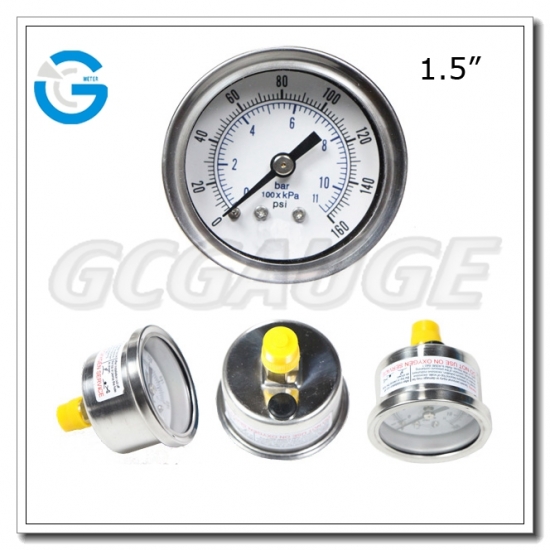

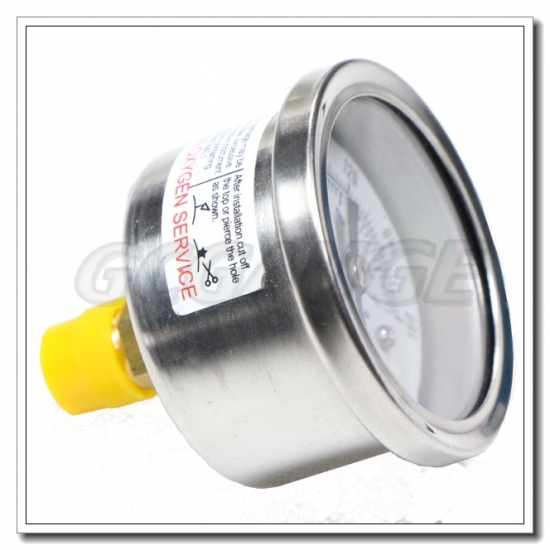

1.5 inch back connection crimped ring SS Case brass internal pressure gauges glycerine filled

  • Stainless steel
  • Brass
  • EN837-1or DIN
  • ISO9001
  • 100% Inspection
  • Lower or back entry;panel mount or surface mount.

Detail


1.5 inch back connection crimped ring SS Case brass internal pressure gauges glycerine filled


Brief:



For SS Case Brass Internal Gauges, we have crimped type, wika bayonet type for your choice, also there're bottom connection glycerine pressure gauge , back connection glycerine pressure gauge for option. Regarding the size, we have 1.5”  liquid gauges, 2”  liquid gauges, 2.5”  liquid gauges, 3”  liquid gauges, 4″  liquid gauges, 6”  liquid gauges, 8"  liquid gauges, 10"  liquid gauges for your reference.


Application & Features:



                    • Outdoor and severe ambient and process conditions

                    • Use where harmful vibration and pulsation are present

                    • Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and                                            process systems

                    • Gaseous, liquid, and corrosive media corrosive environment

                    • Lower or back entry, panel mount or surface mount



Specifications:



Dial

1.5”,2”,2.5”,3”,4″,6”,8",10"(40mm,50mm,63mm,75mm,100mm,150mm,200mm,250mm)

Scale ranges

-1/600bar

Accuracy class

1.6%(63mm);1.0%(63mm)

Process connection

14″(63mm),12″(100 mm or above )NPT or BSP or BSPT

Bourdon tube

Brass

Wetted parts/socket

Brass

Movement

Brass

Pointer

Aluminum, micrometer adjustable available

Welding

Sn Welding; Silver alloy Welding for high pressure series

Case material

Stainless steel 304,DIN bayonet bezel or crimped ring

Window(lens)

Tempered glass, pc or safety glass

Fill

Glycerin or silicone

IP class

IP 65



Dimension:


 Our company's main products include: Economy Pressure Gauge, All Stainless Steel Pressure Gauge, Electric Contact Pressure Gauge, Capsule Low Pressure Gauge, Vacuum Gauge, Oxygen Medical Pressure Gauge, High Pressure Gauge, Spiral Miniature Pressure Gauge, Fire Extinguisher Gauge, Medical Instrument, Diaphragm Pressure meters, Differential Pressure Gauges, Industrial Glass Thermometers, Bimetal Thermometers ,Transmitter, Flow meters ,etc. Continually developing more and more products to adapt to the different requirements from the customers.
