1Inch Chrome-plated micro manometers

  • Copper Alloy
  • EN837-1or DIN
  • ISO9001
  • 100% Inspection

Detail


1 Inch Chrome-plated micro manometers


Brief:



For mini pressure gauges, we also have many type gauges ,such as chrome-plated body, Polycarbonate body 25mm gauges, etc.


Application & Features:



• Reliable, small diameter, low profile gauge

• 1"  sizes

• 1/8" NPT back socket

• Safety over-pressure port on the lens

• Commonly used on portable pneumatic equipment such as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers



Specifications:




Normal Size:

1”

Body:

chrome-painted brass, direct with connector

Dial:

Aluminum material, with stop pin

Pointer:

copper alloy material, colour finished

Connector:

copper alloy, 1/8”,1/4” NPT, BSP

Pressure Element:

Phosphor bronze

Spiral tube system

Pressure range:

0 to 6000psi/400bar

Scale angle:

120-130 depend on the pressure gauge

Accuracy:

+/-4.0% of full scale

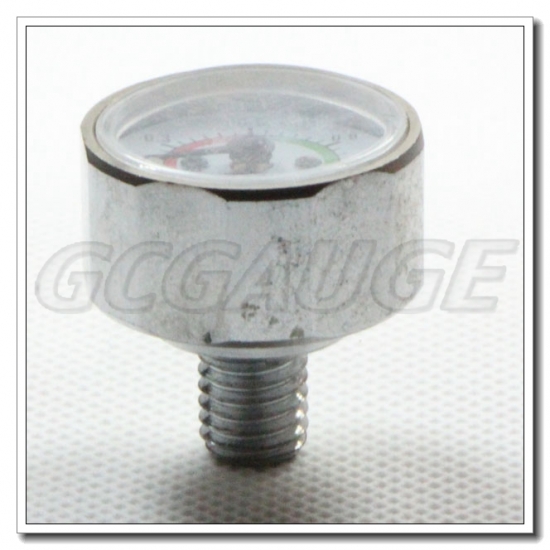

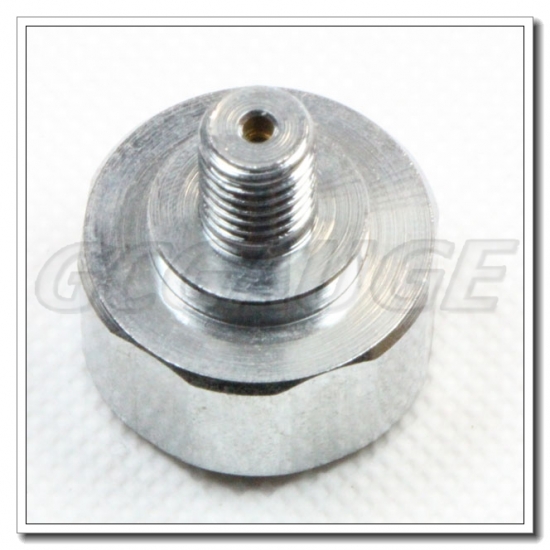

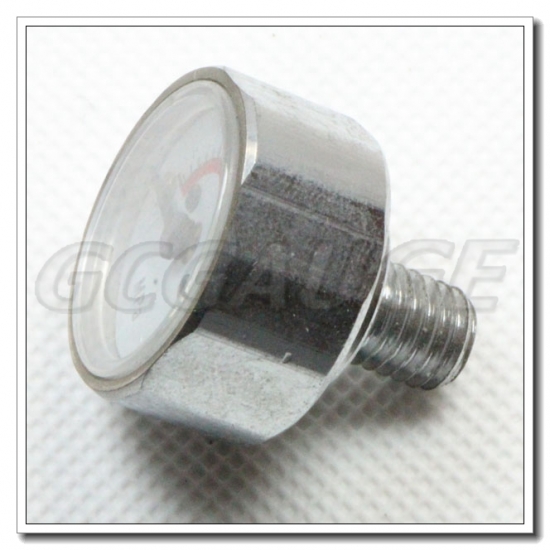

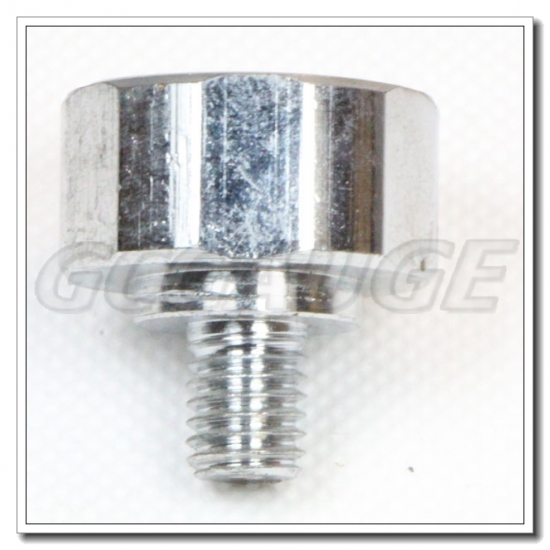

Pictures:
