Case material:
Stainless steelWetted Parts:
Stainless steel 304/316/316LStandard:
EN837-1or DINCertification:
ISO9001Quality:
100% InspectionOptions/Notes:
Lower or back entry;panel mount or surface mount.
2.5" Capsule low all stainless steel back connection mbar low manometro
Brief:
For capsule low pressure gauges, we have bottom connection,back connection,back with U-clamp connection, vacuum gauges etc series for your choice, also some capsule low pressure gauges is suitable for medical use.
Application & Features:
• Brass or stainless steel wetted parts
• Ranges from-600-0, 0-10 to 600mbar
• Suitable for measuring gaseous media both corrosive and non-corrosive
• Used to measure natural gas pressure as well air flow indications and leak detection
• Vacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators
How the Capsule Gauge Works:
Capsule gauges use the diaphragm capsule as the sensing element for pressure measurement. The diaphragm capsule is an elastic metal sensing element comprised of two thin walldiaphragms whose sides are soldered together to the capsule. Whenever air, gas enters the intake port (gauge connection), it travels into the diaphragm capsule. The walls of the capsule expand and contract in response to the change in pressure. This change is then transferred to a rotating rod and arm that rest on the outside of the capsule. The rotating rod is connected to a geared movement through a linkage system. Connected to a shaft, this system then drives the pointer over a dial marked in appropriate pressure or vacuum units to provide a pressure
reading.
Specifications:
|
2.5" (63mm),3”(75mm), 4” (100mm), and 6” (150mm) |
|
|
Range: |
2.5": 2.5KPa ~ 100KPa 3",4": 1KPa ~ 100KPa 6": 0.25KPa ~ 100KPa |
|
Accuracy Class: |
2.5":2.5% 3",4",6": 1.6% |
|
Case: |
black steel(plated optional), 304SS nature color(polish optional) |
|
Lens: |
Polycarbonate,3mm instrument plain glass |
|
Measurement elements: |
Standard copper alloy double diaphragm tin welding: Stainless steel corrosion proof SUS316 double diaphragmplasma welding and lasing welding. |
|
Socket: |
Copper alloy, corrosion proof SS304 |
|
Connection: |
NPT standard |
|
Movement: |
Standard copper alloy, corrosion proof SS316 stainless steel all withmicro adjustment devise (without zero adjustment option) |
|
Pointer: |
Aluminum |
|
Working Pressure: |
75% of full scale value |
|
Over-Pressure Limit: |
30% of full scale value |
|
Ambient Temperature |
-40°F to 150°F (-40°C to 65°C) |
|
Enclosure Rating |
IP54 |
Product Pictures:
Our company's main products include: Economy Pressure Gauge, All Stainless Steel Pressure Gauge, Electric Contact Pressure Gauge, Capsule Low Pressure Gauge, Vacuum Gauge, Oxygen Medical Pressure Gauge, High Pressure Gauge, Spiral Miniature Pressure Gauge, Fire Extinguisher Gauge, Medical Instrument, Diaphragm Pressure meters, Differential Pressure Gauges, Industrial Glass Thermometers, Bimetal Thermometers ,Transmitter, Flow meters ,etc. Continually developing more and more products to adapt to the different requirements from the customers.
Dimension:
Leave A Message2.5" Capsule low black steel central mount single diaphragmlow pressure vacuum gauges, which is used inVacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators
2.5" Capsule low stainless steel brass internal central mount pressure vacuum gauge, which is used inVacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators
4" Capsule low all stainless steel bottom connection low pressure gauges, which is used inVacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators
3" Capsule low stainless steel brass internal bottom connection bellows type pressure gauges, which is used inVacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators
Capsule low pressure gauges 2.5 inch dial with bottom connection, which is used inVacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators

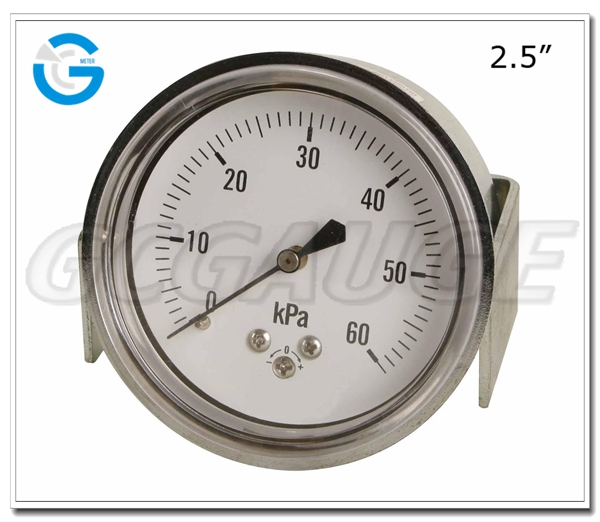

2.5" Capsule low black steel back entry low pressure manometer, which is used inVacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators

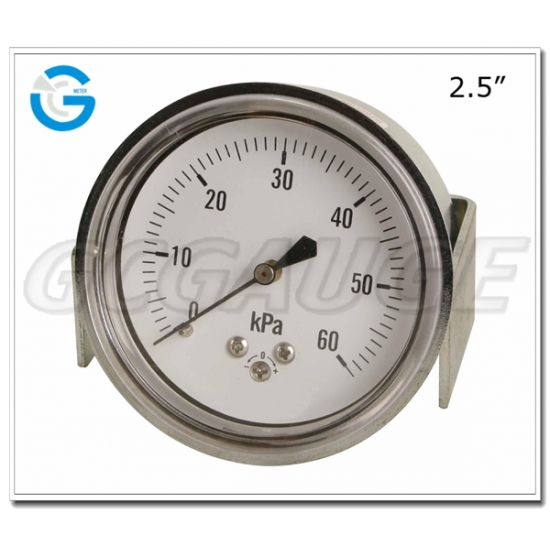

2.5" Capsule low black steel back entry low pressure indicator with U-clamp, which is used inVacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators
2.5" Capsule low black steel lower mount single diaphragmmedical manometer, which is used inVacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
