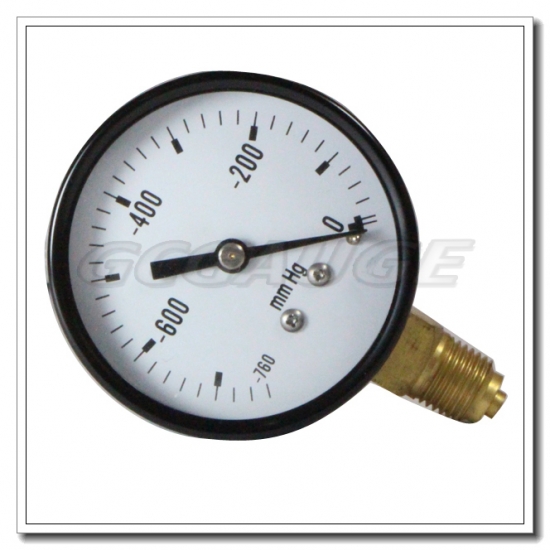

2.5" Economic black steel bottom mounted vacuum pressure guage

  • Black steel
  • Brass
  • EN837-1or DIN
  • ISO9001
  • 100% Inspection
  • Lower or back entry;panel mount or surface mount.

Detail


2.5" Economic black steel bottom mounted vacuum pressure guage


Brief:



For economy pressure gauges, we have snap-in plastic lens type, screw lens type, plating flipping type(chromed ring) , press-in lens type, wika bayonet type for your choice, also we have bottom mounting and back mounting , 63mm and 100mm with option of panel mount or surface mount, 40mm, 50mm, 63mm with option of U-clamp with stainless steel crimped ring.


Application & Features:




• Most economical, all-purpose pressure gauge

 • 1.5" to 3.5" sizes

 • Black steel or ABS case

 • Brass wetted parts

 • Gaseous and liquid media

 • Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM



Specifications:




Dial:

1.5", 2.5", 3", 4" , and 6"

Case:

304SS, black steel, black enameled

Lens:

Polycarbonate

Measurement elements:

Standard copper alloy double diaphragm tin welding;

Stainless steel corrosion proof SUS316 double diaphragm

Socket:

316 SS, Brass

Connection:

NPT standard

Movement:

Standard brass alloy, corrosion proof 316 stainless steel

Pointer:

Aluminum

Welding:

Tin  welding

Working Pressure:

75% of full scale value

Over-Pressure Limit:

30% of full scale value

Ambient Temperature

-40°F to 150°F (-40°C to 65°C)

Accuracy

±2.5

Enclosure Rating

IP52

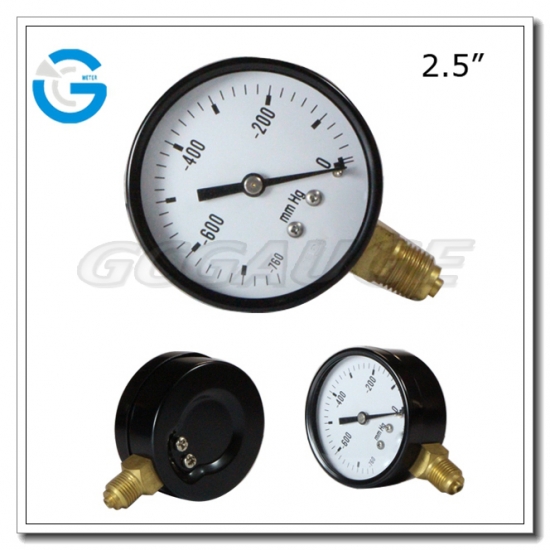

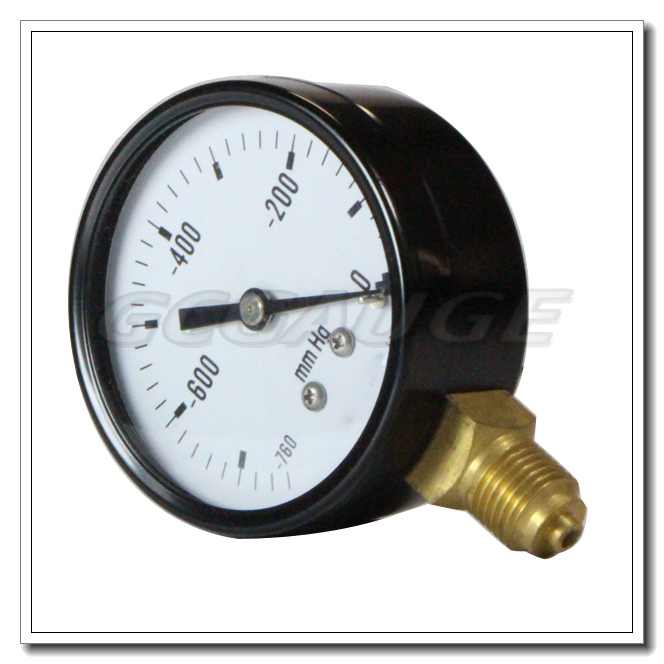

Product Pictures:







Our company's main products include: Economy Pressure Gauge, All Stainless Steel Pressure Gauge, Electric Contact Pressure Gauge, Capsule Low Pressure Gauge, Vacuum Gauge, Oxygen Medical Pressure Gauge, High Pressure Gauge, Spiral Miniature Pressure Gauge, Fire Extinguisher Gauge, Medical Instrument, Diaphragm Pressure meters, Differential Pressure Gauges, Industrial Glass Thermometers, Bimetal Thermometers ,Transmitter, Flow meters ,etc. Continually developing more and more products to adapt to the different requirements from the customers.



Dimension:
