2.5" Medical system black steel bottom mount single diaphragm medical pressure gauges
Brief:
For medical system pressure gauges, we have 1.25", 2.5", bottom connection
low pressure indicator with U-clamp, back connection, back with U-clamp connection, vacuum gauge etc series for your choice.
Application & Features:
• Highly accurate reading of low pressures
• Brass or stainless steel wetted parts
• Ranges from -600-0, 0-25 to 600mbar
• Suitable for measuring gaseous media both corrosive and non-corrosive
• Used to measure natural gas pressure as well air flow indications and leak detection
• Vacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators
Specifications:
Dial: 1.5", 2.5", 3", 4" , and 6" Case: 304SS, black steel, black enameled Lens: Polycarbonate Measurement elements: Standard copper alloy single diaphragm; Stainless steel corrosion proof SUS316 single diaphragm Socket: 316 SS, Brass Connection: NPT standard Movement: Standard brass alloy, corrosion proof 316 stainless steel Pointer: Aluminum Welding: Tin welding Working Pressure: 75% of full scale value Over-Pressure Limit: 30% of full scale value Ambient Temperature -40°F to 150°F (-40°C to 65°C) Accuracy ±2.5 Enclosure Rating IP52

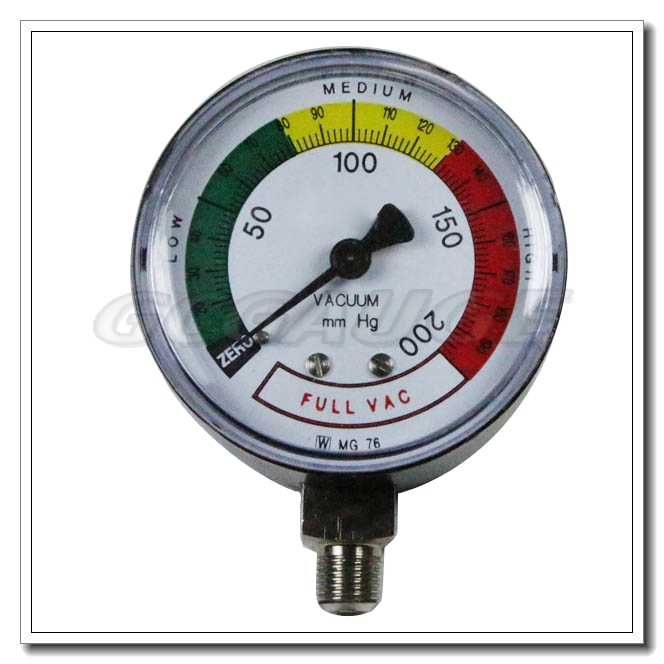

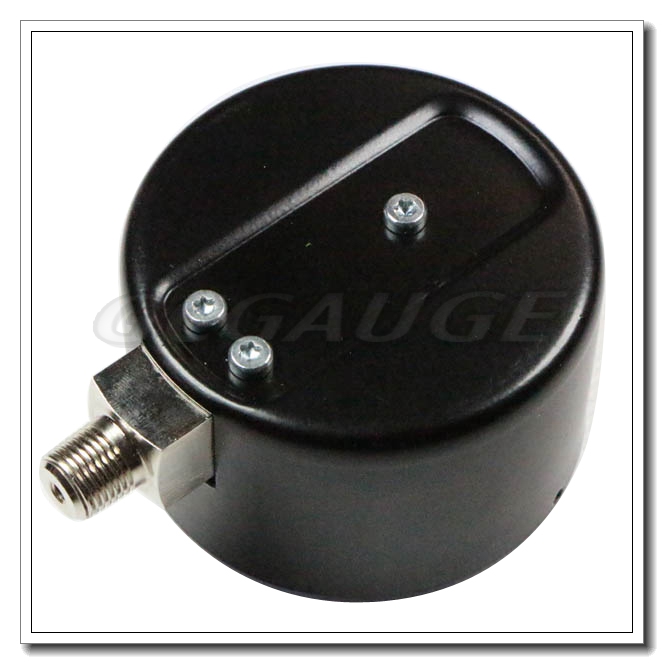

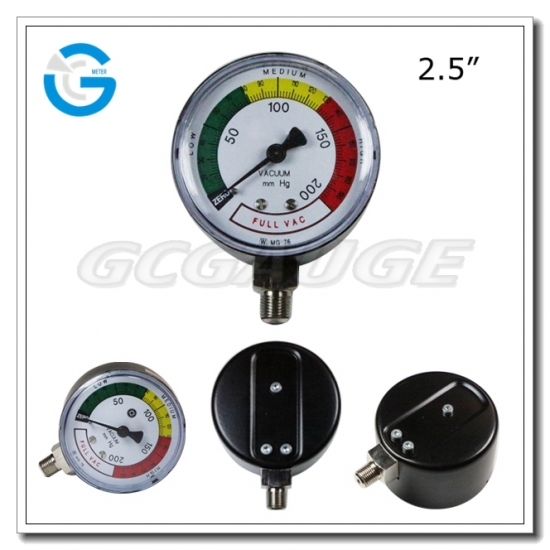

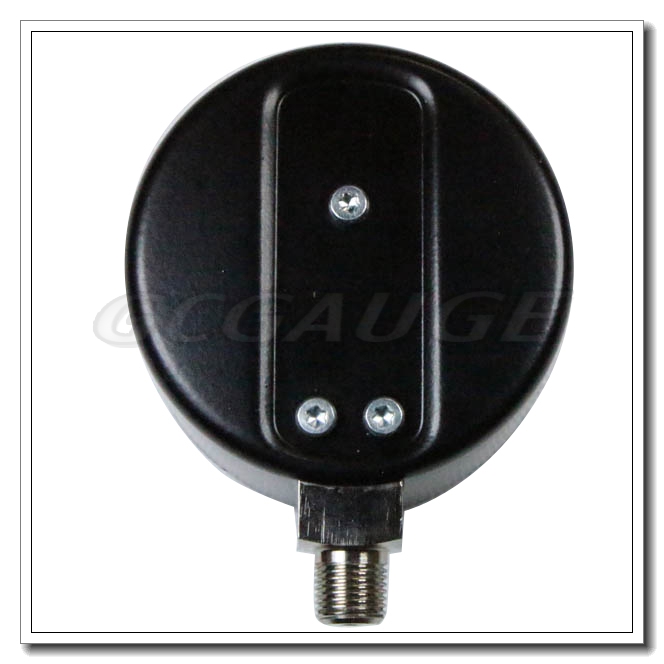

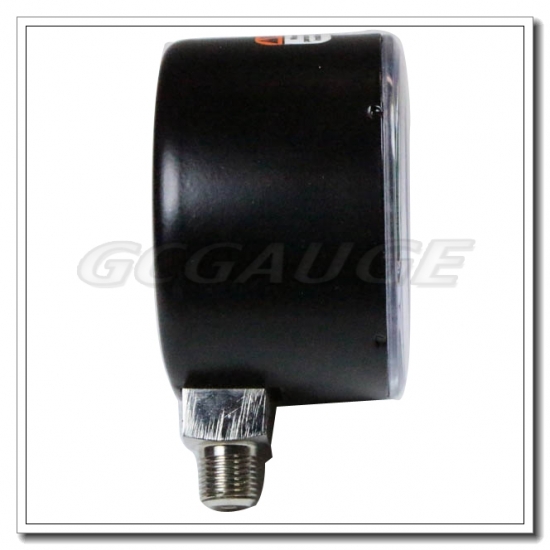

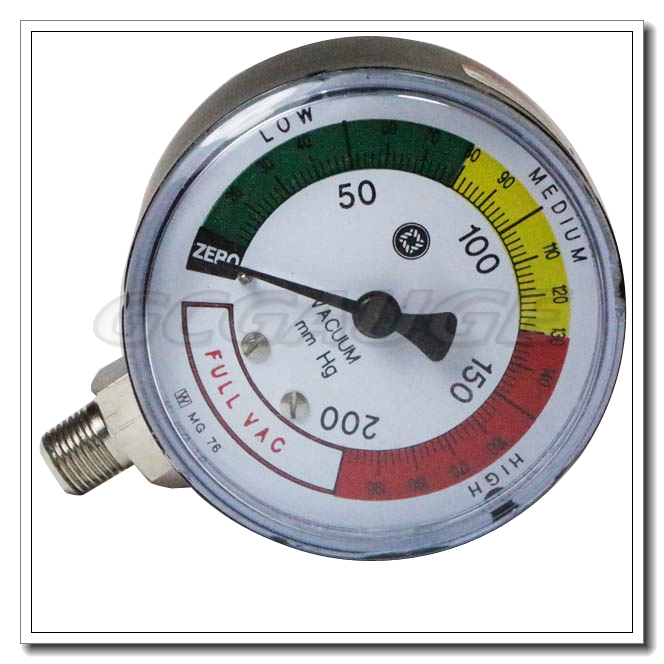

Product Pictures:
Dimension:
