2 inch back connection glycerin filled front flange SS case brass internal gauges

  • Stainless steel
  • Brass
  • EN837-1or DIN
  • ISO9001
  • 100% Inspection
  • Lower or back entry;panel mount or surface mount.

Detail

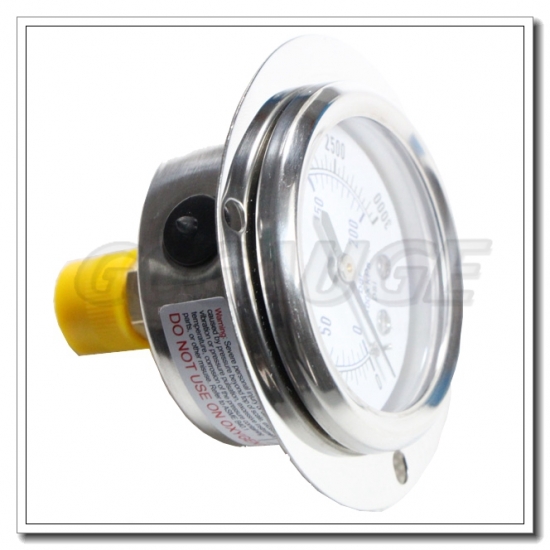

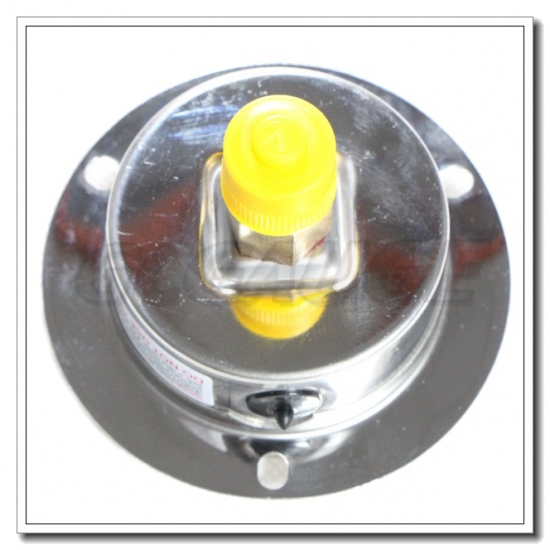

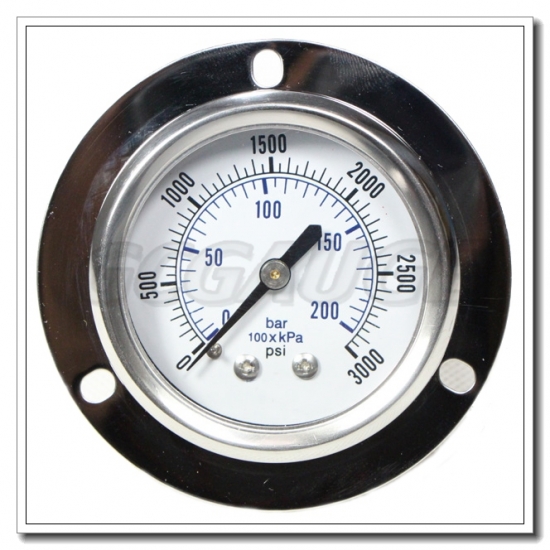

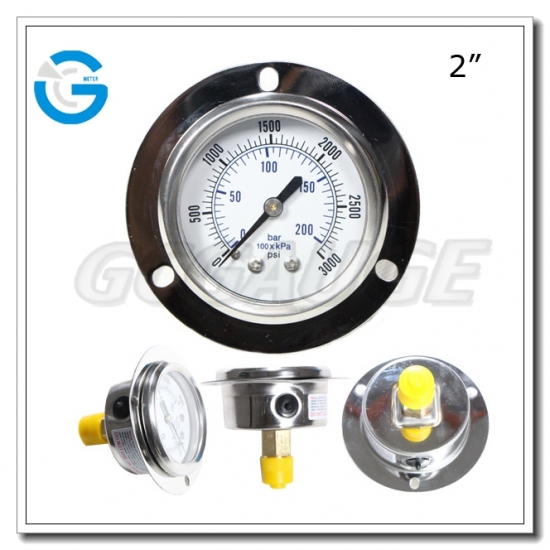

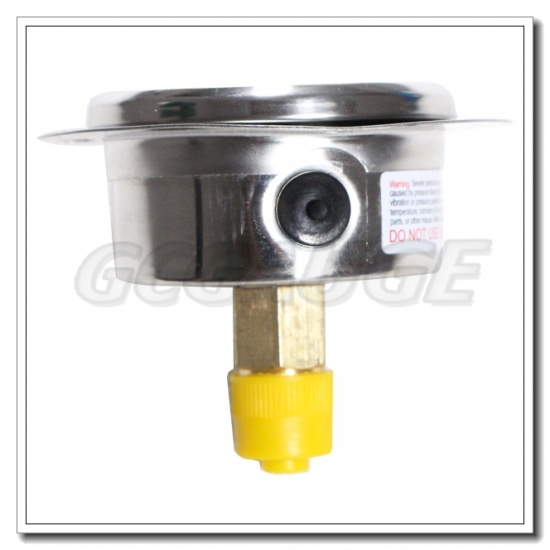

2 inch back connection glycerin filled front flange SS case brass internal gauges


Brief:



For SS Case Brass Internal Gauges, we have crimped type, wika bayonet type for your choice, also there're bottom connection glycerin filled pressure gauges , back connection glycerin filled pressure gauges for option. Regarding the size, we have 1.5” dial gauges, 2” dial gauges, 2.5” dial gauges, 3” dial gauges, 4″ dial gauges, 6” dial gauges, 8" dial gauges, 10" dial gauges for your reference.


Application & Features:



                    • Outdoor and severe ambient and process conditions

                    • Use where harmful vibration and pulsation are present

                    • Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and                                            process systems

                    • Gaseous, liquid, and corrosive media corrosive environment

                    • Lower or back entry, panel mount or surface mount



Specifications:



Dial

1.5”,2”,2.5”,3”,4″,6”,8",10"(40mm,50mm,63mm,75mm,100mm,150mm,200mm,250mm)

Scale ranges

-1/600bar

Accuracy class

1.6%(63mm);1.0%(63mm)

Process connection

14″(63mm),12″(100 mm or above )NPT or BSP or BSPT

Bourdon tube

Brass

Wetted parts/socket

Brass

Movement

Brass

Pointer

Aluminum, micrometer adjustable available

Welding

Sn Welding; Silver alloy Welding for high pressure series

Case material

Stainless steel 304,DIN bayonet bezel or crimped ring

Window(lens)

Tempered glass, pc or safety glass

Fill

Glycerin or silicone

IP class

IP 65



Dimension:
