4" Economy black steel bottom connection bourdon tube pressure gauges with press in lens

  • Black steel
  • Brass
  • EN837-1or DIN
  • ISO9001
  • 100% Inspection
  • Lower or back entry;panel mount or surface mount.

Detail


4" Economy black steel bottom connection bourdon tube pressure gauges with press in lens


Brief:



For economy pressure gauges, we have snap-in lens type, screw lens type, plating flipping type(chromed ring) , press-in lens type, wika bayonet type for your choice, also we have bottom mounting and back mounting , 63mm and 100mm with option of panel mount or surface mount, 40mm, 50mm, 63mm with option of U-clamp with stainless steel crimped ring. Now we add new series, colored pressure gauge panel mount for your choice.


Application & Features:



 • Most economical, all-purpose pressure gauge

 • 1.5" (40mm) to 4" (100mm) sizes

 • Friction bezel rings

 • Black steel case

 • Brass wetted parts

 Gaseous and liquid media

 • Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM



Specifications:






Dial

1.5” (40mm), 2” (50mm), 2.5” (63mm), 4” (100mm)

Case

Steel, painted black (plastic available)

Lens

Polycarbonate,acrylic

Ring

Steel, painted black

Socket

Brass

Connection

1/8” NPT or 1/4” NPT standard

Bourdon Tube

Phosphor bronze

Movement

Brass

Pointer

Aluminum, black

Over-Pressure Limit

25% of full scale value

Accuracy

 ±2.5%

Welding

Tin welding

Enclosure Rating

IP52

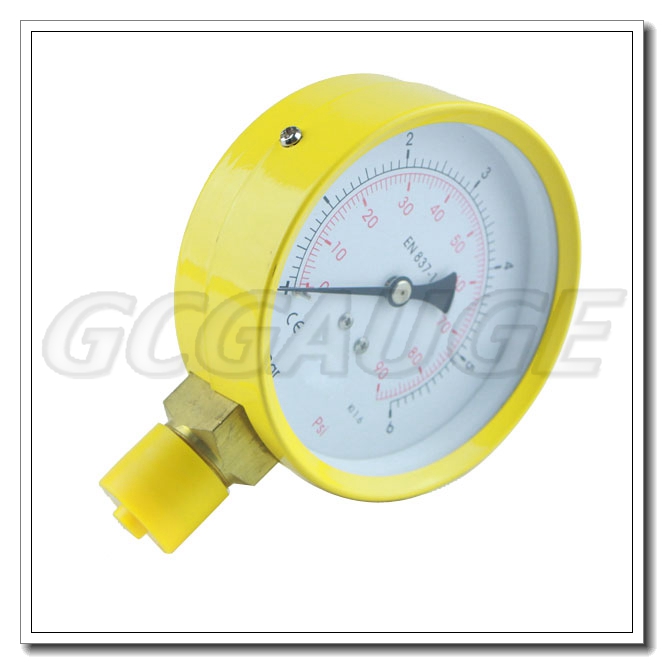

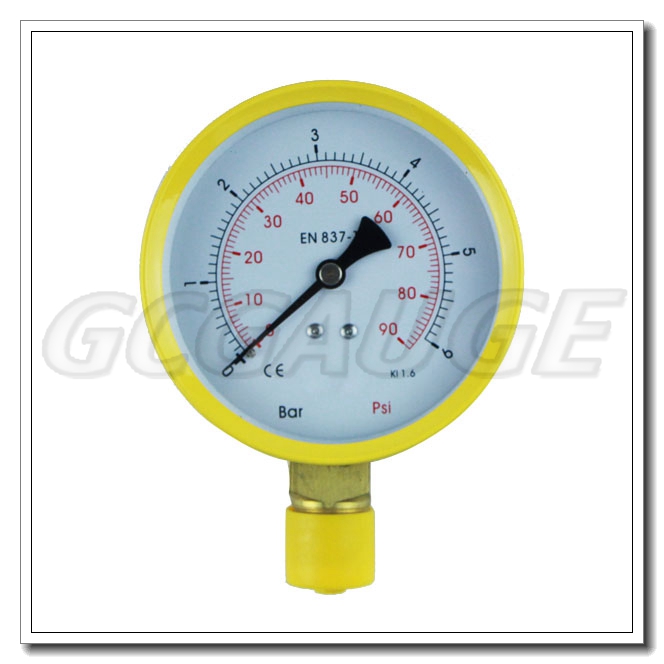

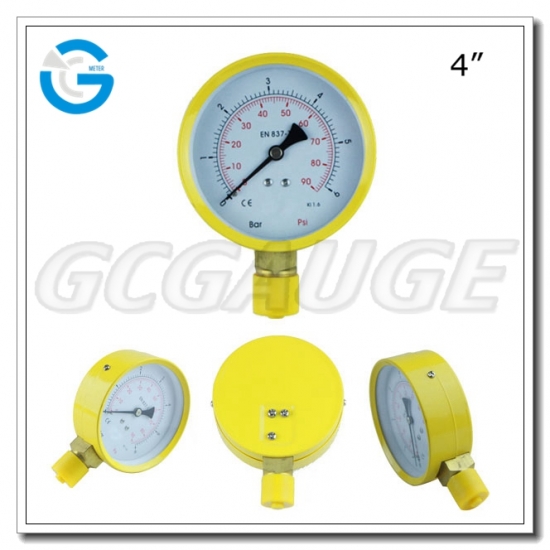

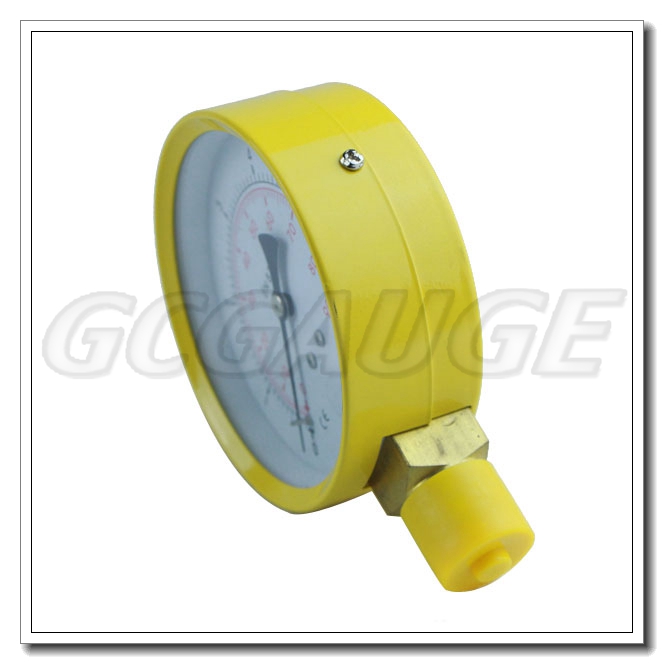

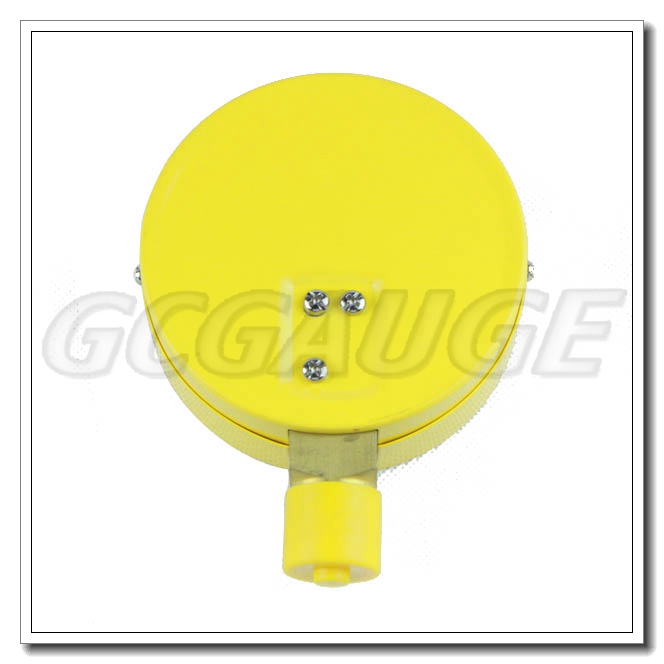

Product Pictures:
