Capillary types thermometers with 4 inch dial stainless steel case flange type

  • Stainless steel
  • Stainless steel 304/316/316L
  • EN837-1or DIN
  • ISO9001
  • 100% Inspection
  • Lower or back entry;panel mount or surface mount.

Detail

Capillary types thermometers with 4 inch dial stainless steel case flange type


Brief:



For bimetallic thermometers, we have crimped type temperature gauge, bayonet type temperature gauge for your choice, also there're bottom connection , back connection and adjustable connection for option , 63mm and 100mm with option of panel mount or surface mount, 40mm, 50mm, 63mm with option of U-clamp with stainless steel crimped ring.


Application & Features:



l  An economical vapour thermometer for remote reading applications

l  Stainless steel or black steel case

l  Vapour actuated

l  Panel mounted (Front Flange or U-Clamp)

l  Dual scale (°F & °C)

l  9 feet capillary length

l Freezers, walk-in refrigeration units, food storage cabinets, heating and ventilation. Widely specified in the HVAC, commercial and mechanical industry segments


Specifications:




Dial

Aluminum, painted white with black markings

pointer

Aluminum, painted black

Case/Ring

4” (100mm): SS front flange, or U-Clamp case
2.5” (63mm): SS front flange, SS or steel painted black U-Clamp case

Welding

Silver alloy

Lens

Plexiglass

Bourdon Tube

Phosphor bronze

Capillary

9 feet (3m) nickel plated brass

Operating Temperature

maximum 75% of full scale value

Bulb

Stainless steel

Accuracy

±2.5% of full scale

Movement

Brass

Enclosure Rating

IP52

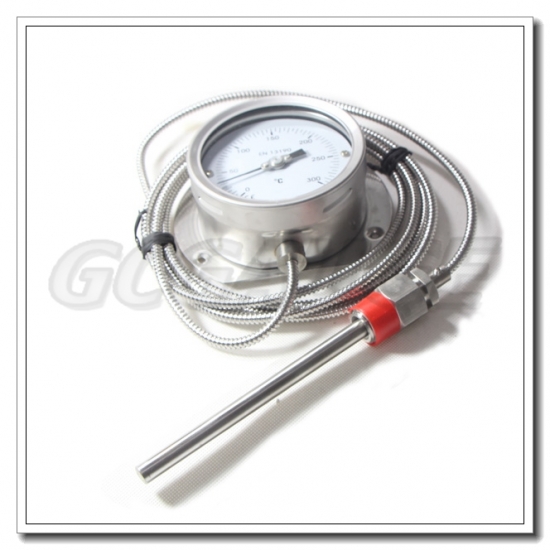

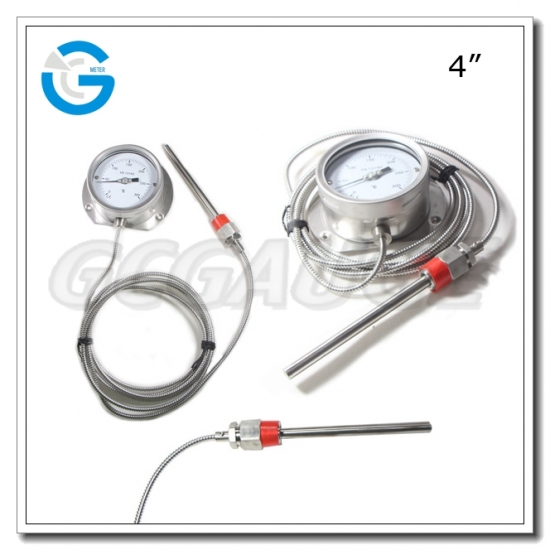

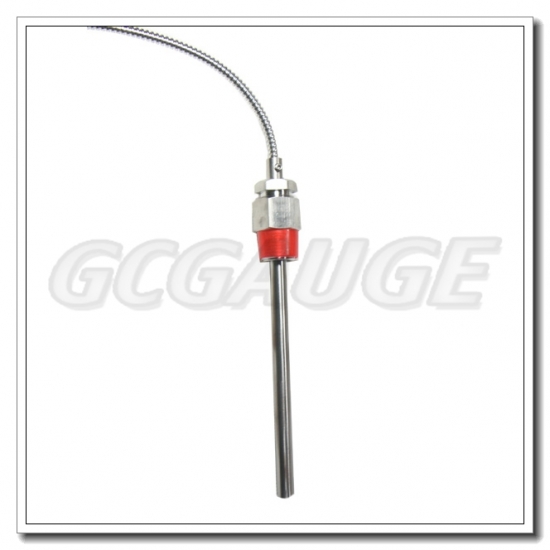

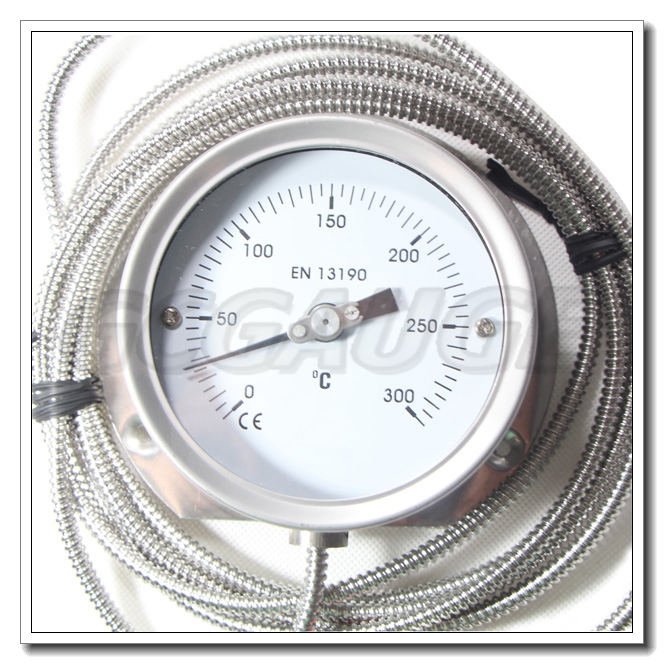

Product Pictures:
