Micro pressure gauges 28mm 150PSI

  • Copper Alloy
  • ISO9001
  • 100% Inspection

Detail


Micro pressure gauges 28mm 150PSI


Brief:



For mini pressure gauges, we also have many type gauges ,such as chrome-plated body, Polycarbonate body, luminous gauges ,etc.


Application & Features:



• Reliable, small diameter, low profile gauge

• 1"  sizes

• 1/8" NPT back socket

• Safety over-pressure port on the lens

• Commonly used on portable pneumatic equipment such as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers



Specifications:




Normal Size:

1”

Body:

copper alloy

Dial:

Aluminum material, with stop pin

Pointer:

Aluminum material, colour finished

Connector:

copper alloy, 1/8”,1/4” NPT, BSP

Pressure Element:

Phosphor bronze

30”Hg(vacuum) to 1000PSI in C-form

Range >1500PSI in helical

Welding:

tin alloy

Silver alloy for pressure > 3000psi(200bar)

Movement:

copper alloy

Pressure range:

vacuum to 6000psi/400bar

Scale angle:

250-270 depend on the pressure gauge

Accuracy:

+/-4.0% of full scale

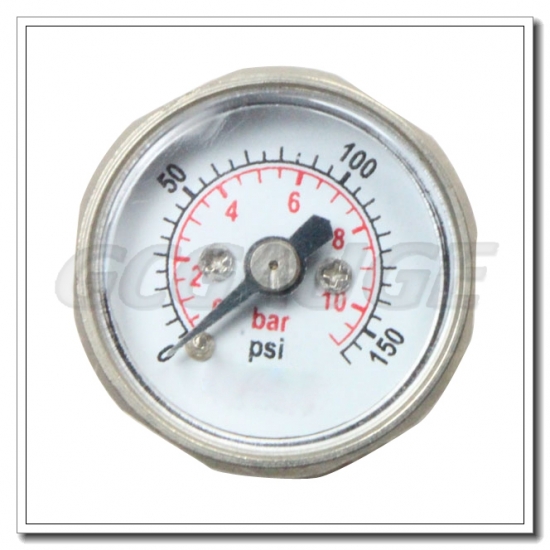

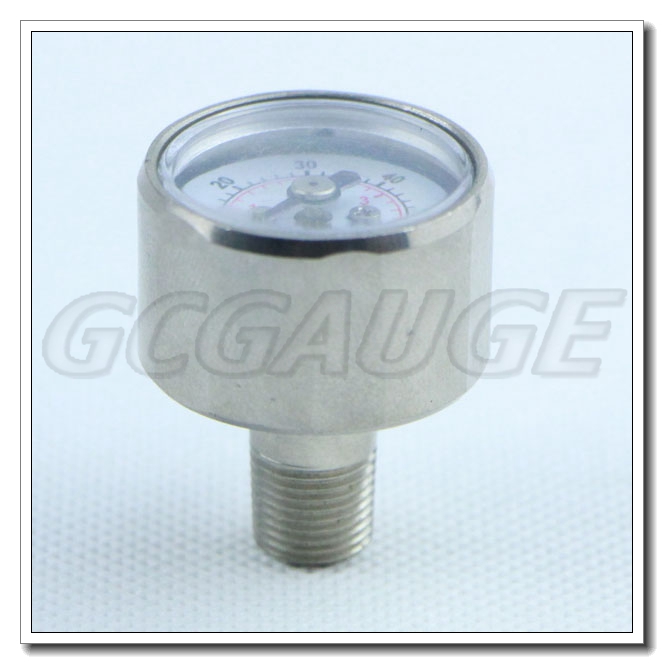

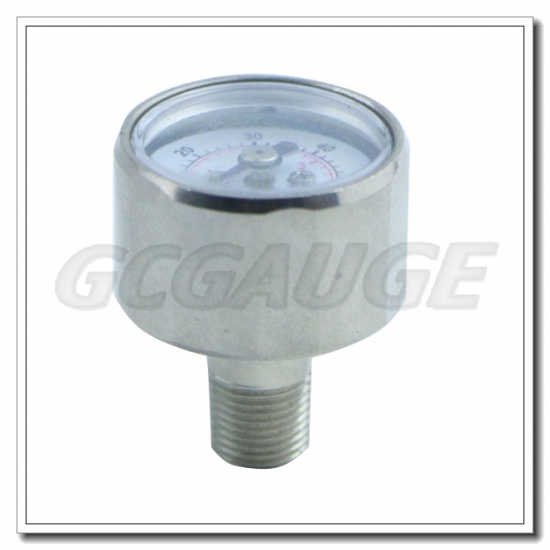

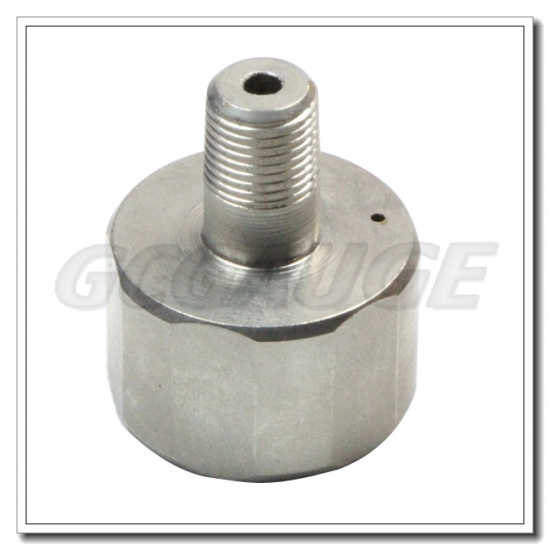

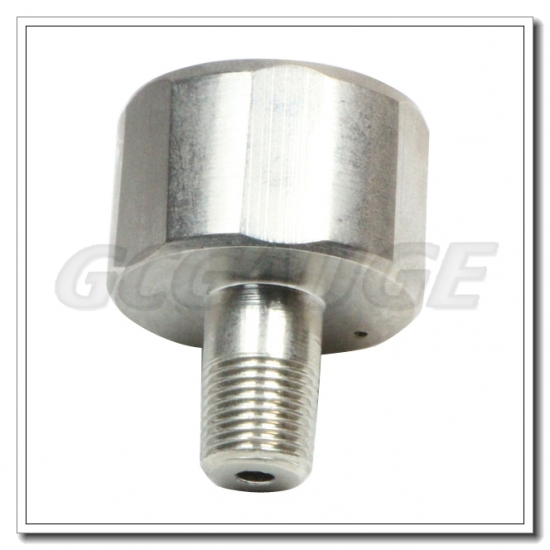

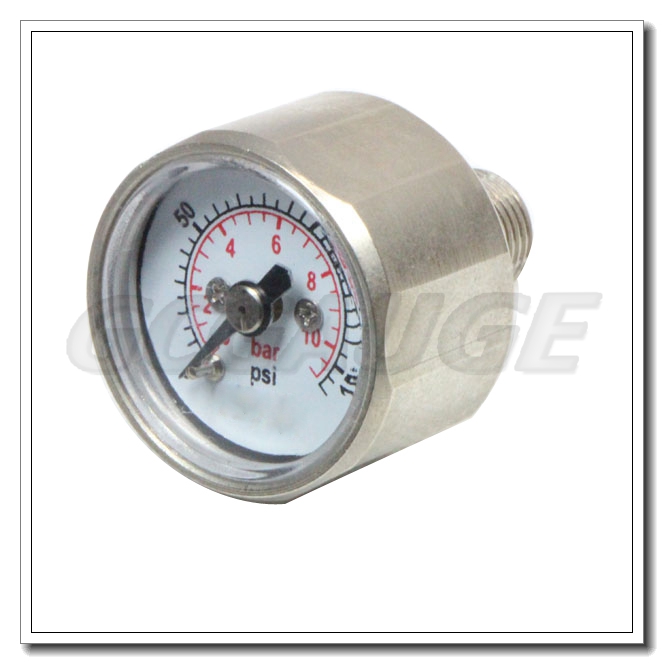

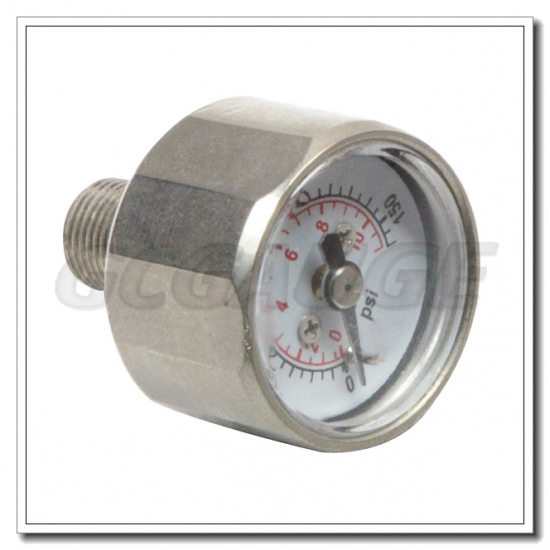

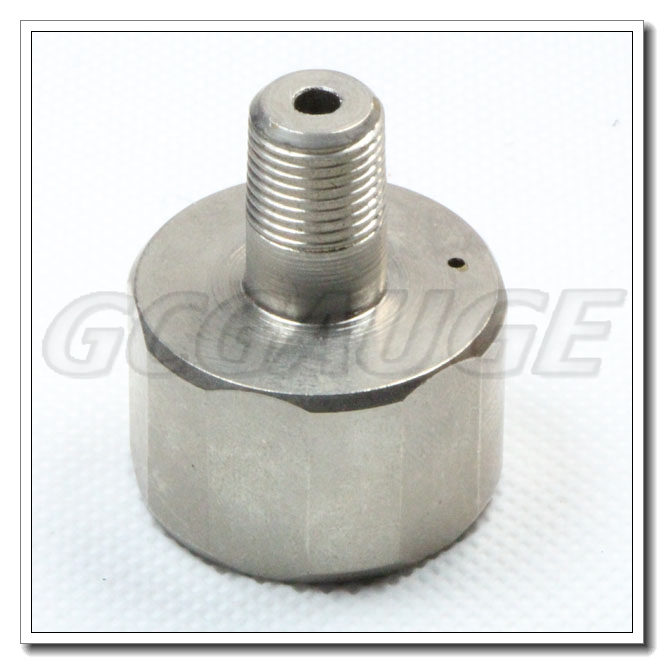

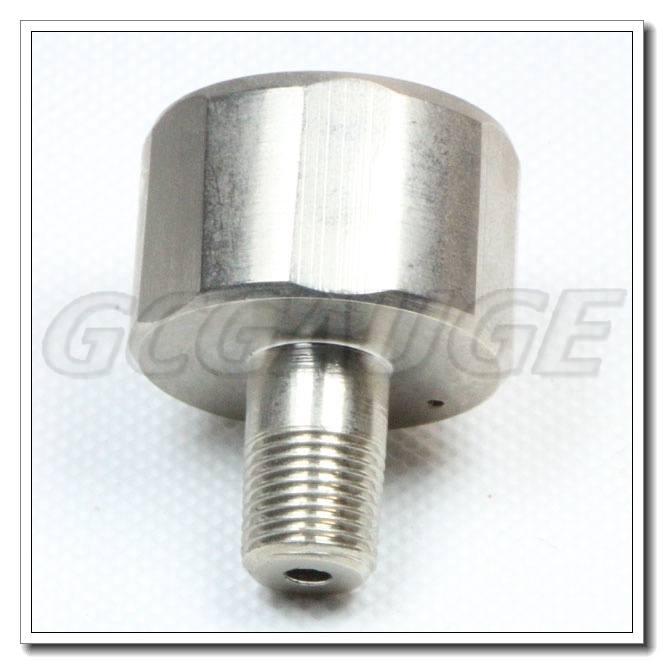

Product Pictures:














Dimension:
