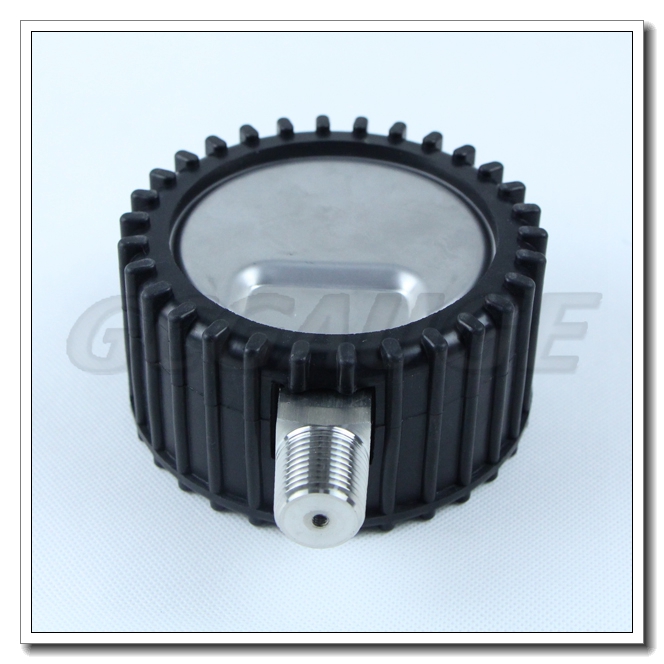

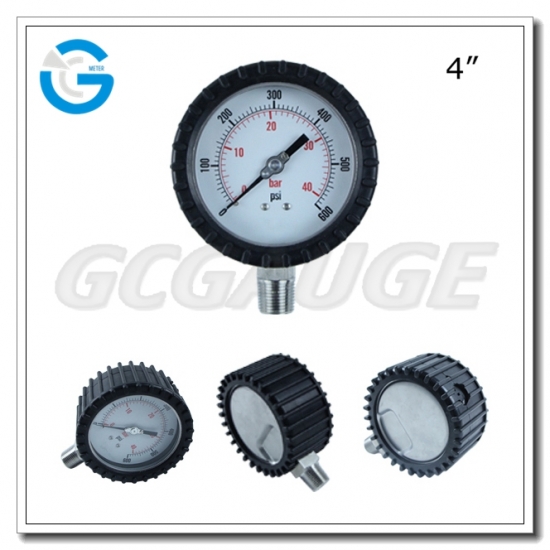

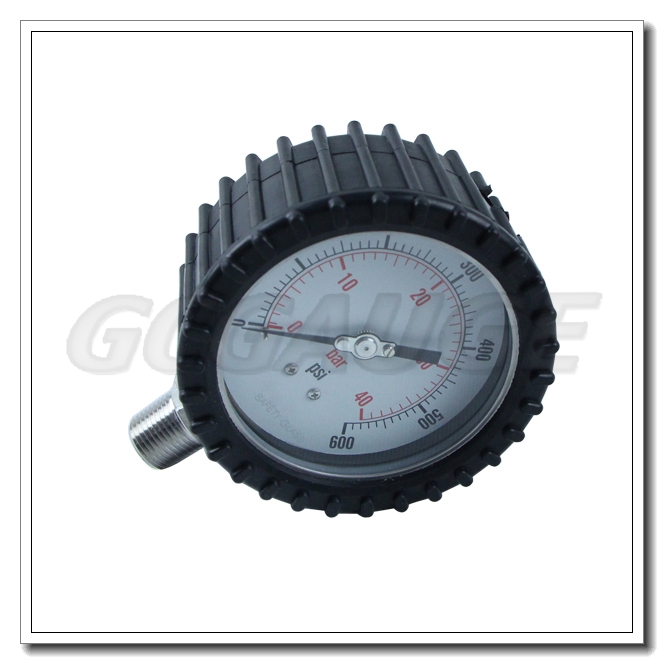

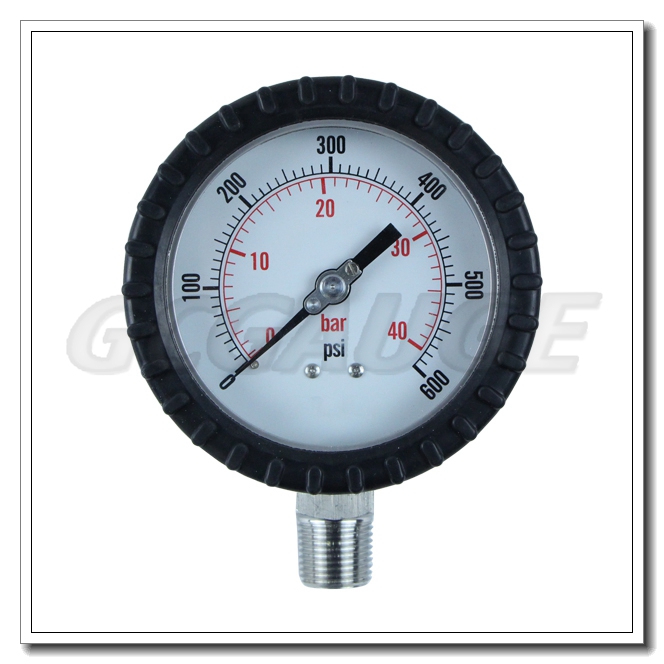

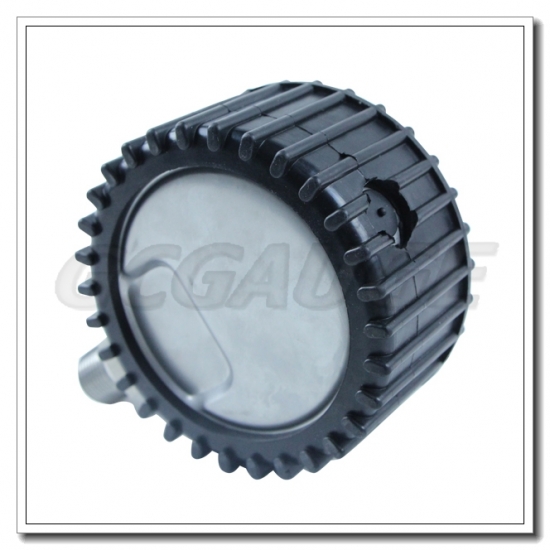

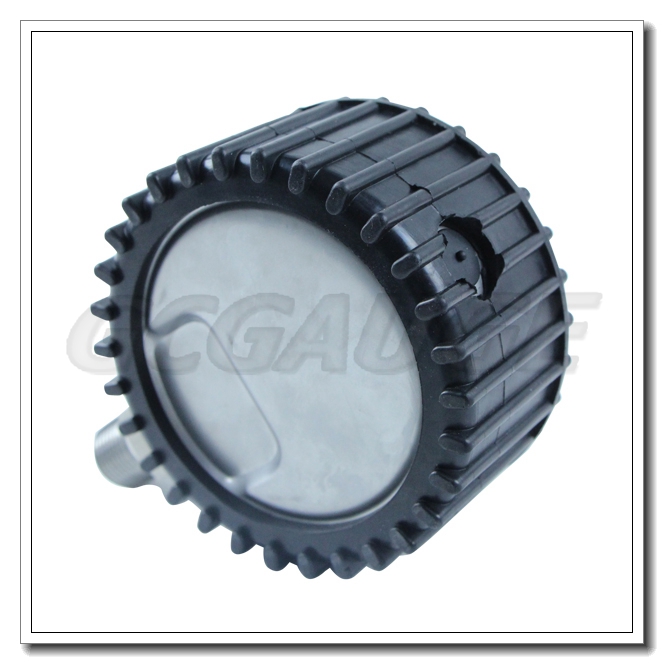

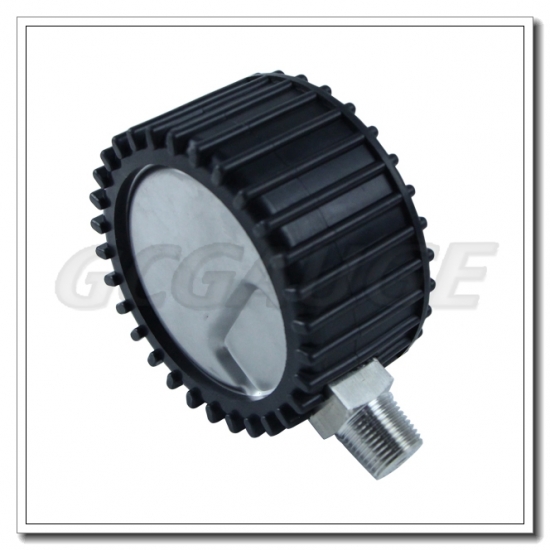

Pressure gauge with rubber boot/protector
Brief:
For pressure gauge with rubber boot, 2.5" and 4" is available.
Application & Features:
• Use where harmful vibration and pulsation are present
• Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
• Gaseous, liquid, and corrosive media corrosive environment
• Lower or back entry, panel mount or surface mount
Specifications:
|
Dial: |
1.5", 2", 2.5", 4",6",8"10" |
|
Scale ranges: |
-1 to 1000bar |
|
Accuracy class: |
1.6%(≤63):1.0%(≥100,150,200) |
|
Process connection: |
1/8”,1/4",1/2"NPT OR BSP |
|
Burdon tube: |
316LSS,drawn seamless |
|
Wetted parts/socket: |
Stainless steel 304 or 316 or 316L |
|
Movement: |
316SS or 304SS |
|
Pointer: |
Aluminum, micrometer adjustable for option |
|
Welding: |
TIG Welding, Laser Welding |
|
Case material: |
Stainless steel 304, DIN bayonet ring or crimped bezel |
|
Window(lens): |
Safety glass, tempered glass or pc |
|
Fill: |
Glycerin or Silicone |
|
IP class: |
IP 65 |
Dimension:
Leave A MessagePressure gauge types with 2.5 inch dial all stainless steel material bayonet ring, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
2" All stainless steel bottom entry oil gauges, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
2.5" All stainless steel crimp ring oil filled pressure gauges, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
Bourdon tube liquid filled stainless steel pressure gauges with 4inch 100mm dial bottom connection, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
6" All stainless steel bayonet ring oil pressure test gauges, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
8" Stainless steel gauges, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
4" All stainless steel crimp ring hydraulic oil pressure gauges, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
10" All stainless steelcustom pressure gauges, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
