Spiral tube manometer

Spiral tube manometer,which is used for medical systems.


    Notice: Undefined index: attrprice in /home/gaugechi/gauge-china/application/modules/front/views/helpers/Productattrvalue.php(2) : eval()'d code(1) : eval()'d code(1) : eval()'d code on line 24

  • Case material:

    Stainless steel

  • Wetted Parts:

    Brass

  • Certification:

    ISO9001

  • Quality:

    100% Inspection
Share To :
Inquire Now
Categories
New Products
  • Product Details

Spiral tube manometer


Brief:

For medical oxygen pressure gauges, we have UL certification available for 1.25" and 1.5" 3000psi pressure scale.


Application & Features:

• Reliable, small diameter, low profile gauge

• 1.25" , 1.5"  sizes

• 1/8" NPT back socket

• Safety over-pressure port on the lens

• "Use No Oil" for use in oxygen service

• UL Listed for 1.25” 3000psi ,UL number:SA32781

• Commonly used on portable pneumatic equipment such as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers



Specifications:

Dial

1.25” or 1.5” white aluminum with black markings

Case

304 SS

Lens

Plexiglass

Spiral Tube

phosphor bronze or  Stainless steel316L

Connection

1/8” NPT standard, back

pointer

3000 psi and below: Brass

Over-Pressure Limit

10% of full scale value

Working Pressure

10% of full scale value

Ambient

-40°F to 150°F (-40°C to 65°C)

Accuracy

±3-2-3% ANSI/ASME Grade B

Enclosure Rating

IP65

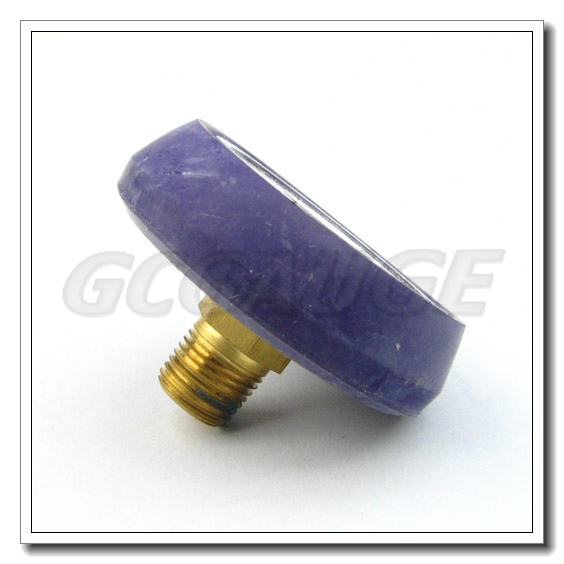

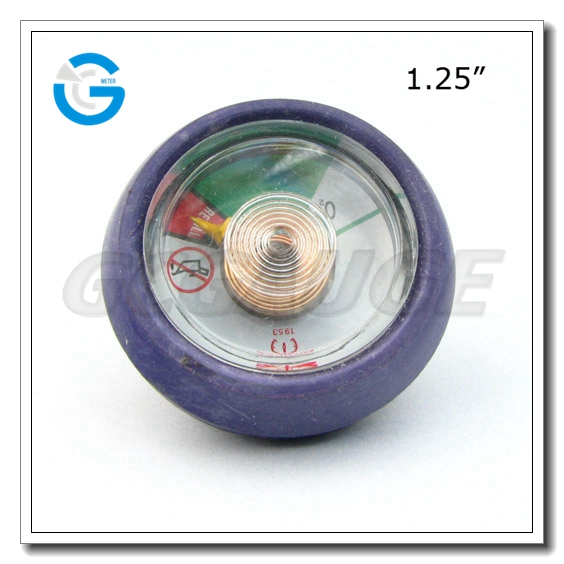

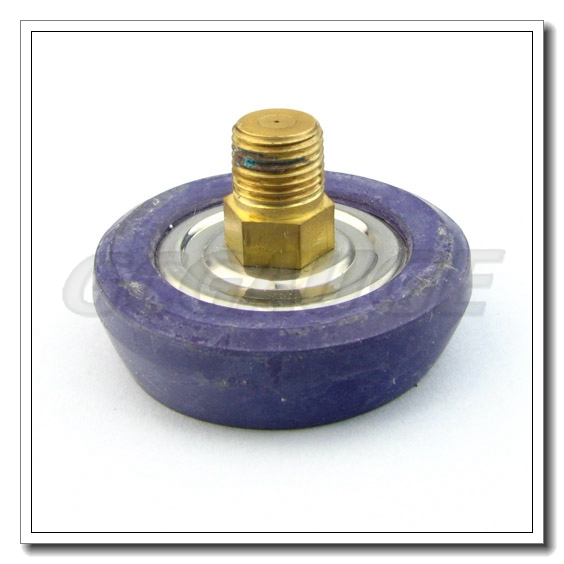

 Product Pictures:


Dimension:
