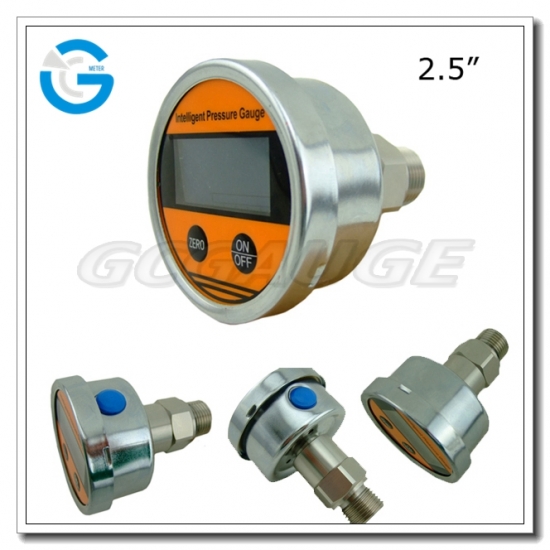

2.5" All stainless steel back connection precision digital pressure gauges

2.5" All stainless steel back connection precision digital pressure gauges, which is used for high precision working conditions.

  • Case material:

    Stainless steel
  • Wetted Parts:

    Stainless steel 304/316/316L
  • Standard:

    EN837-1or DIN
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
  • Options/Notes:

    Lower or back entry;panel mount or surface mount.
Share To :
  • Product Details

2.5" All stainless steel back connection precision digital pressure gauges


Brief:

For digital pressure gauges, we havebottom connection digital pressure gaugesand back connection, also stainless steel and plastic case for your choice.


Application & Features:

• LCD display, high resolution, without apparent value error

•Peak value recording function, record the max. pressure value during measuring process

• Pressure percentage dynamic demonstration (progress strip demonstration)

• Selectable ranges: MPa, psi, bar, kPa, kg/cm2

• 1~15min automatic turn-off function

• Micro power loss function, can work above 2 years in the electricity saving pattern

• Parameter revision function, can revise the gauge's zero error on the spot

• Limit the upper and lower range

• Sampling rate: 4 times / sec

• Applicable to a variety of gases and liquids compatible with stainless steel pressure measurement



Specifications:

Dial

2.5”, 4”

Case

Stainless steel or plastic

Pressure type

Gauge pressure

Scale range:

-0.1~0~600bar

Accuracy level

0.25%FS, 0.5%FS

Display range:

-1999-9999

Overload pressure

200%

Stability

≤0.1% /year

Battery voltage

9VDC

Display:

LCD

Ambient temperature:

 -10℃~60℃

Relative humidity:

≤80%

Mounting thread

NPT1/4

Interface material:

Stainless steel

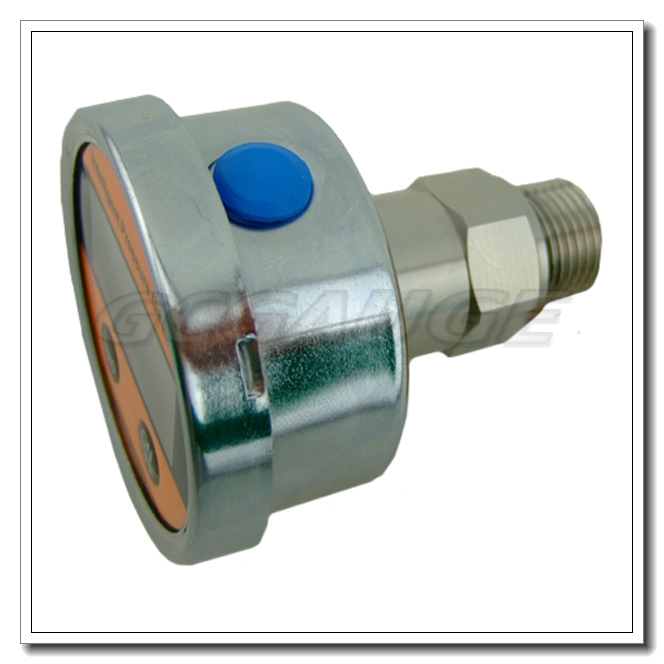

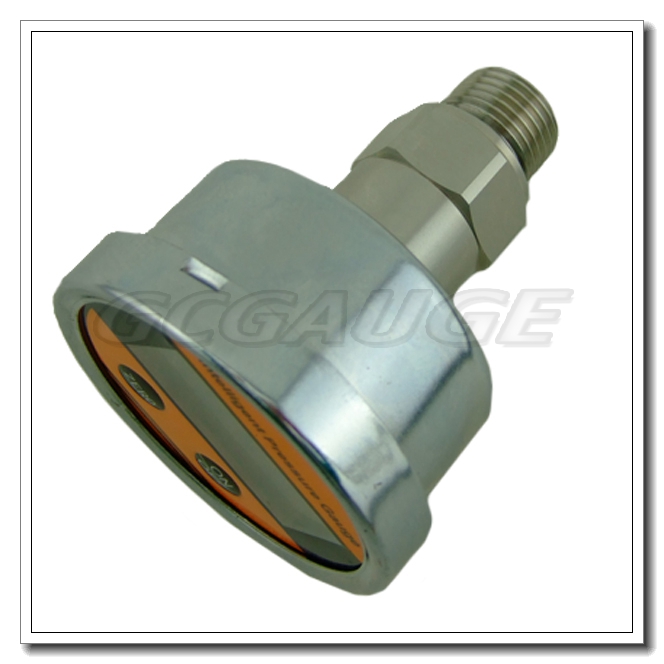

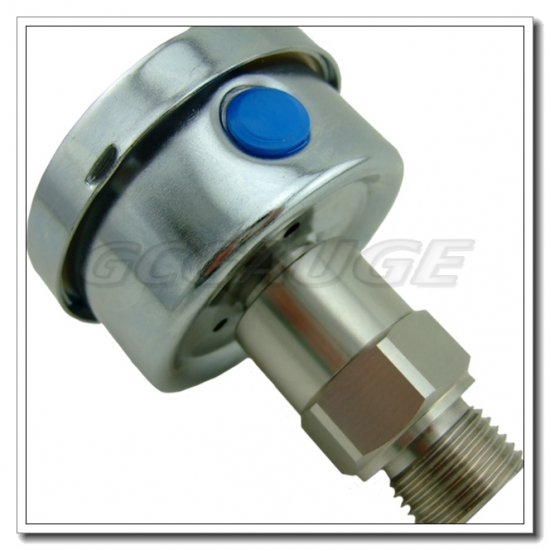

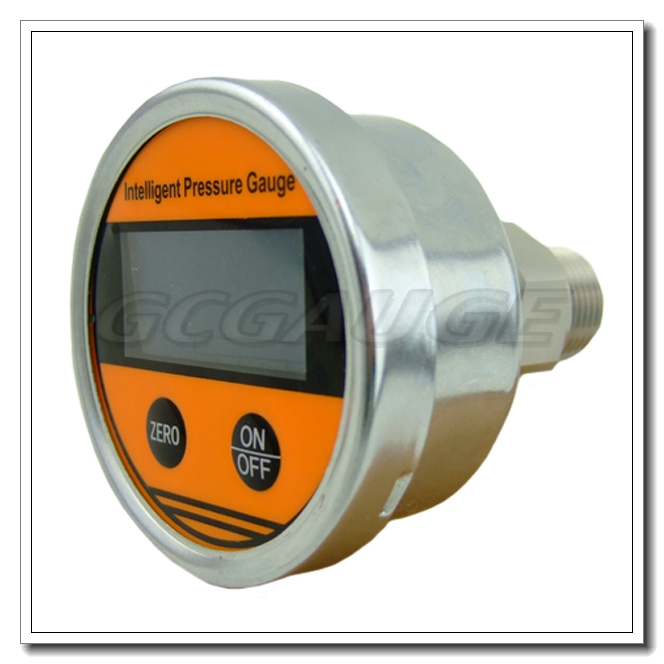

Product Pictures:

Our company's main products include: Economy Pressure Gauge, All Stainless Steel Pressure Gauge, Electric Contact Pressure Gauge, Capsule Low Pressure Gauge, Vacuum Gauge, Oxygen Medical Pressure Gauge, High Pressure Gauge, Spiral Miniature Pressure Gauge, Fire Extinguisher Gauge, Medical Instrument, Diaphragm Pressure meters, Differential Pressure Gauges, Industrial Glass Thermometers, Bimetal Thermometers ,Transmitter, Flow meters ,etc. Continually developing more and more products to adapt to the different requirements from the customers.

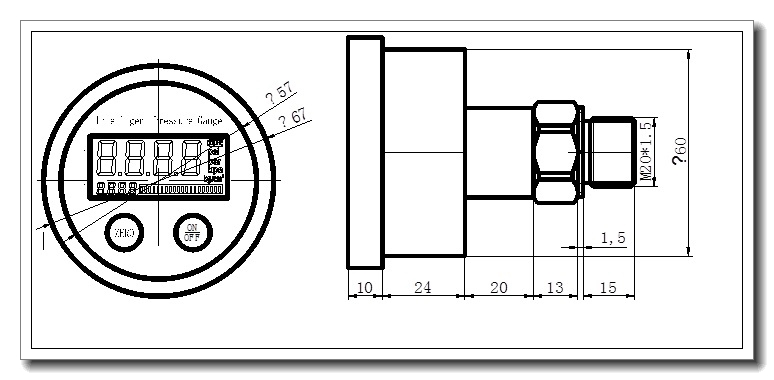

Dimension:
