Digital Pressure Gauges

/2.5 Inch digital vacuum gauges with flange

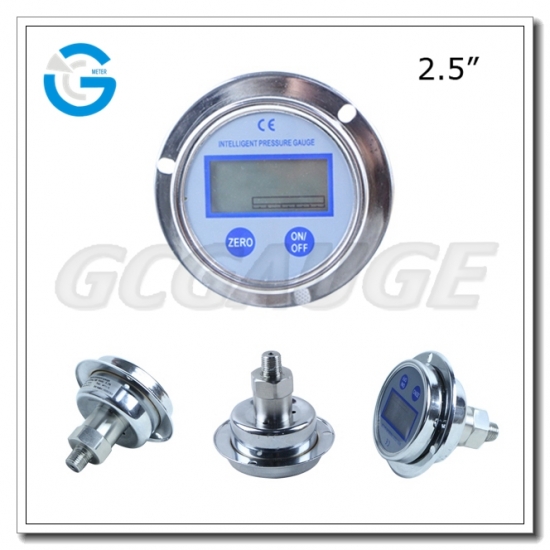

2.5 Inch digital vacuum gauges with flange

2.5 Inch digital vacuum gauges with flange,which is used for high precision working conditions.

  • Case material:

    Stainless steel
  • Wetted Parts:

    Stainless steel 304/316/316L
  • Standard:

    EN837-1or DIN
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
  • Options/Notes:

    Lower or back entry;panel mount or surface mount.
Share To :
New Products
  • Product Details

 2.5 Inch digital vacuum gauges with flange


Brief:

For digital pressure gauges, we have bottom connection and back connection, also stainless steel and plastic case for your choice.


Application & Features:

• LCD display, high resolution, without apparent value error

•Peak value recording function, record the max. pressure value during measuring process

• Pressure percentage dynamic demonstration (progress strip demonstration)

• Selectable ranges: MPa, psi, bar, kPa, kg/cm2

• 1~15min automatic turn-off function

• Micro power loss function, can work above 2 years in the electricity saving pattern

• Parameter revision function, can revise the gauge's zero error on the spot

• Limit the upper and lower range

• Sampling rate: 4 times / sec

• Applicable to a variety of gases and liquids compatible with stainless steel pressure measurement



Specifications:

Dial

2.5”, 4”

Case

Stainless steel or plastic

Pressure type

Gauge pressure

Scale range:

-0.1~0~600bar

Accuracy level

0.25%FS, 0.5%FS

Display range:

-1999-9999

Overload pressure

200%

Stability

≤0.1% /year

Battery voltage

9VDC

Display:

LCD

Ambient temperature:

 -10℃~60℃

Relative humidity:

≤80%

Mounting thread

NPT1/4

Interface material:

Stainless steel

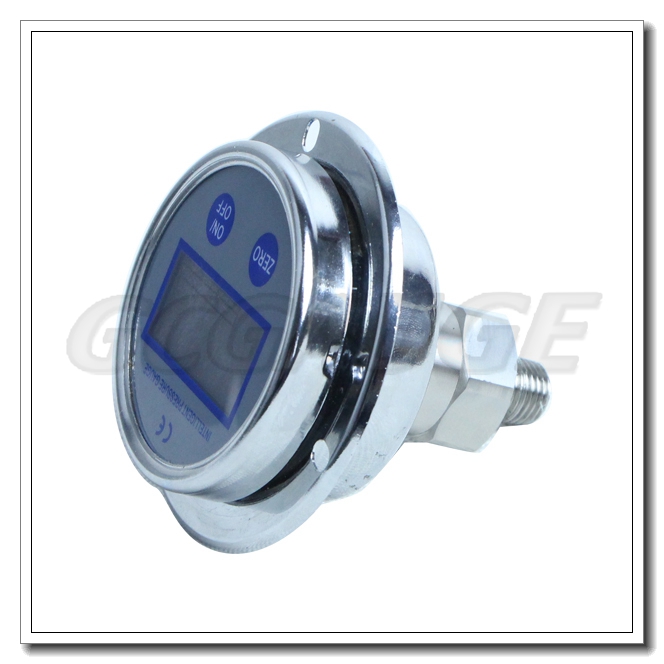

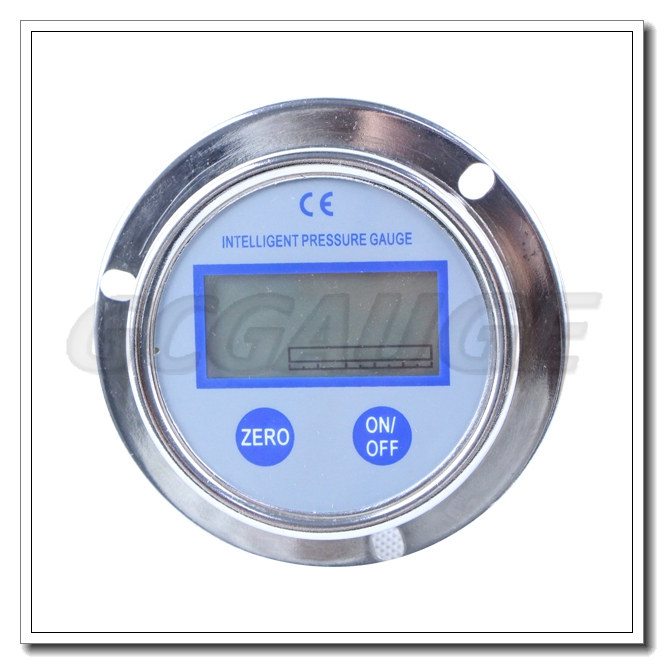

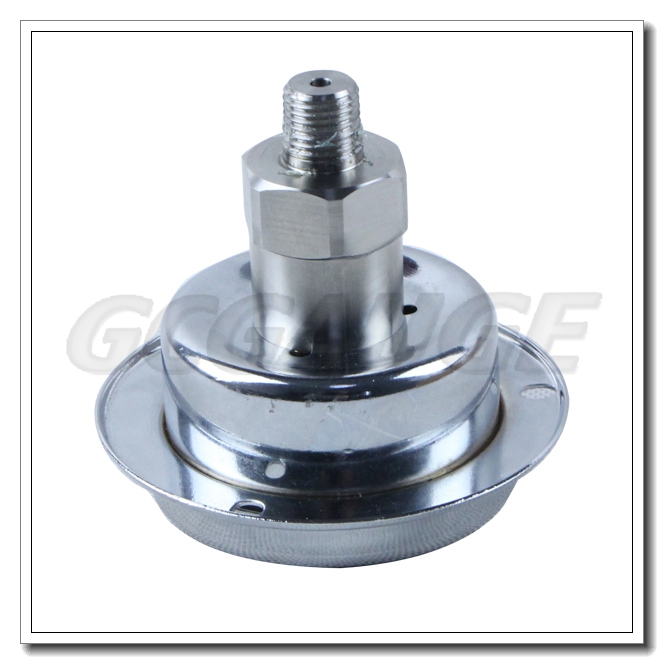

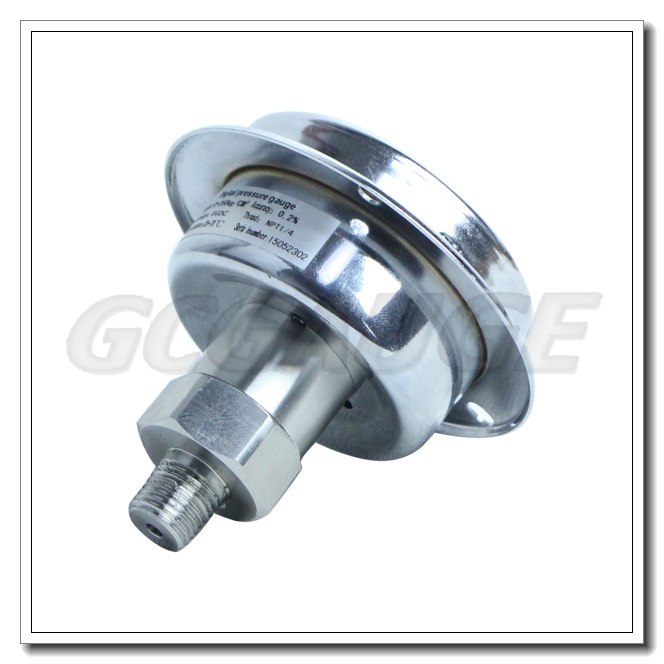

Product Pictures:

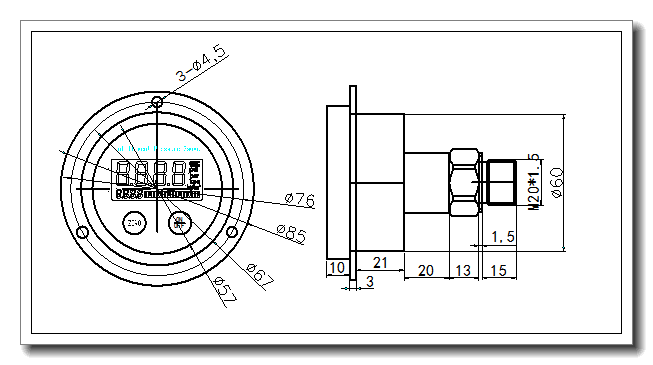

Drawing:
