High quality LUGB vortex flowmeters

High quality LUGB vortex flowmeters, Allrounder with integrated pressure and temperature compensation.
  • Case material:

    Stainless steel
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
Share To :
  • Product Details

High quality LUGB vortex flowmeters


Brief:

Allrounder with integrated pressure and temperature compensation


Application & Features:

Vortex flowmeters are suitable for a wide range of media. This is particularly true of the KIO OPTISWIRL:


It measures both conducting and non-conducting liquids as well as all industrial gases. It also measures saturated steam and superheated steam, compressed air and nitrogen, liquefied gas and flue gas, demineralized water and boiler feed water, solvents and heat transfer oil.


The even masters fluctuating pressures and temperatures thanks to integrated pressure and temperature compensation.

  • Integrated pressure and temperature compensation
  • Temperature compensation for saturated steam is a standard feature
  • All devices feature 2-wire technology
  • Excellent long-term stability thanks to sturdy construction
  • High measuring accuracy
  • Maintenance-free sensor
  • Non-wearing, fully-welded stainless steel construction with high resistance to corrosion, pressure and temperature
  • Intelligent Signal Processing (ISP) ensures maximum measurement reliability and stability
  • Instantly ready for operation (plug & play)


Specifications:


Pipe size

  25-300mm

Accuracy

 liquid±1.0%gas±1.5%

Output

 two way 4-20mAthree way 4-20mA

Power

  3.6V battery、+12VDC、+24VDC

Working Pressure

  0-2.5Mpa.

Pressure Lose

 △P=1.1xrxV²

Sensor Material

 1Cr18Ni9Ti

Temperature

  -20℃~+250℃;high temperature type:-20℃~350℃

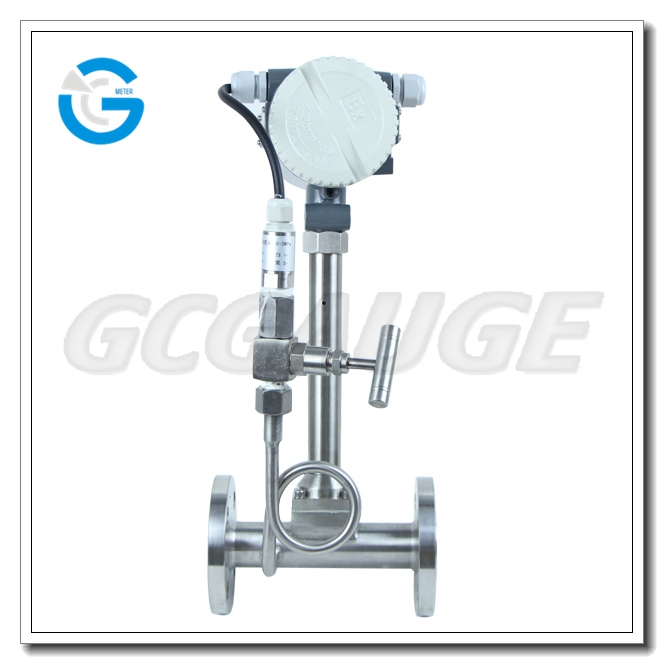

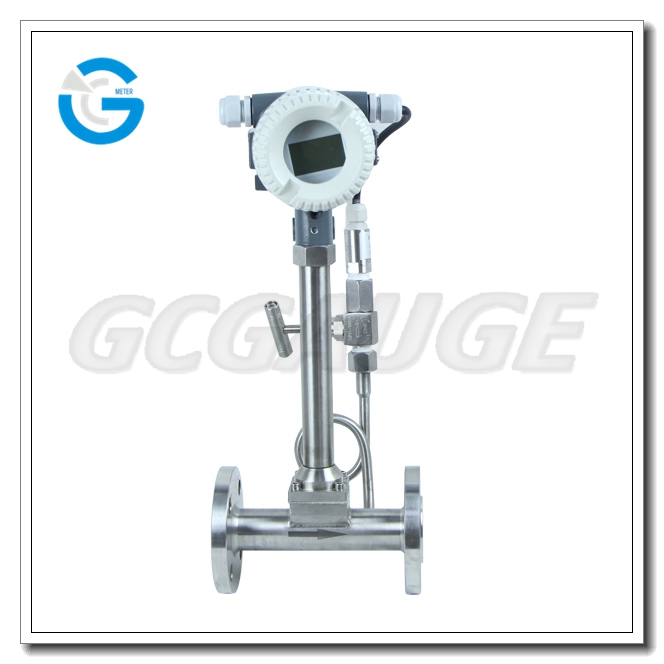

Product Pictures:
