Home /Pressure Gauge Series /

Economy Pressure Gauges

/2" Economy black steel radial connection bar pressure gauge with press-in style

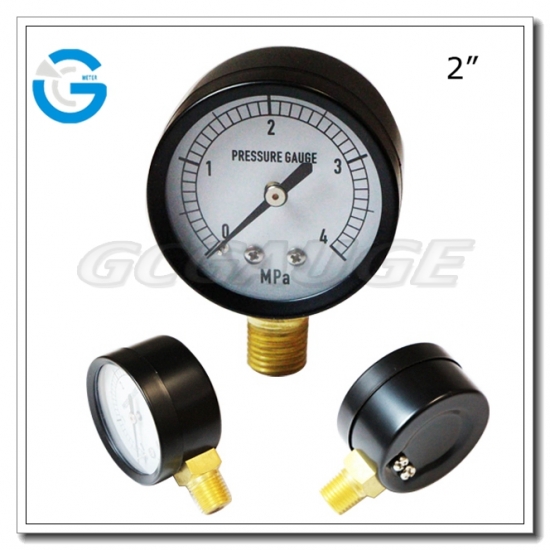

2" Economy black steel radial connection bar pressure gauge with press-in style

2" Economy black steel radial connection bar pressure gauge with press-in style, which is used in plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors
  • Case material:

    Black steel
  • Wetted Parts:

    Brass
  • Standard:

    EN837-1or DIN
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
  • Options/Notes:

    Lower or back entry;panel mount or surface mount.
Share To :
New Products
  • Product Details

2" Economy black steel radial connection bar pressure gauge with press-in style


Brief:

For economy pressure gauges, we have snap-in plastic lens type, screw lens type, plating flipping type(chromed ring) , press-in lens type, wika bayonet type for your choice, also we have bottom mounting and back mounting , 63mm and 100mm with option of panel mount pressure gauge or surface mount, 40mm, 50mm, 63mm with option of U-clamp with stainless steel crimped ring.


Application & Features:

• Most economical, all-purpose pressure gauge

 • 1.5" (40mm) to 4" (100mm) sizes

 • Snap-in rings

 • Black steel or ABS case

 • Brass wetted parts

 •Gaseous and liquid media

 •Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM



Specifications:

Dial

1.5” (40mm), 2” (50mm), 2.5” (63mm), 4” (100mm)

Case

Steel, painted black (plastic available)

Lens

Polycarbonate

Ring

Snap-in Ring

Socket

Brass

Connection

1/8”NPTor 1/4”NPTstandard

Bourdon Tube

Phosphor bronze

Movement

Brass

Pointer

Aluminum, black

Over-Pressure Limit

25% of full scale value

Accuracy

 ±2.5%

Welding

Copper alloy

Enclosure Rating

IP52



 Product Pictures:
