2.5" Economy black steel back connection plating flipping cheap manometer

2.5" Economy black steel back connection plating flipping cheap manometer, which is used in plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors.
  • Case material:

    Black steel
  • Wetted Parts:

    Brass
  • Standard:

    EN837-1or DIN
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
  • Options/Notes:

    Lower or back entry;panel mount or surface mount.
Share To :
New Products
  • Product Details

2.5" Economy black steel back connection plating flipping cheap manometer


Brief:

For economy pressure gauges, we have snap-in plastic lens type, screw lens type, plating flipping type(chromed ring) , press-in lens type, wika bayonet type for your choice, also we have bottom mounting and back mounting , 63mm and 100mm with option of panel mount or surface mount, 40mm, 50mm, 63mm with option of U-clamp with stainless steel crimped ring.


Application & Features:

 • Most economical, all-purpose pressure gauge

 • 1.5" (40mm) to 4" (100mm) sizes

 • Friction bezel rings

 • Black steel case

 • Brass wetted parts

 •Gaseous and liquid media

 •Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM



Specifications:

Dial

1.5” (40mm), 2” (50mm), 2.5” (63mm), 4” (100mm)

Case

Steel, painted black (plastic available)

Lens

Polycarbonate

Ring

Steel, painted black, chrome plated

Socket

Brass

Connection

1/8”NPTor 1/4”NPTstandard

Bourdon Tube

Phosphor bronze,

Movement

Brass

Pointer

Aluminum, black

Over-Pressure Limit

25%

Accuracy

 ±2.5%

Welding

Copper alloy

Enclosure Rating

IP52

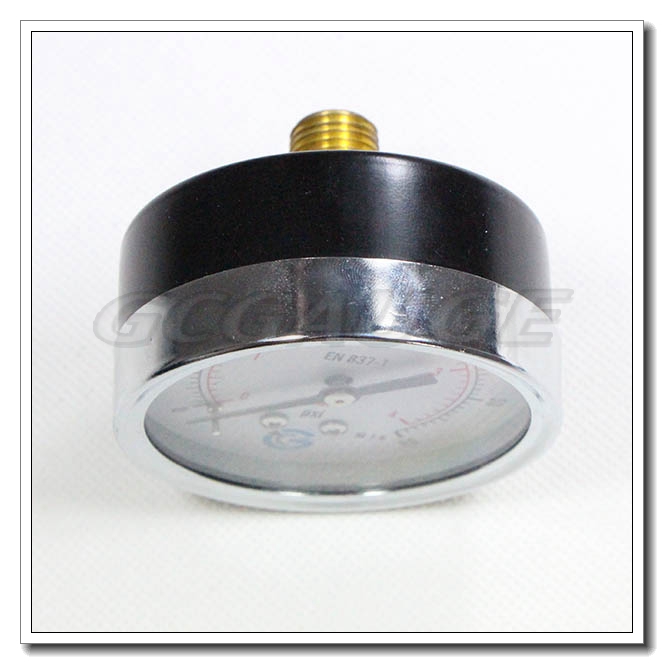

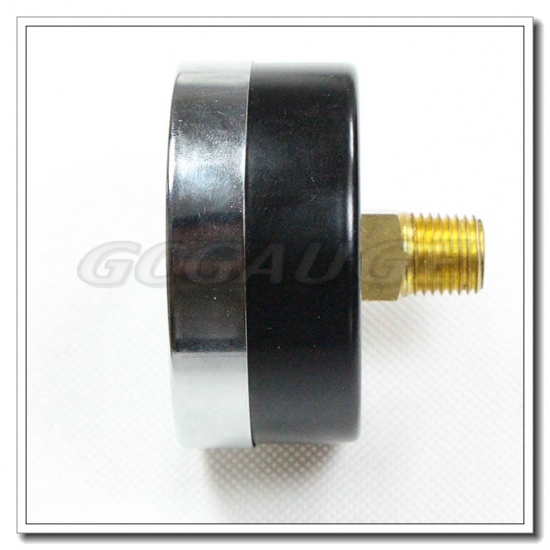

 Product Pictures:

Our company's main products include: Economy Pressure Gauge, All Stainless Steel Pressure Gauge, Electric Contact Pressure Gauge, Capsule Low Pressure Gauge, Vacuum Gauge, Oxygen Medical Pressure Gauge, High Pressure Gauge, Spiral Miniature Pressure Gauge, Fire Extinguisher Gauge, Medical Instrument, Diaphragm Pressure meters, Differential Pressure Gauges, Industrial Glass Thermometers, Bimetal Thermometers ,Transmitter, Flow meters ,etc. Continually developing more and more products to adapt to the different requirements from the customers.


Dimension:
