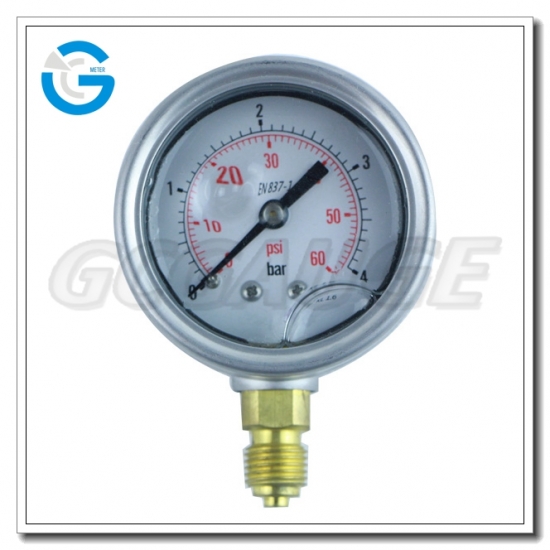

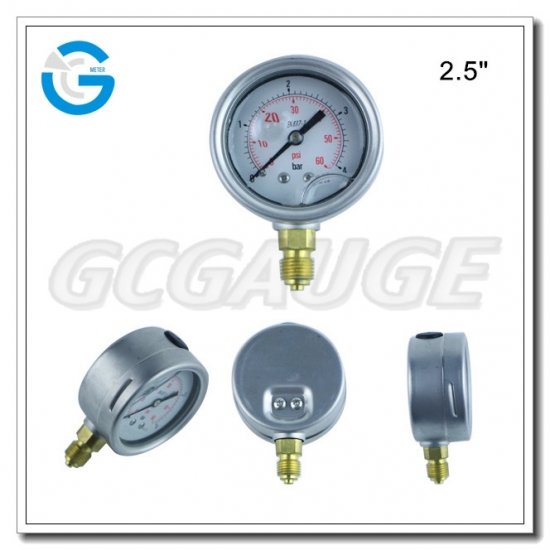

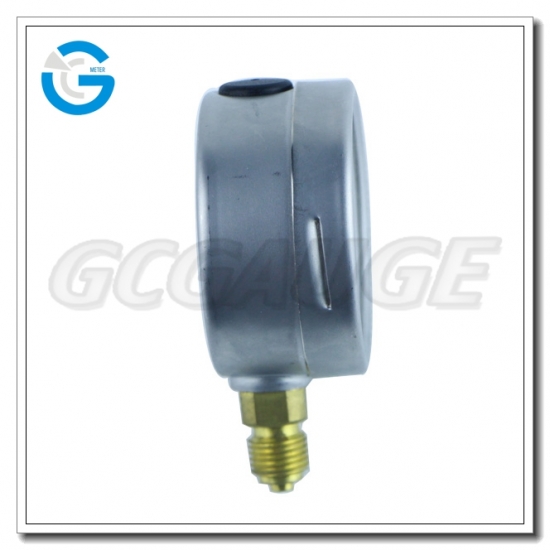

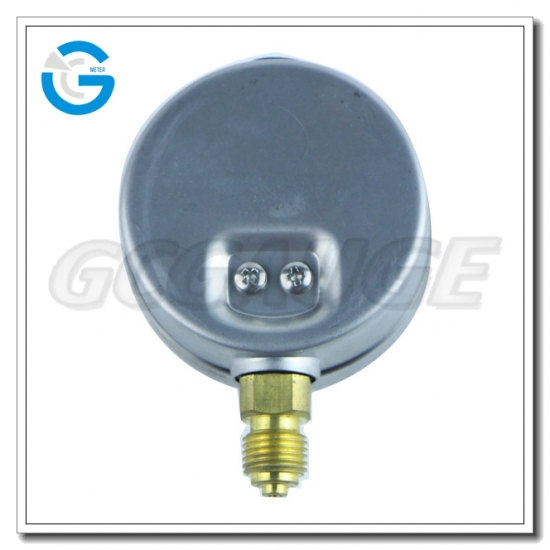

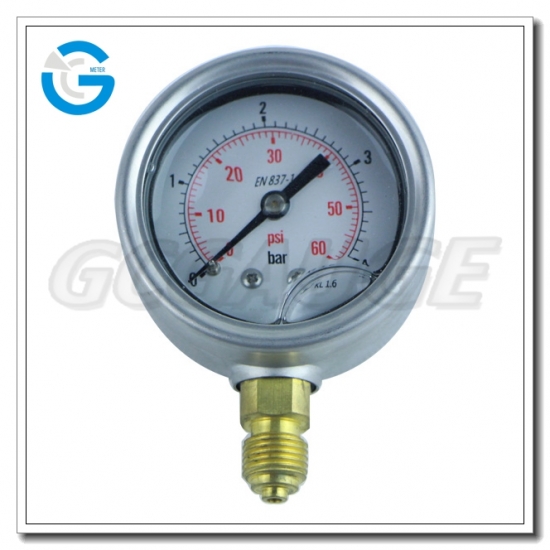

2.5 inch bottom connection bayonet ring pressure SS case brass internal gauges liquid,which is used forOutdoor and severe ambient and process conditions; Use where harmful vibration and pulsation are present.
Case material:
Stainless steelWetted Parts:
BrassStandard:
EN837-1or DINCertification:
ISO9001Quality:
100% InspectionOptions/Notes:
Lower or back entry;panel mount or surface mount.
2.5 inch bottom connection bayonet ring pressure SS case brass internal gauges liquid
Brief:
For SS Case Brass Internal Gauges, we have crimped type, wika bayonet type for your choice, also there're bottom connection liquid gauges , back connection liquid gauges for option. Regarding the size, we have 1.5” dial gauges, 2” dial gauges,2.5” dial gauges, 3” dial gauges, 4″ dial gauges, 6” dial gauges, 8" dial gauges, 10" dial gaugesfor your reference.
Application & Features:
• Use where harmful vibration and pulsation are prese
• Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
• Gaseous, liquid, and corrosive media corrosive environment
• Lower or back entry, panel mount or surface mount
Specifications:
|
Dial |
1.5”,2”,2.5”,3”,4″,6”,8",10"(40mm,50mm,63mm,75mm,100mm,150mm,200mm,250mm) |
|
Scale ranges |
-1/600bar |
|
Accuracy class |
1.6%(≤63mm);1.0%(＞63mm) |
|
Process connection |
1⁄4″(63mm),1⁄2″(100 mm or above )NPT or BSP or BSPT |
|
Bourdon tube |
Brass |
|
Wetted parts/socket |
Brass |
|
Movement |
Brass |
|
Pointer |
Aluminum, micrometer adjustable available |
|
Welding |
Sn Welding; Silver alloy Welding for high pressure series |
|
Case material |
Stainless steel 304,DIN bayonet bezel or crimped ring |
|
Window(lens) |
Tempered glass, pc or safety glass |
|
Fill |
Glycerin or silicone |
|
IP class |
IP 65 |
Dimension:
