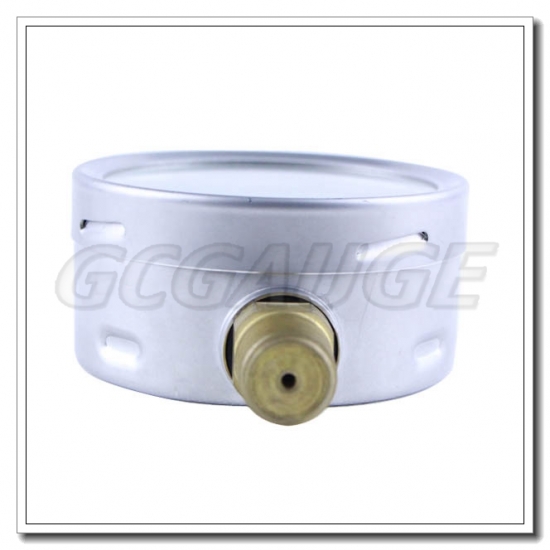

4 inch stainless steel c with bottom type bayonet ring
Brief:
For pressure gauges, we have2.5" pressure gaugesand 4" for your choice.
Application & Features:
• Use where harmful vibration and pulsation are present
• Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
• Gaseous, liquid, and corrosive media corrosive environment
• Lower or back entry, panel mount or surface mount
Specifications:
|
Dial |
1.5”,2”,2.5”,3”,4″,6”(40mm,50mm,63mm,75mm,100mm,150mm) |
|
Scale ranges |
-1/600bar |
|
Accuracy class |
1.6%(≤63mm);1.0%(＞63mm) |
|
Process connection |
1⁄4″(63mm),1⁄2″(100 mm or above )NPT or BSP or BSPT |
|
Bourdon tube |
phosphor bronze |
|
Wetted parts/socket |
Brass |
|
Movement |
Brass |
|
Pointer |
Aluminum, micrometer adjustable available |
|
Welding |
Sn Welding; Silver alloy Welding for high pressure series |
|
Case material |
stainless steel 304,DIN bayonet or crimped ring |
|
Window(lens) |
tempered glass, pc or safety glass |
|
Fill |
Glycerin or silicone |
|
IP class |
IP 65 |
Product Pictures:
Dimension:
Leave A Message1.5 inch back connection crimped ring SS Case brass internal pressure gauges glycerine filled,which is used forOutdoor and severe ambient and process conditions; Use where harmful vibration and pulsation are present.
1.5 inch bottom connection crimped ring SS case brass internal gauges liquid filled which is used forOutdoor and severe ambient and process conditions; Use where harmful vibration and pulsation are present.
4 inch bottom connection bayonet ring SS case brass internal gauges liquid filled ,which is used forOutdoor and severe ambient and process conditions; Use where harmful vibration and pulsation are present.
2 inch bottom connection crimped ring pressure SS case brass internal gauges liquid,which is used forOutdoor and severe ambient and process conditions; Use where harmful vibration and pulsation are present.
2 inch back connection glycerin filled front flange SS case brass internal gauges which is used forOutdoor and severe ambient and process conditions; Use where harmful vibration and pulsation are present.
2.5 inch price of pressure gauges with bottom connection crimped ring, which is used forOutdoor and severe ambient and process conditions; Use where harmful vibration and pulsation are present.
2.5 inch back connection crimped ring glycerin filled SS case brass internal gauges which is used forOutdoor and severe ambient and process conditions; Use where harmful vibration and pulsation are present.
2.5 inch back connection liquid filled SS case brass internal gauges with front flange which is used forOutdoor and severe ambient and process conditions; Use where harmful vibration and pulsation are present.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
