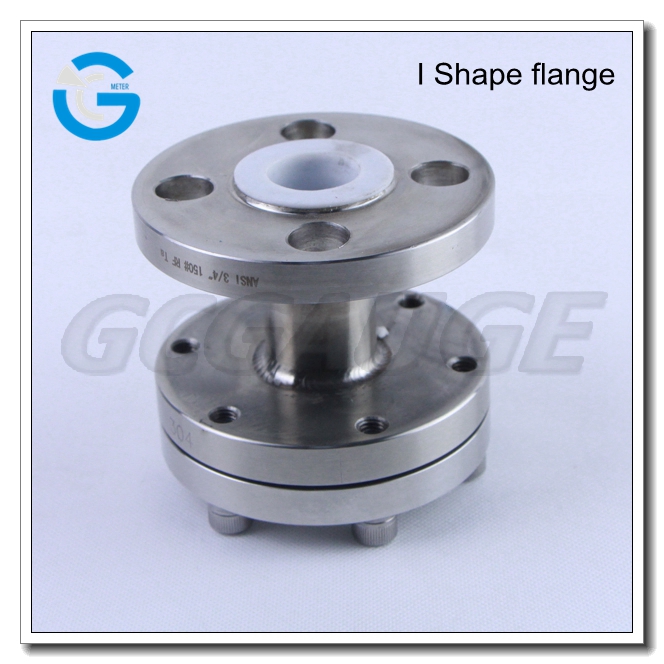

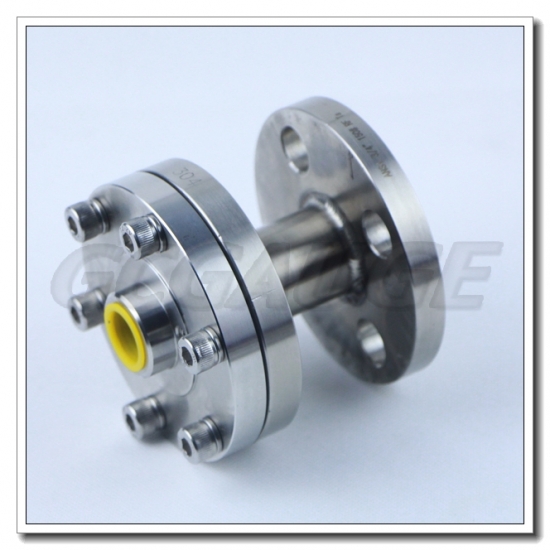

High Quality I-Shape Flange Diaphragm Seals

High Quality I-Shape Flange Diaphragm Seals,

  • Material:

    Monel 316L PTEE coated

  • Wetted Parts:

    Stainless steel 304/316/316L

  • Standard:

    EN837-1or DIN

  • Certification:

    ISO9001

  • Quality:

    100% Inspection
Share To :
Inquire Now
Categories
New Products
  • Product Details

High Quality I-Shape Flange Diaphragm Seals


Application & Features:

Range:φdm=56 -0.1～0 / 0～40MPa

    φdm=36 0～1.6 / 10～40MPa

Accuracy: (add to instrument accuracy)±0.5% for

direct mounting;

±1% for dampeners, over pressure

protector, distance transmission and so on.

Working Temperature: -45-+150℃

Diaphragm material: Hastelloy B, Hastelloy C, Tantalum,Titanium, Monel 316L PTEE coated

Wetted material:321, 304, 316L（or+PTFE）

Connection: Thread M20*1.5,1/2”NPTother on request

Filling liquid: Silicone oil,luorocarbon oil ,Food oil

Used in petrochemical, alkali, chemical fiber, pharmaceutical, metallurgical, and food industries.

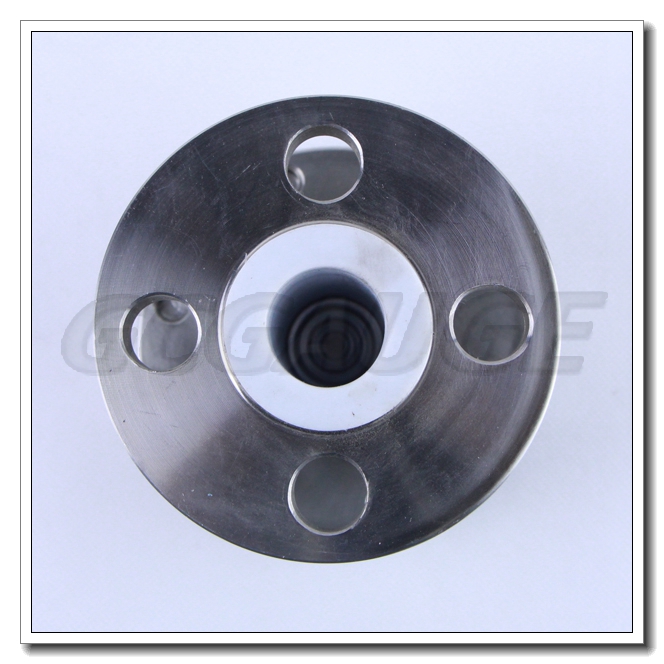

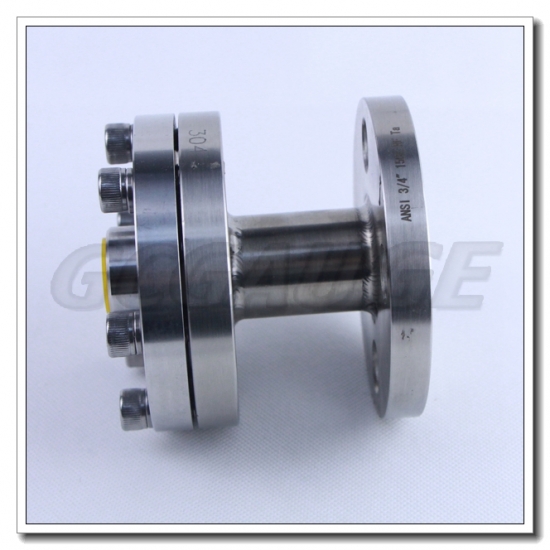

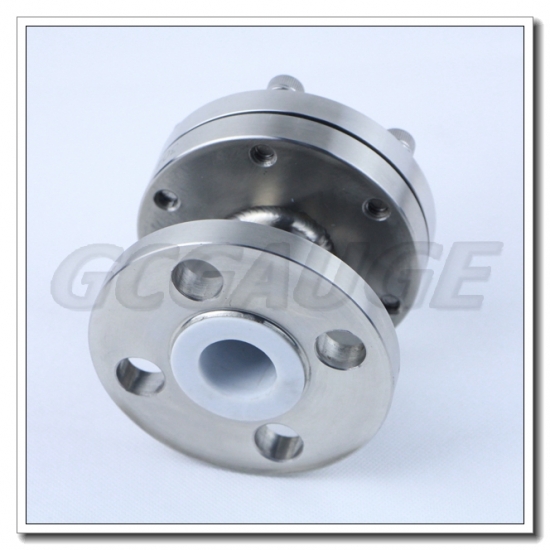

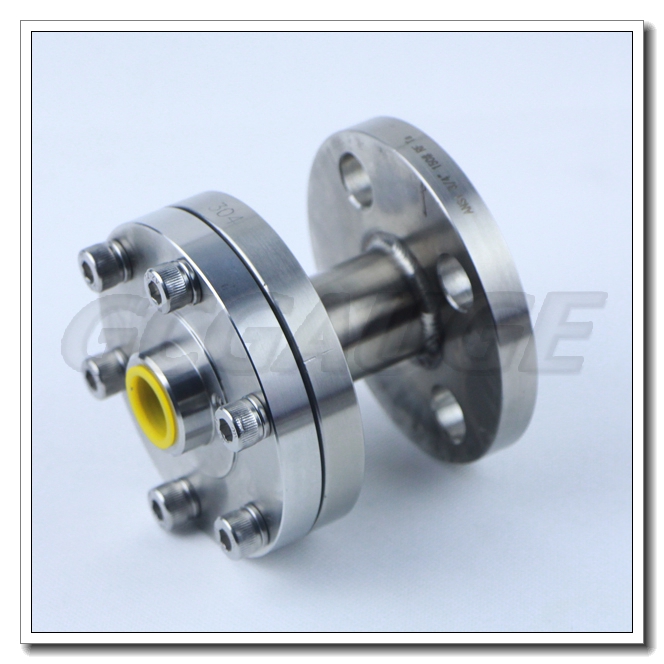

Pictures:

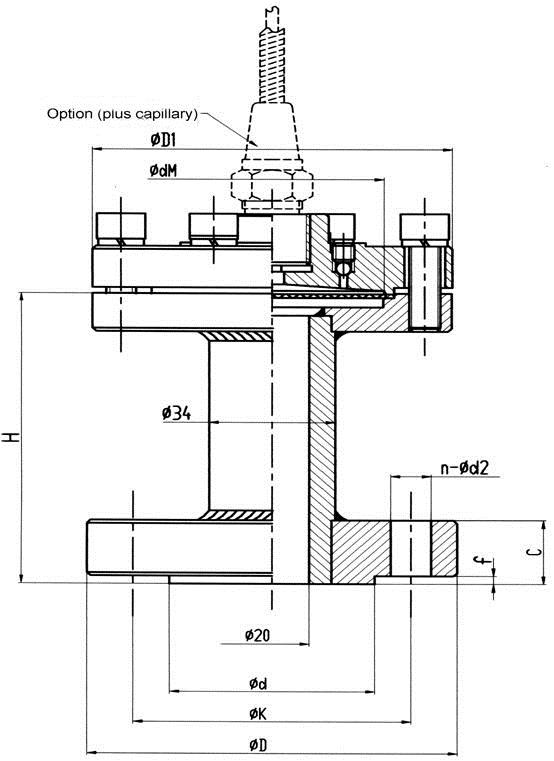

Drawings:

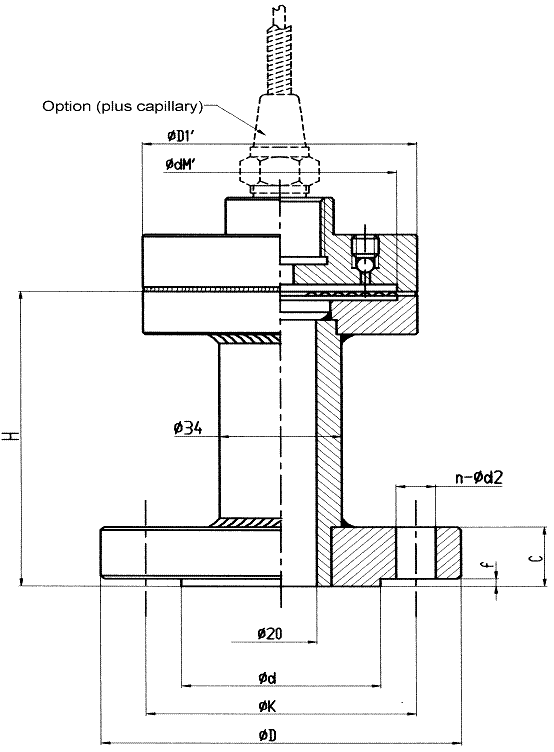

DIMENSIONS (mm)

φdM=56，range：-0.1～0 / 0～4MPa


φdM=36，range：0～1.6 / 0～40MPa


φdM=49，range：-0.1～0 / 0～4MPa


φdM=30，range：0～1.6 / 0～40MPa

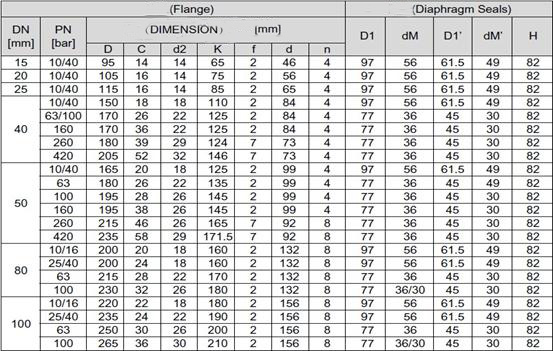

Flange[GB/T 9123.1-2000]

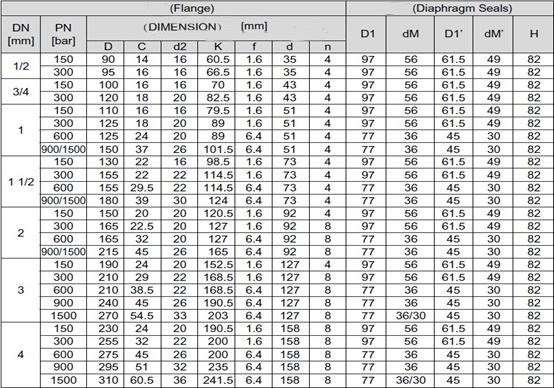

Flange [ANSI B16.5]
