Material:
Copper AlloyCertification:
ISO9001Quality:
100% Inspection

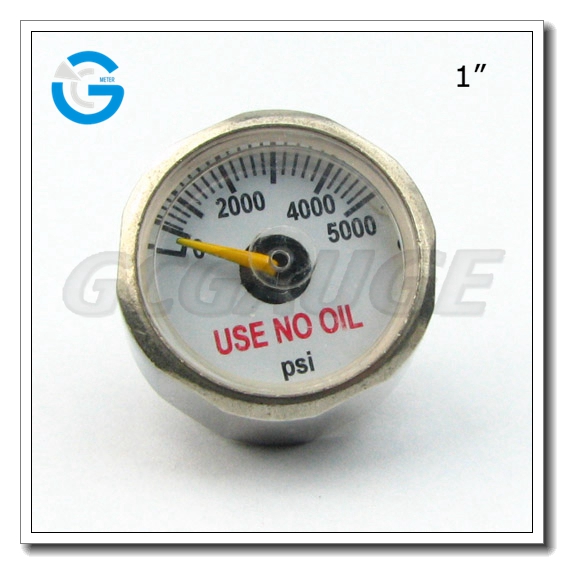

Mini pressure sensors 5000PSI use no oil
Brief:
For mini pressure gauges, we also have many type gauges, including 23mm , 25mm, use no oil mini gauges, also can customized dial face, connection thread as customer's request.
Application & Features:
• Reliable, small diameter, low profile gauge
• 1" sizes
• 1/8" NPT back socket
• Safety over-pressure port on the lens
• Commonly used on portable pneumatic equipment such as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers
Specifications:
|
Dial |
1” |
|
Case |
1”chrome-plated brass, other size OEM |
|
Lens |
Plexiglass |
|
Spiral Tube |
phosphor bronze or stainless steel 316L |
|
Connection |
1/8” NPT standard, back |
|
pointer |
Brass,304 SS |
|
Over-Pressure Limit |
10% of full scale value |
|
Working Pressure |
30~70% of full scale value |
|
Ambient |
-40°F to 150°F (-40°C to 65°C) |
|
Accuracy |
±3-2-3% ANSI/ASME Grade B |
|
Enclosure Rating |
IP65 |
Product Pictures:
Dimension:
Leave A Message25mm mini gauges 1500PSI with chrome-plated color, which is used in industry.
1Inch black hexagon small miniature gauges, which is used in industry.
Paintball gauge 5000 PSI 1inch 23mm 25mm with chrome-plated color, which is used in industry.
Micro pressure gauges 28mm 150PSI, which is used in industry.
1" Chrome-plated luminous gauges, which is used in industry.
1" stainless steel body small pressure gauges, which is used in industry.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
