/Small miniature 25mm gauge 0.6MPa with customized thread

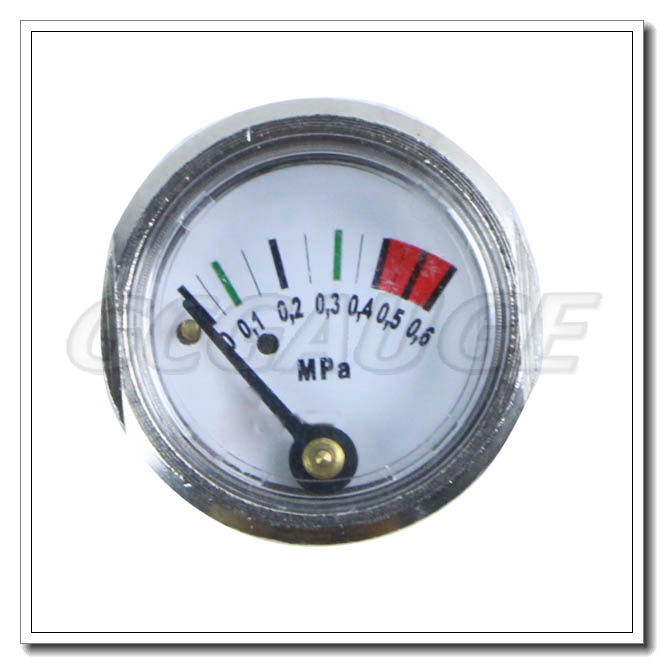

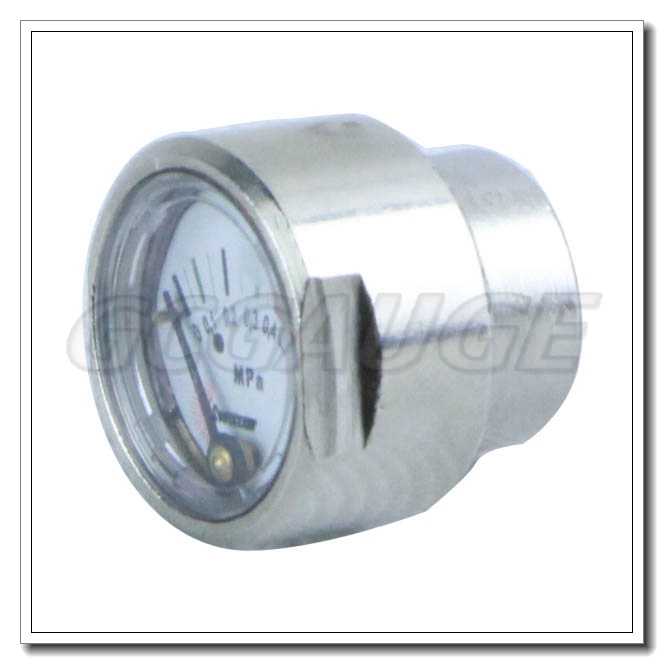

Small miniature 25mm gauge 0.6MPa with customized thread

1 Inch Chrome-plated brass small miniature 25mm gauge with customized thread, which is used in industry.

Material:
Copper Alloy
Standard:
EN837-1or DIN
Certification:
ISO9001
Quality:
100% Inspection

Share To :

Inquire Now

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Details

Small miniature 25mm gauge 0.6MPa with customized thread

Brief:

For mini pressure gauges, we also have many type gauges, including23mm mini gauges, 25mm, also can customized dial face, connection thread as customer's request.

Application & Features:

• Reliable, small diameter, low profile gauge

• 1" sizes

• 1/8" NPT back socket

• Safety over-pressure port on the lens

• Commonly used on portable pneumatic equipment such as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers

Specifications:

Normal Size:	1”
Body:	chrome-painted brass, direct with connector
Dial:	Aluminum material, with stop pin
Pointer:	copper alloy material, colour finished

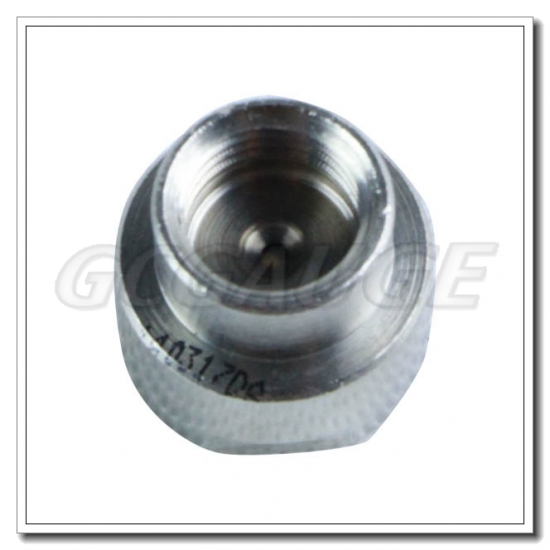

Connector:	copper alloy, 1/8”,1/4” NPT, BSP
Pressure Element:	Phosphor bronze Spiral tube system
Pressure range:	0 to 6000psi/400bar
Scale angle:	120-130 depend on the pressure gauge
Accuracy:	+/-4.0% of full scale
