SS Case Brass Internal Gauges

/Stainless steel vacuum gauges manometros for pump

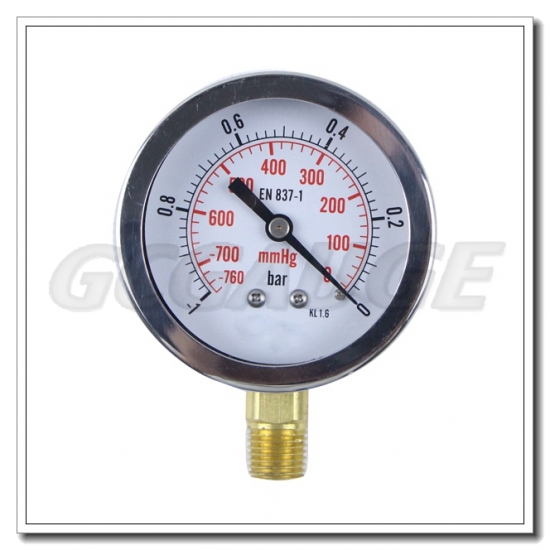

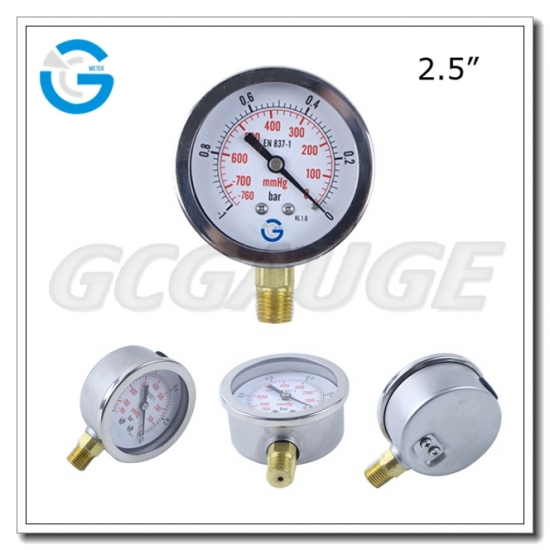

Stainless steel vacuum gauges manometros for pump

Stainless steel vaccum gauges manometros for pump,

which is used forOutdoor and severe ambient and process conditions; Use where harmful vibration and pulsation are present.

  • Case material:

    Stainless steel
  • Wetted Parts:

    Brass
  • Standard:

    EN837-1or DIN
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
  • Options/Notes:

    Lower or back entry;panel mount or surface mount.
Share To :
New Products
  • Product Details

Stainless steel vacuum gauges manometros for pump


Brief:

For vacuum gauges, we also have steelcapsule vacuum gaugesfor your choice.


Application :

• Outdoor and severe ambient and process conditions

• Use where harmful vibration and pulsation are present

• Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and                                                 process systems

• Suitable for all gaseous and liquid media that will not obstruct the pressure system or attack copper                        alloy parts

• Lower or back entry, panel mount or surface mount


Features

• Stainless steel case brass internal

• According to EN837-1

• Bayonet ring (Inside or outside for option) or crimped ring

• Vibration and shock resistant (with liquid filling)


Options:

• Micro adjustable pointer (only for 4”,6”)

• Blow out disc at the back (for 4” & 6”)

• Restrictor screw Ø 0.5 (for fittings > 1/4")

• Accuracy class 0.6 ((for dial size≥4")

• Connection method: One piece with o-ring or two split



Specifications:

Dial

1.5”,2”,2.5”,3”,4″,6”,8",10"(40mm,50mm,63mm,75mm,100mm,150mm,200mm,250mm)

Scale ranges

-1/600bar

Accuracy class

1.6%(≤63mm);1.0%(>63mm)

Process connection

1⁄4″(63mm),1⁄2″(100 mm or above )NPT or BSP or BSPT

Bourdon tube

Brass

Wetted parts/socket

Brass

Movement

Brass

Pointer

Aluminum, micrometer adjustable available

Welding

Sn Welding; Silver alloy Welding for high pressure series

Case material

Stainless steel 304,DIN bayonet bezel or crimped ring

Window(lens)

Tempered glass, pc or safety glass

Fill

Glycerin or silicone

IP class

IP 65

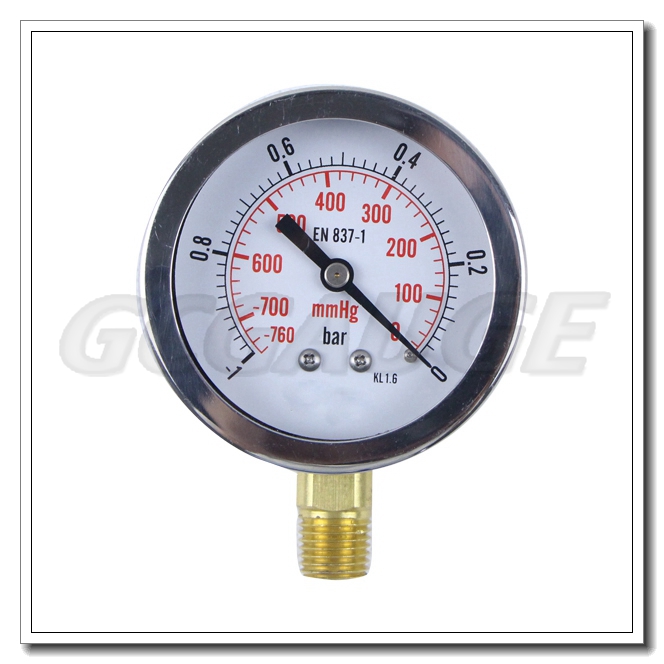

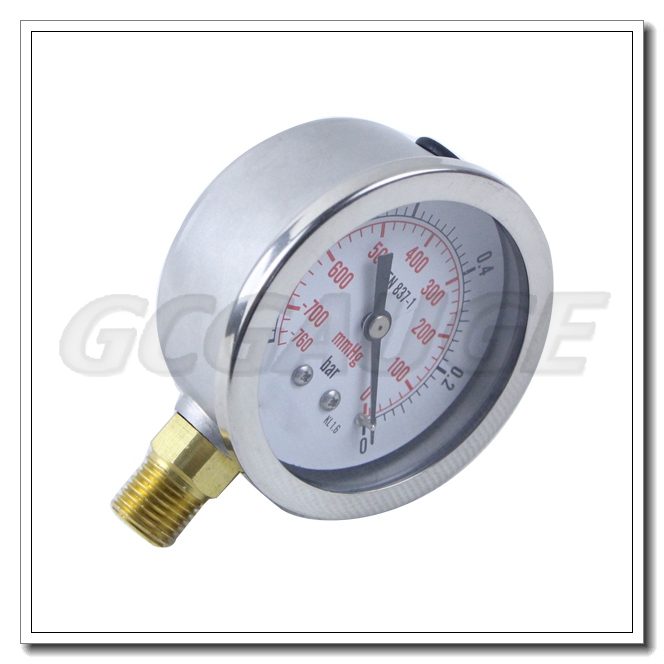

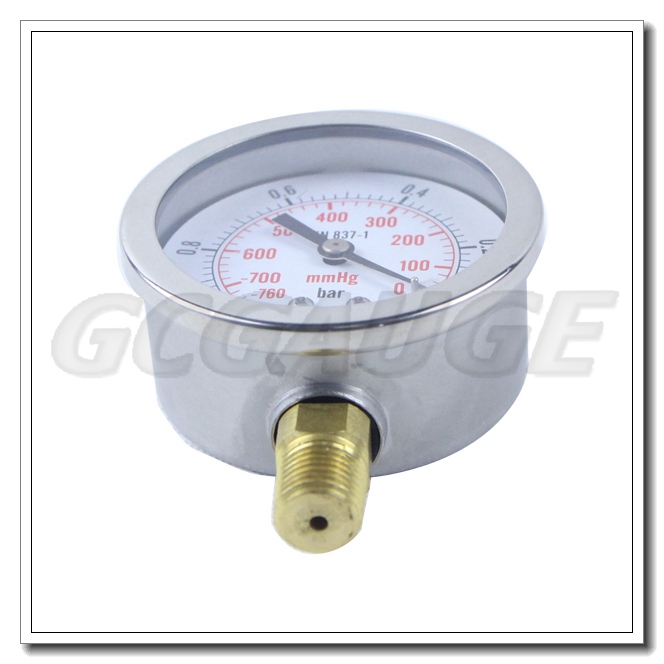

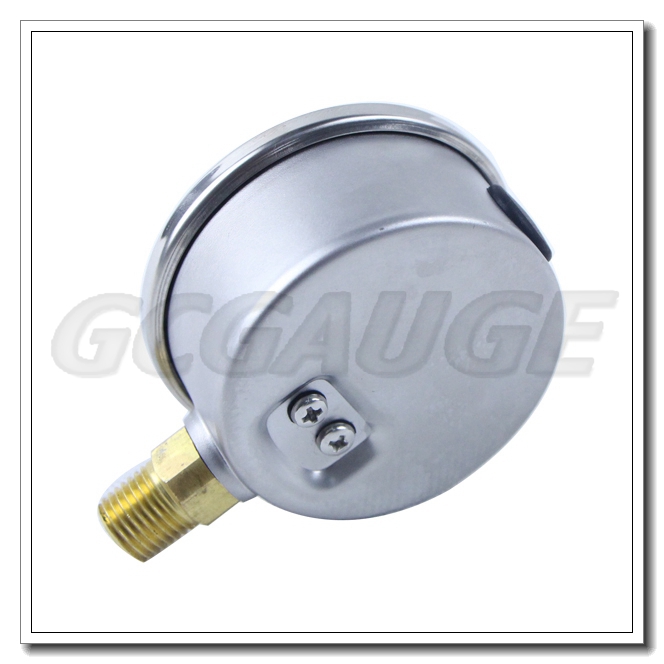

Product Pictures:

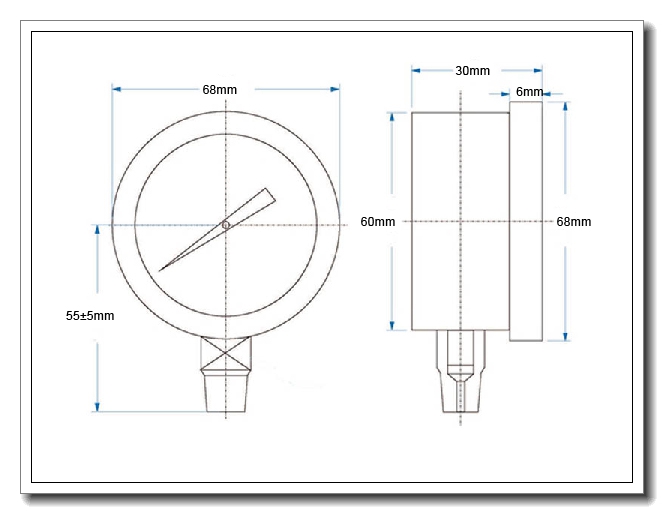

Dimension:
