Case material:
Stainless steelWetted Parts:
Stainless steel 304/316/316LStandard:
EN837-1or DINCertification:
ISO9001Quality:
100% Inspection

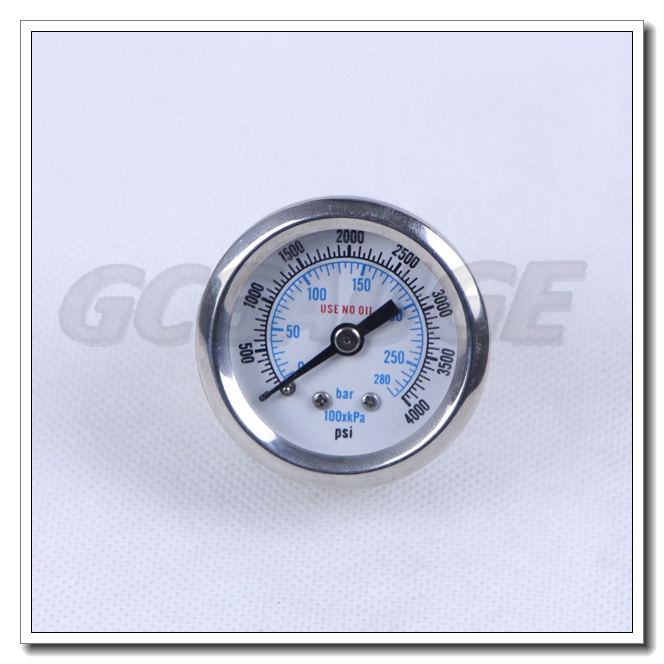

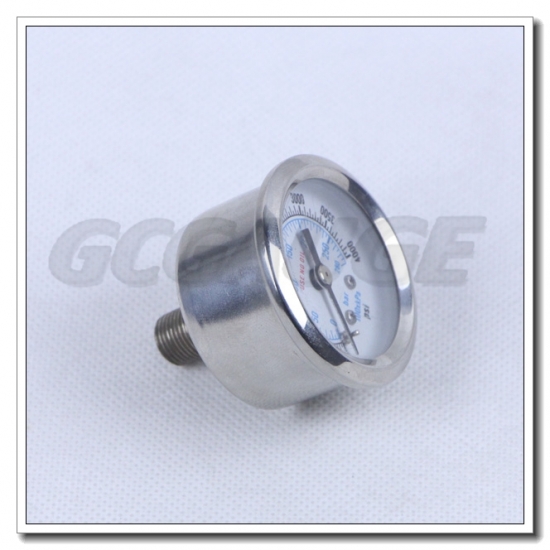

1.5 inch all stainless steel back entry 4000psi pressure gauge
Application & Features:
• Outdoor and severe ambient and process conditions
• Use where harmful vibration and pulsation are present
• Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
• Gaseous, liquid, and corrosive media corrosive environment
• Lower or back entry, panel mount or surface mount
Specifications:
|
Dial: |
1.5", 2", 2.5", 4",6",8"10" |
|
Scale ranges: |
-1 to 1000bar |
|
Accuracy class: |
1.6%(≤63):1.0%(≥100,150,200) |
|
Process connection: |
1/8”,1/4",1/2"NPT OR BSP |
|
Burdon tube: |
316LSS,drawn seamless |
|
Wetted parts/socket: |
Stainless steel 304 or 316 or 316L |
|
Movement: |
316SS or 304SS |
|
Pointer: |
Aluminum, micrometer adjustable for option |
|
Welding: |
TIG Welding, Laser Welding |
|
Case material: |
Stainless steel 304, DIN bayonet ring or crimped bezel |
|
Window(lens): |
Safety glass, tempered glass or pc |
|
Fill: |
Glycerin or Silicone |
|
IP class: |
IP 65 |
Product Pictures:
Our company's main products include: Economy Pressure Gauge, All Stainless Steel Pressure Gauge, Electric Contact Pressure Gauge, Capsule Low Pressure Gauge, Vacuum Gauge, Oxygen Medical Pressure Gauge, High Pressure Gauge, Spiral Miniature Pressure Gauge, Fire Extinguisher Gauge, Medical Instrument, Diaphragm Pressure meters, Differential Pressure Gauges, Industrial Glass Thermometers, Bimetal Thermometers ,Transmitter, Flow meters ,etc. Continually developing more and more products to adapt to the different requirements from the customers.
Leave A MessagePressure gauge types with 2.5 inch dial all stainless steel material bayonet ring, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
2" All stainless steel bottom entry oil gauges, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
2.5" All stainless steel crimp ring oil filled pressure gauges, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
Bourdon tube liquid filled stainless steel pressure gauges with 4inch 100mm dial bottom connection, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
6" All stainless steel bayonet ring oil pressure test gauges, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
8" Stainless steel gauges, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
4" All stainless steel crimp ring hydraulic oil pressure gauges, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
10" All stainless steelcustom pressure gauges, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
