Case material:
Stainless steelWetted Parts:
Stainless steel 304/316/316LStandard:
EN837-1or DINCertification:
ISO9001Quality:
100% InspectionOptions/Notes:

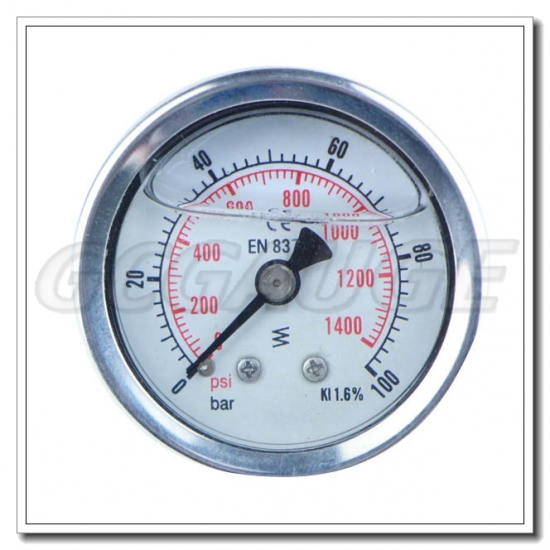

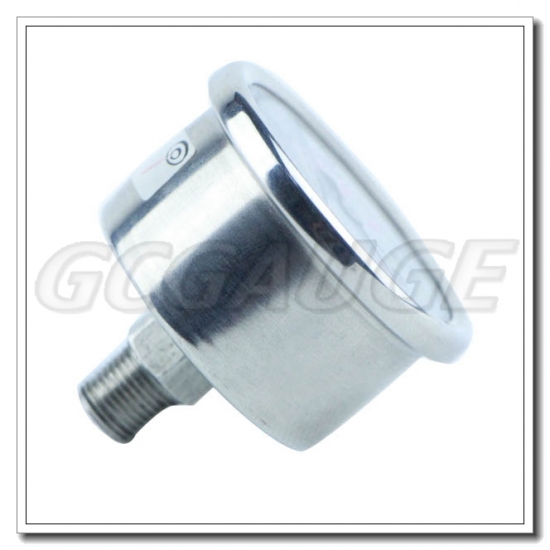

Lower or back entry;panel mount or surface mount.Hydraulic pressure gauge 1.5 inch back entry stainless steel material
Application & Features:
• Use where harmful vibration and pulsation are present
• Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
• Gaseous, liquid, and corrosive media corrosive environment
• Lower or back entry, panel mount or surface mount
Specifications:
Dial: |
1.5", 2", 2.5", 4",6",8"10" |
Scale ranges: |
-1 to 1000bar |
Accuracy class: |
1.6%(≤63):1.0%(≥100,150,200) |
Process connection: |
1/8”,1/4",1/2"NPT OR BSP |
Burdon tube: |
316LSS,drawn seamless |
Wetted parts/socket: |
Stainless steel 304 or 316 or 316L |
Movement: |
316SS or 304SS |
Pointer: |
Aluminum, micrometer adjustable for option |
Welding: |
TIG Welding, Laser Welding |
Case material: |
Stainless steel 304, DIN bayonet ring or crimped bezel |
Window(lens): |
Safety glass, tempered glass or pc |
Fill: |
Glycerin or Silicone |
IP class: |
IP 65 |
