1" Imitation diaphragm chrome-plated Fire Extinguisher Gauges

1" Imitation diaphragm chrome-plated Fire Extinguisher Gauges, which is used for fire extinguishers.

  • Material:

    Copper Alloy
  • Standard:

    EN837-1or DIN
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
Share To :
  • Product Details

1" Diaphragm chrome-plated Fire Extinguisher Gauges


Brief:

For fire extinguisher pressure gauges, we have normal fire extinguisher gauges,UL certification fire extinguisher gauges, diaphragm chrome-plated mini fire extinguisher gauges, brass mini fire extinguisher gauges for your choice.


Application & Features:

• Reliable, small diameter, low profile gauge

• 1" (25mm) sizes

• 1/8" NPT socket

• Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement

• Safety over-pressure port on the lens

• Commonly used on portable pneumatic equipment such as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers



Specifications:

Name

1" Diaphragm chrome-plated mini  fire extinguisher pressure gauge

Diameter

1”

Case

Brass chrome plated

Movement & Tube

Standard brass alloy (diaphragm)

Operating Temperature:

Ambient - 40 + 60°C

Thread

Back Entry 1/8 BSP, 1/8 NPT, Special threads available.

Pressure unit

Mpa/psi/bar/kpa

Accuracy

±5%FSD

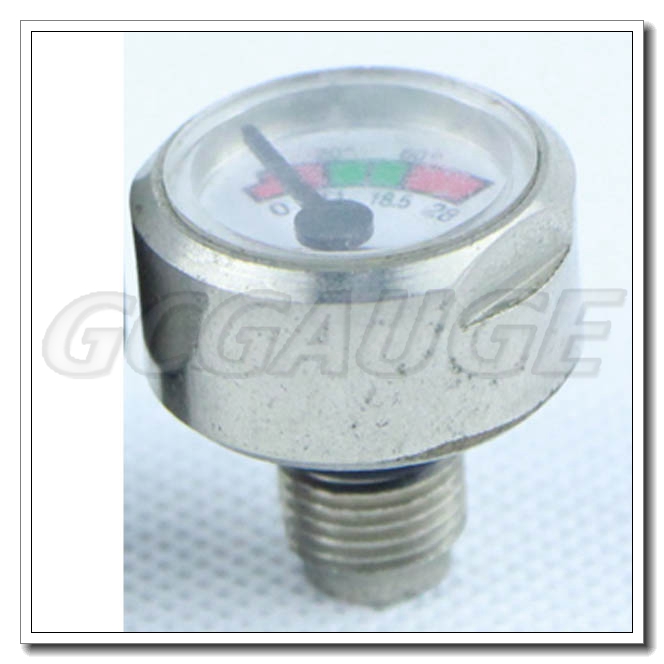

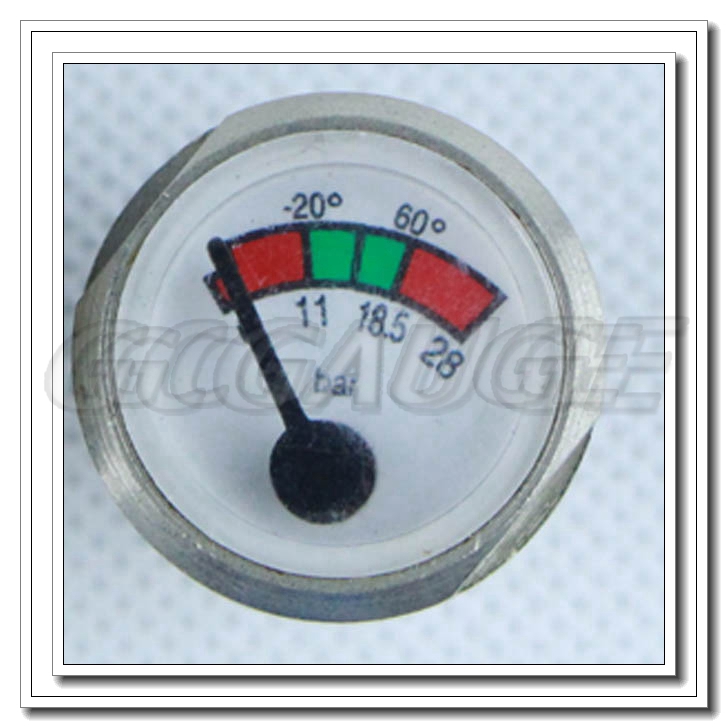

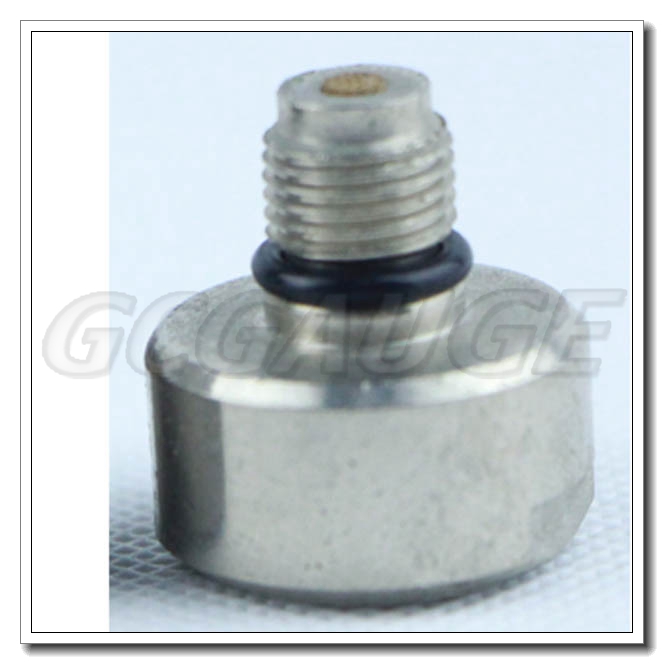

Product Pictures:


Dimension:
