1" Mini brass pressure indicator of fire extinguisher

1" mini Brass pressure indicator of fire extinguisher, which is used for fire extinguishers.

  • Case material:

    Brass
  • Standard:

    EN837-1or DIN
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
Share To :
New Products
  • Product Details

1" Mini brass pressure indicator of fire extinguisher


Brief:

For fire extinguisher pressure gauges, we have normal fire extinguisher gauges, UL certification fire extinguisher gauges,diaphragm chrome-plated mini fire extinguisher gauges, brass mini fire extinguisher gauges for your choice.


Application & Features:

• Reliable, small diameter, low profile gauge

• 1"

• 1/8" NPT socket

• Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement

• Safety over-pressure port on the lens

• Commonly used on portable pneumatic equipment such as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers



Specifications:

Name

1" Mini brass pressure indicator of  fire extinguisher

Diameter

1”,1.25”

Case

Brass

Construction

Spiral tube

Operating Temperature:

Ambient - 40 + 60°C

Thread

Back Entry 1/8 BSP, 1/8 NPT, Special threads available.

Pressure unit

Mpa/psi/bar/kpa

Accuracy

±5%FSD

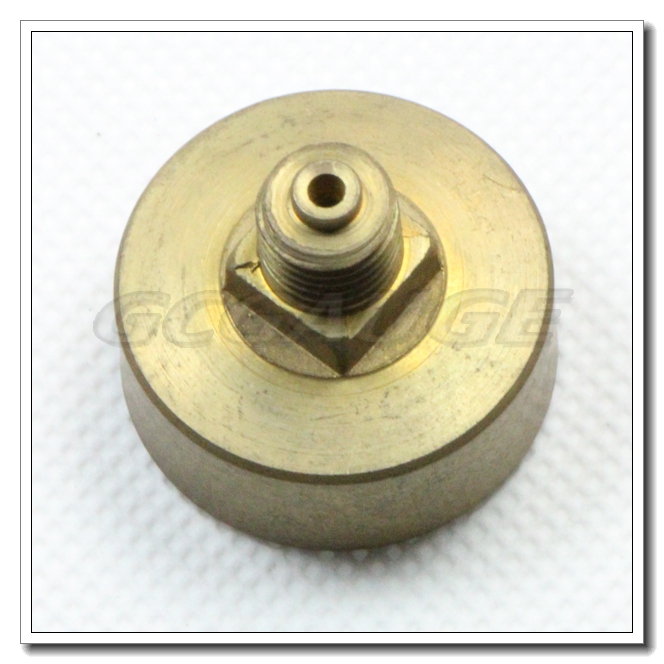

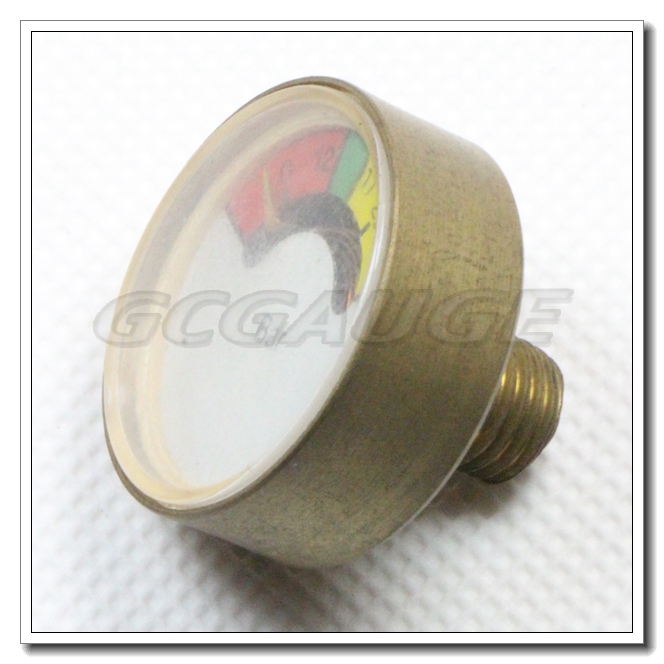

Product Pictures:


Our company's main products include: Economy Pressure Gauge, All Stainless Steel Pressure Gauge, Electric Contact Pressure Gauge, Capsule Low Pressure Gauge, Vacuum Gauge, Oxygen Medical Pressure Gauge, High Pressure Gauge, Spiral Miniature Pressure Gauge, Fire Extinguisher Gauge, Medical Instrument, Diaphragm Pressure meters, Differential Pressure Gauges, Industrial Glass Thermometers, Bimetal Thermometers ,Transmitter, Flow meters ,etc. Continually developing more and more products to adapt to the different requirements from the customers.


Dimension:
