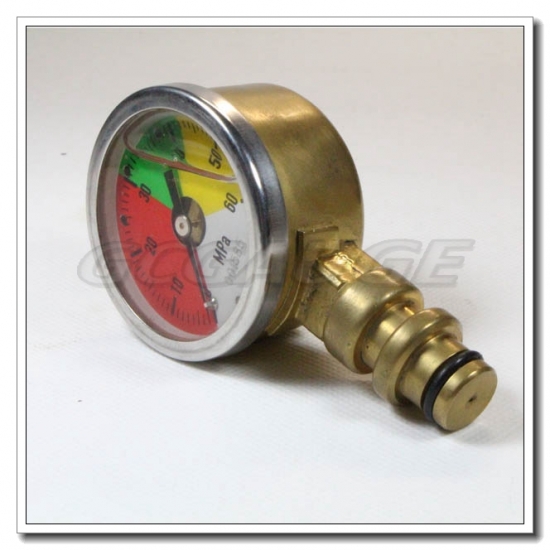

2" One-piece forged brass case mining pressure gauges

2" One-piece forged brass case mining pressure gauges, which is usedfor hydraulic equipment, OEM mining aplications.

  • Case material:

    Brass

  • Standard:

    EN837-1or DIN

  • Certification:

    ISO9001

  • Quality:

    100% Inspection
Share To :
Inquire Now
Categories
New Products
  • Product Details

2" One-piece forged brass case mining pressure gauges


Brief:

For mining pressure gauges, we have one-piece forged brass case and stainless steel case mining pressure gauges for your choice.


Application & Features:

   • Rugged, 2" (50mm) one-piece forged brass case design for added durability
   • Forged brass case and socket
   • Glycerin filled
   • 3 coloured zone dial for easier pressure reading

   • 0-9,000 psi/bar

   • Standard psi/bar pressure range, common in the mining industry

   • Used for hydraulic equipment, OEM mining aplications.



Specifications:

Dial

2” (50mm): White aluminum

Case

One-piece forged brass case

Wetted parts

Brass

Liquid Fill

Glycerin standard

Lens

Polycarbonate

Connection

bottom connection

Pointer

Aluminum, anodized black

Over-Pressure Limit

25% of full scale value

Working Pressure

Maximum 70% of full scale value

Ambient/Process
Temperature

-4°F to 150°F (-20°C to 65°C) glycerin-filled
-40°F to 150°F (-40°C to 65°C) dry

Accuracy

±3-2-3% ANSI/ASME Grade B

Enclosure Rating

IP65


Product Pictures:
