Brass Science Pressure Gauges

/2.5" All brass case watertight subsea gauges

2.5" All brass case watertight subsea gauges

2.5" All brass case watertight subsea gauges, which is usedfor hydraulic equipment, OEM mining aplications.

  • Case material:

    Brass
  • Wetted Parts:

    Brass
  • Standard:

    EN837-1or DIN
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
  • Options/Notes:

    Lower or back entry;panel mount or surface mount.
Share To :
New Products
  • Product Details

2.5" All brass case watertight subsea gauges


Brief:

For 2.5" All brass case watertight subsea gauges, can reach to 450 meters subsea.

Special material and design which is suited for the subsea system.


Specifications:

Measurement range

From-1…to 0…600bar

Accuracy

±1.6% for P≥4bar and ±2% for P<4 bar

Case

Brass Cu Zn 39 Pb 2-watertight-resistant to a 450m of sea water immersion

Bezel ring

Brass material-screwed with rifle nut

Mounting

Type G-Panel mounting

Window

Plexiglas 9mm

Threading

G1/4 or 1/4NPT

Connection material

Stainless steel

Sensing element

Soldered bronze or soldered stainless steel depending on pressure range

Movement

Brass/stainless steel

Blow-out disc

Watertight-Ejection for PI-PE≤2.5bar

Specifications

Oxygen cleaned according to the ST004A specification Packing in individual plastic bags

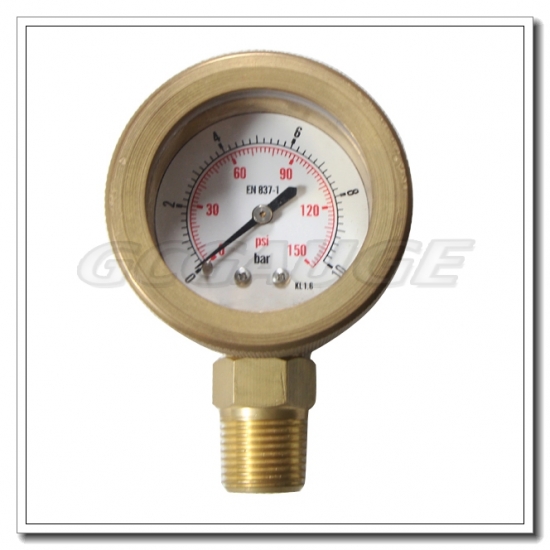

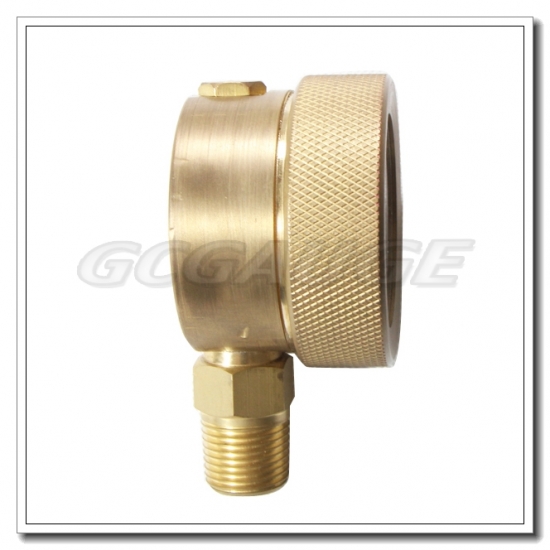

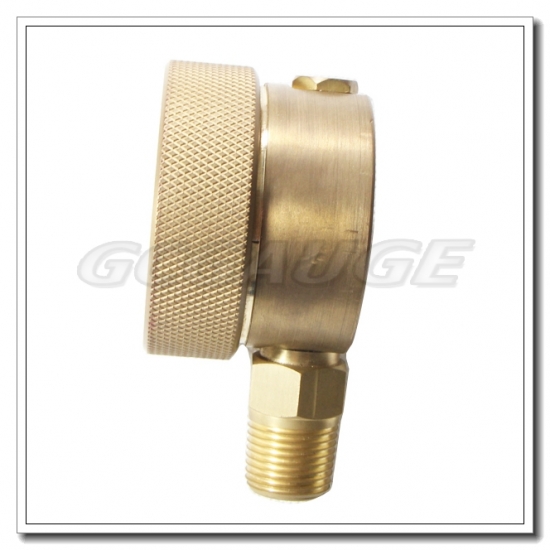

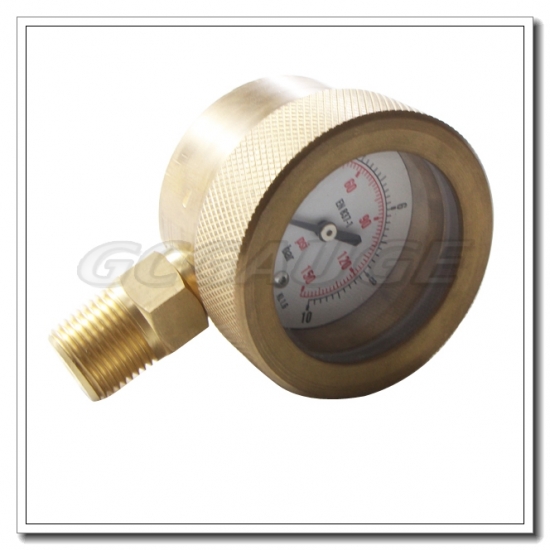

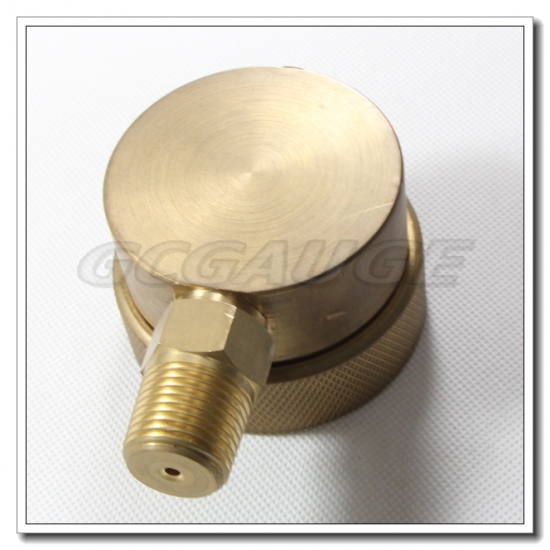

Product Pictures:

Our company's main products include: Economy Pressure Gauge, All Stainless Steel Pressure Gauge, Electric Contact Pressure Gauge, Capsule Low Pressure Gauge, Vacuum Gauge, Oxygen Medical Pressure Gauge, High Pressure Gauge, Spiral Miniature Pressure Gauge, Fire Extinguisher Gauge, Medical Instrument, Diaphragm Pressure meters, Differential Pressure Gauges, Industrial Glass Thermometers, Bimetal Thermometers ,Transmitter, Flow meters ,etc. Continually developing more and more products to adapt to the different requirements from the customers.



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
brass case pressure gauges
Read More
2" One-piece forged brass case mining pressure gauges

2" One-piece forged brass case mining pressure gauges, which is usedfor hydraulic equipment, OEM mining aplications.

Mining Pressure Manometer
Read More
2" Stainless steel bottom connection mining pressure gauges

2" Stainless steel case, stecko bottom connection mine pressure gauges, which is usedfor hydraulic equipment, OEM mining aplications.

copper pressure gauges
Read More
2.5" Bottom connection cast copper case pressure gauges

2.5" Bottom connection cast copper case pressure gauges,range from 0.1-6 MPa.

panel mount pressure gauge
Read More
Brass pressure gauges with flange type Bottom connection

Brass pressure gauges with flange type Bottom connection , which is made all by brass.

panel mount pressure gauge
Read More
Brass steam pressure gauges with bottom connection bayonet ring type

Brass steam pressure gauge with bottom connection bayonet ring type, which is made all by brass, used for steam systems.

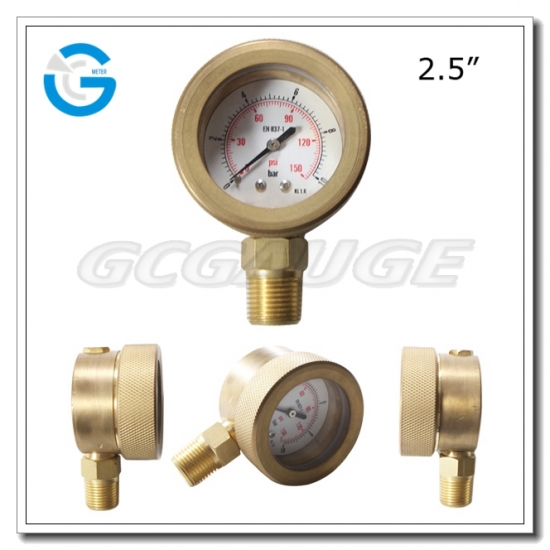

subsea pressure gauges
