Bimetallic Thermometers

/4 inch all stainless steel back connection capillary temperature gauge with flange

4 inch all stainless steel back connection capillary temperature gauge with flange

4 inch all stainless steel back connection capillary temperature gauge with flange,which is used inFood processing and beverage industries.
  • Case material:

    Stainless steel
  • Wetted Parts:

    Stainless steel 304/316/316L
  • Standard:

    EN837-1or DIN
  • Options/Notes:

    Lower or back entry;panel mount or surface mount.
Share To :
  • Product Details

4 inch all stainless steel back connection capillary temperature gauge with flange


Brief:

For bimetallic thermometers, we have crimped type temperature gauge, bayonet typetemperature gauge for your choice, also there're bottom connection , back connection and adjustable connection for option , 63mm and 100mm with option of panel mount or surface mount, 40mm, 50mm, 63mm with option of U-clamp with stainless steel crimped ring.


Application & Features:

l An economical vapour thermometer for remote reading applications

Stainless steel or black steel case

Vapour actuated

Panel mounted (Front Flange or U-Clamp)

Dual scale (°F & °C)

9 feet capillary length

l Freezers, walk-in refrigeration units, food storage cabinets, heating and ventilation. Widely specified in the HVAC, commercial and mechanical industry segments


Specifications:

Dial

Aluminum, painted white with black markings

pointer

Aluminum, painted black

Case/Ring

4” (100mm): SS front flange, or U-Clamp case
2.5” (63mm): SS front flange, SS or steel painted black U-Clamp case

Welding

Silver alloy

Lens

Plexiglass

Bourdon Tube

Phosphor bronze

Capillary

9 feet (3m) nickel plated brass

Operating Temperature

maximum 75% of full scale value

Bulb

Stainless steel

Accuracy

±2.5% of full scale

Movement

Brass

Enclosure Rating

I

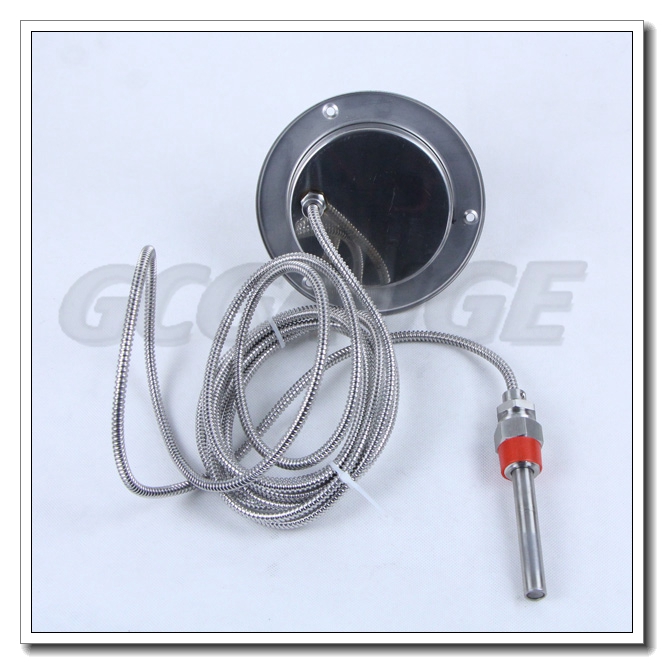

Product Pictures:
