4 inch stainless steel bottom connection long stem inside bayonet bimetallic thermometers

  • Stainless steel
  • Stainless steel 304/316/316L
  • EN837-1or DIN
  • ISO9001
  • 100% Inspection
  • Lower or back entry;panel mount or surface mount.

Detail

4 inch stainless steel bottom connection long stem inside bayonet bimetallic thermometers


Brief:



For bimetallic thermometers, we have crimped type, bayonet type for your choice, also there're bottom connection stem thermometers, back connection stem thermometers and adjustable connection stem thermometers for option.Size: 2", 2.5“, 3”, 4", 6".


Application & Features:



l  A general purpose, tamper-proof, 304 stainless steel thermometer

l  hermetically sealed case

l  Bi-metallic sensing element for reliable readings

l  Back connected

l  Stem length from 2.5" (63mm) and up

l  ±1% accuracy

l Food processing and beverage industries


Specifications:




Dial

2”,2.5”,3",4”, 6” dish shaped dial, aluminum with black markings

pointer

Brass, painted black

Case/Ring

AISI 304 SS

Welding

TIG

Lens

Pc,hermetically sealed

Maximum operating pressure

125 psi (861 kPa)

Stem

AISI 316 SS Ø12mm, Ø6.35mm, Ø8mm, Ø10mm

Operating Temperature

maximum 75% of full scale value

Connection

1/2” NPT, bottom

Ambient/Process Temperature

Maximum 248°F (120°C)

Movement

Bi-metallic coil

Enclosure Rating

IP68

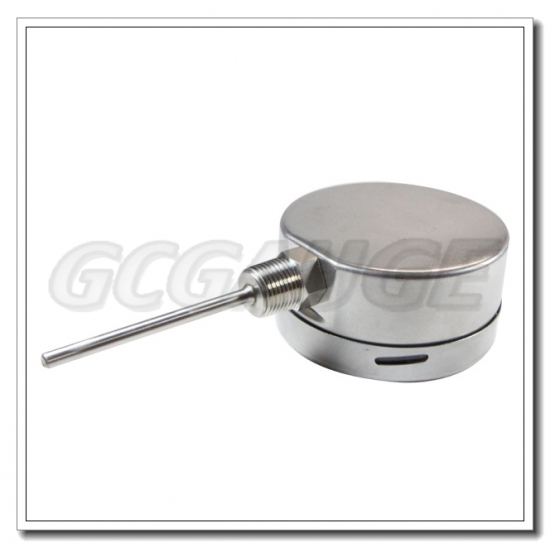

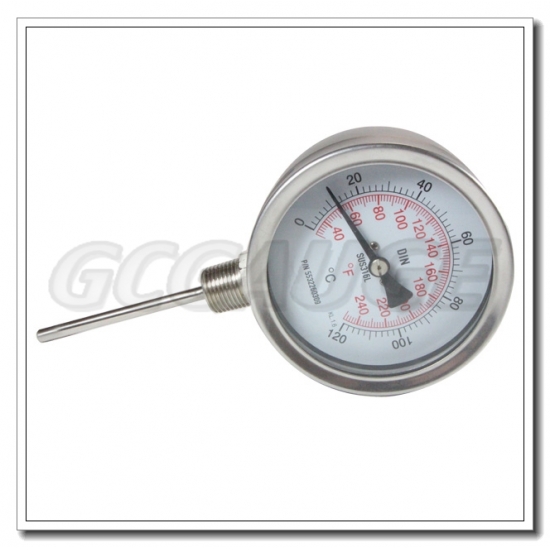

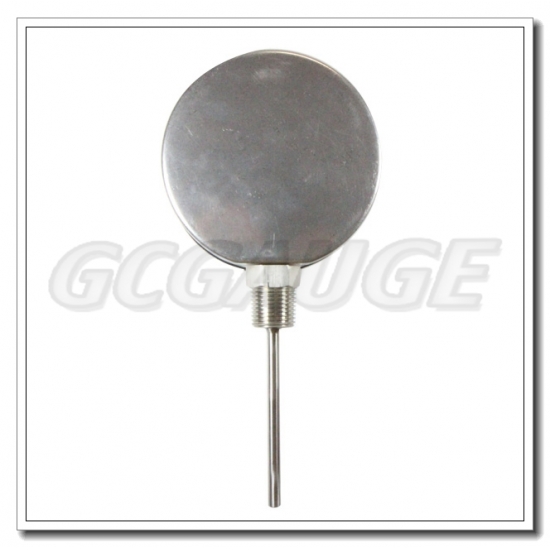

Product Pictures:
