4 inch stainless steel waterproof every angle bimetallic thermometers with probe

4 inch stainless steel waterproof  every angle bimetallic thermometers with probe,which is used inFood processing and beverage industries
  • Case material:

    Stainless steel
  • Wetted Parts:

    Stainless steel 304/316/316L
  • Standard:

    EN837-1or DIN
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
  • Options/Notes:

    Lower or back entry;panel mount or surface mount.
Share To :
New Products
  • Product Details

4 inch stainless steel waterproof  every angle bimetallic thermometers with probe


Brief:

For bimetallic thermometers, we have crimped type, bayonet type for your choice, also there're bottom connection industrial thermometer ,back connection industrial thermometerand adjustable connection industrial thermometer for option.Size: 2", 2.5“, 3”, 4", 6".


Application & Features:

l A general purpose, tamper-proof, 304 stainless steel thermometer

hermetically sealed case

Bi-metallic sensing element for reliable readings

Back connected

Stem length from 2.5" (63mm) and up

±1% accuracy

Food processing and beverage industries


Specifications:

Dial

2”,2.5”,3",4”, 6” dish shaped dial, aluminum with black markings

pointer

Brass, painted black

Case/Ring

AISI 304 SS

Welding

TIG

Lens

Pc,hermetically sealed

Maximum operating pressure

125 psi (861 kPa)

Stem

AISI 316 SS Ø12mm, Ø6.35mm, Ø8mm, Ø10mm

Operating Temperature

maximum 75% of full scale value

Connection

1/2” NPT, adjustable

Ambient/Process Temperature

Maximum 248°F (120°C)

Movement

Bi-metallic coil

Enclosure Rating

IP68

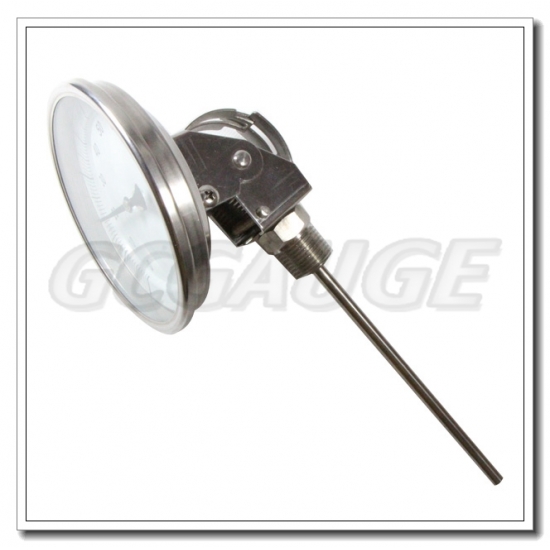

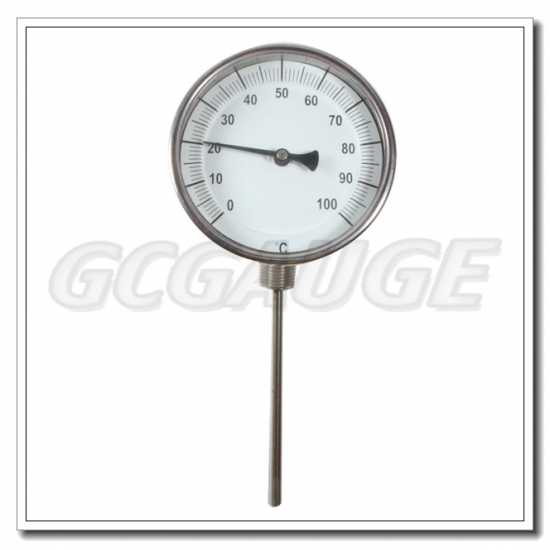

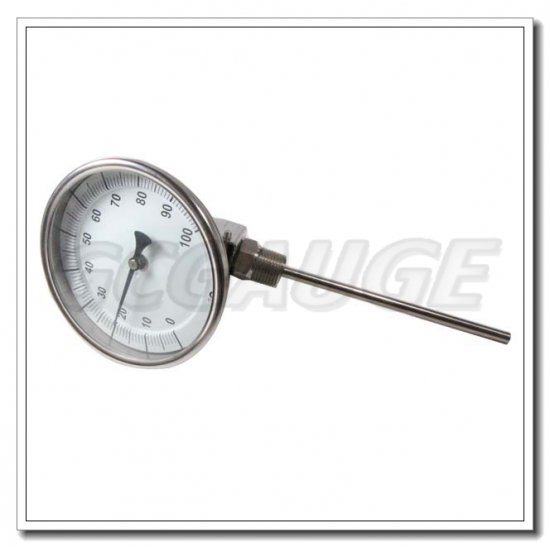

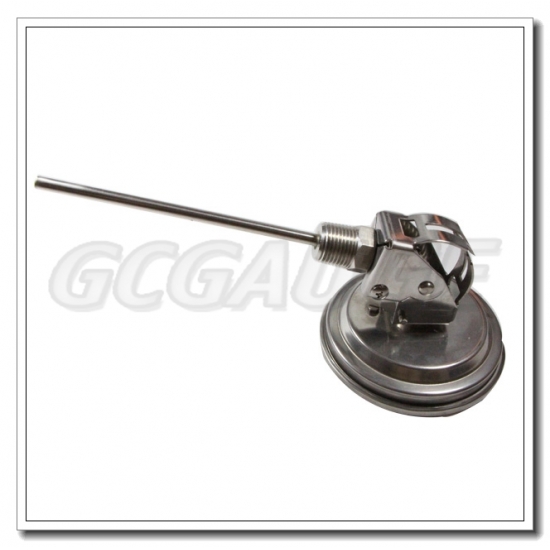

Product Pictures:
