Diaphragm Pressure Gauges

/4 Inch flush diaphragm seal pressure gauges

4 Inch flush diaphragm seal pressure gauges

4 Inch flush diaphragm seal pressure gauges,are built for working in corrosive media.corrosion and viscous media ( non-crystallized ) are a concern.

  • Case material:

    Stainless steel
  • Wetted Parts:

    Stainless steel 304/316/316L
  • Standard:

    EN837-1or DIN
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
Share To :
New Products
  • Product Details

4 Inch flush diaphragm seal pressure gauges


Brief :

Diaphragm pressure gauge, is composed of all-stainless steel case gauge and diaphragm body. It is applicable for oil refineries, chemical plants and many other industrial areas. It particularly applies to a corrosive environment.

for diaphragm pressure gauge, we also havesanitary type diaphragm pressure gauge.


Specifications:

Dial size:

4", 6"

Pressure range:

-1- 0- 1000bar

Socket:

316SS bottom

Contention thread:

NPT, BSP, BSPT and other special specification

Diaphragm:

SS316L, Viton, Monel, Hastelloy, Tantalum available

Case:

304stainless steel

Bezel:

304stainless steel ring

Window (lens):

Polycarbonate lens, tempered glass available

Dial plate:

Single and dual scale (psi, kpa, mpa, bar, kg/cm²) available

Accuracy:

+/- 1.6 % full scale

Liquid Filled medium:

Glycerin filled -20 to 60℃

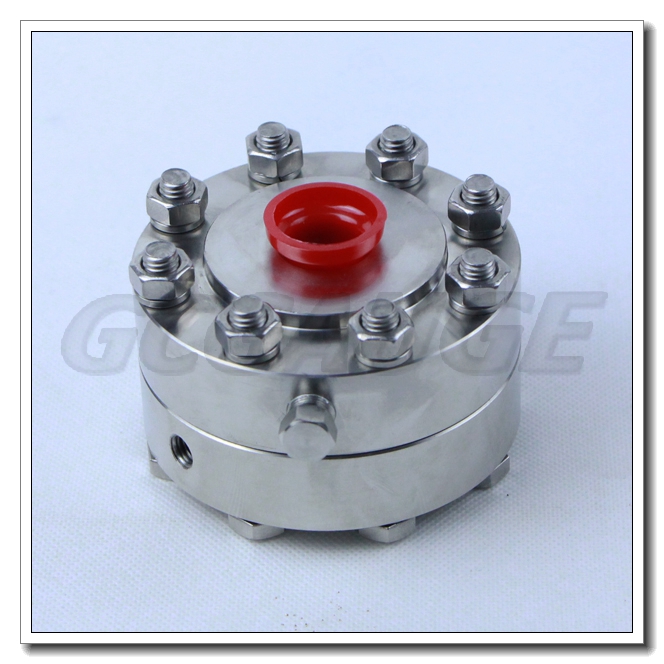

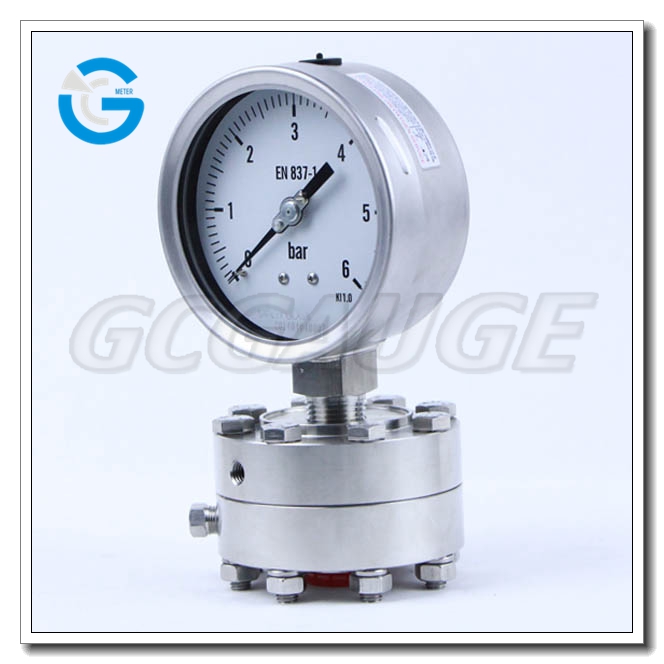

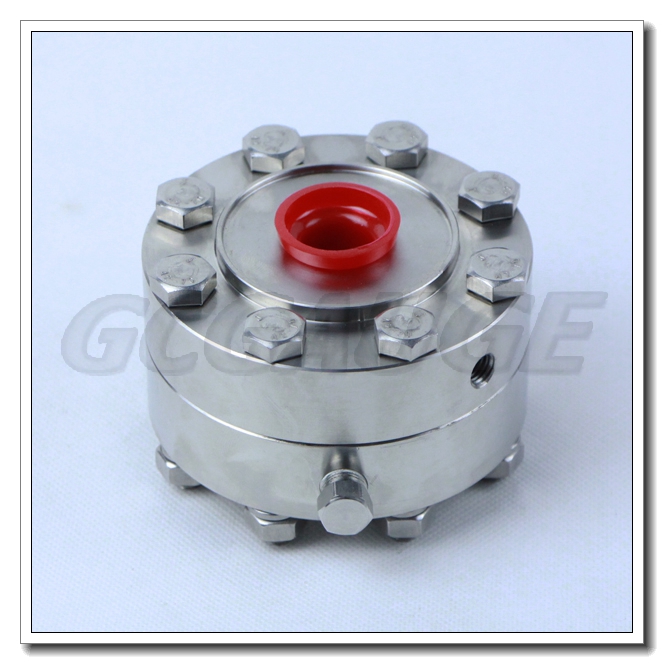

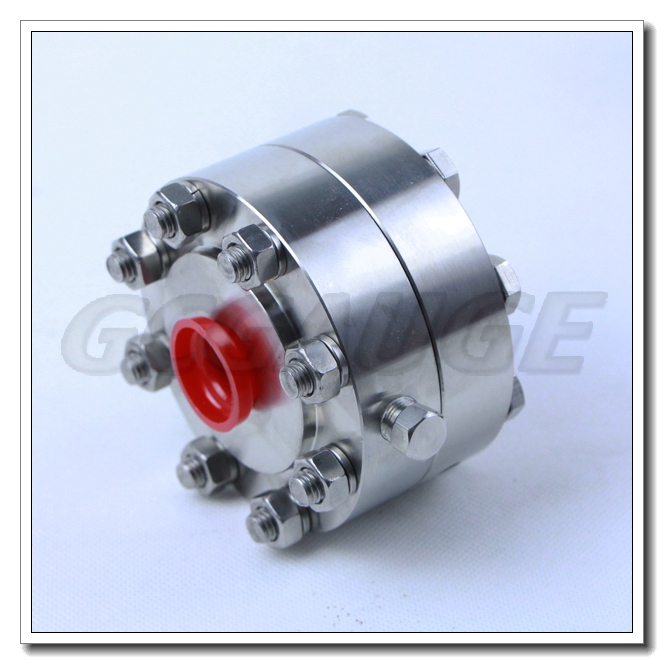

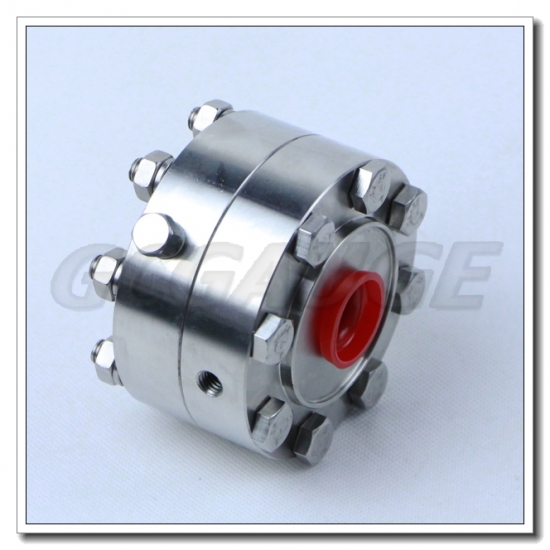

Pictures:
