Diaphragm Pressure Gauges

/All plastic diaphragm seal pressure gauges

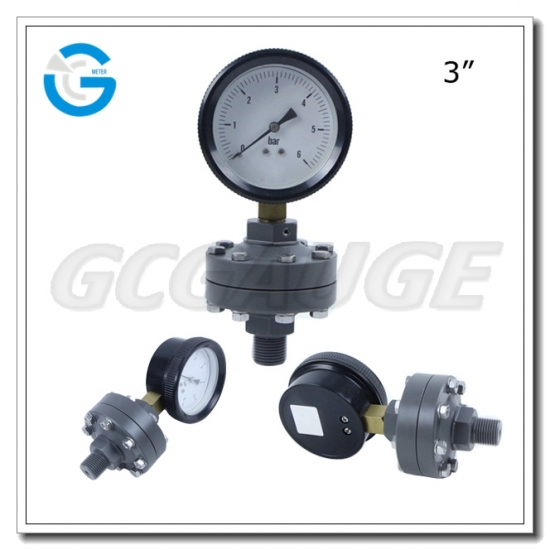

All plastic diaphragm seal pressure gauges

All plastic diaphragm seal pressure gauges,Used in measuring the corrosive liquid and gas as chlorine.hydrochloric acid and nitric acid, etc.

  • Case material:

    Plastic
  • Wetted Parts:

    Brass
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
Share To :
  • Product Details

All plastic diaphragm seal pressure gauges


Brief :

Diaphragm pressure gauge, is composed of all-stainless steel case gauge and diaphragm body. It is applicable for oil refineries, chemical plants and many other industrial areas. It particularly applies to a corrosive environment.

for diaphragm pressure gauge, we also have2.5" pressure gauge with diaphragm.


Application:

Used in measuring the corrosive liquid and gas as chlorine, hydrochloric acid and nitric acid, etc


Feature:

-Composed by a general plastic case pressure gauge and a plastic diaphragm isolated connection body.

-The connection body are F standard type and F1 type

-The main parts are made all by plastic and the isolation diaphragm is made from PTFE corrosion-proof


Specifications:
Dial size: 75mm

Accuracy class: 2.5%

Range: 0-10bar

Diaphragm body: PVC, PTFE

Diaphragm seal: PTFE

Liquid filling: silicone

Temperature: -25 ~ 70℃

Protection: IP54

Case: 75mm ABS (100mm ss304 optional)

Socket: 75mm brass (100mm ss304 optional)

Connection thread: M20x1.5 or special requirement

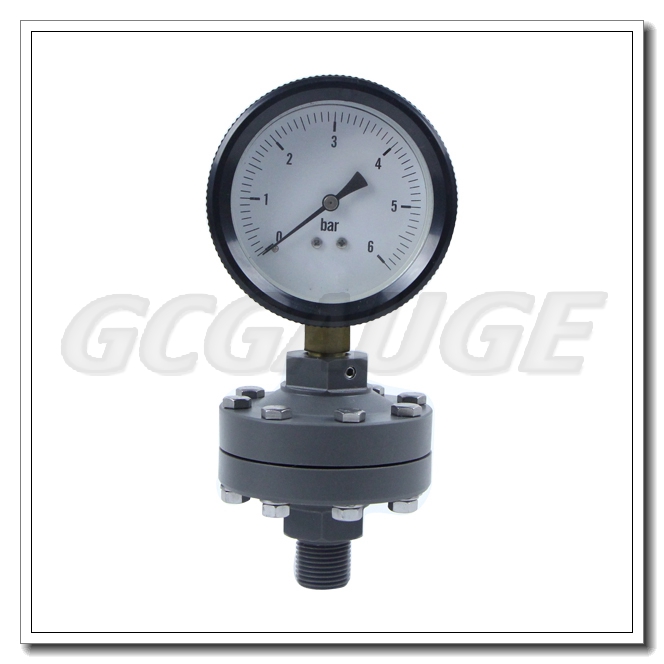

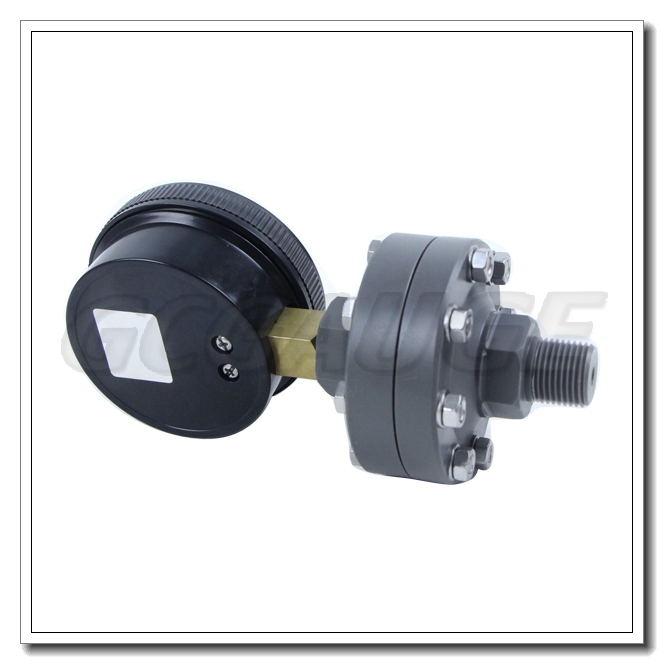

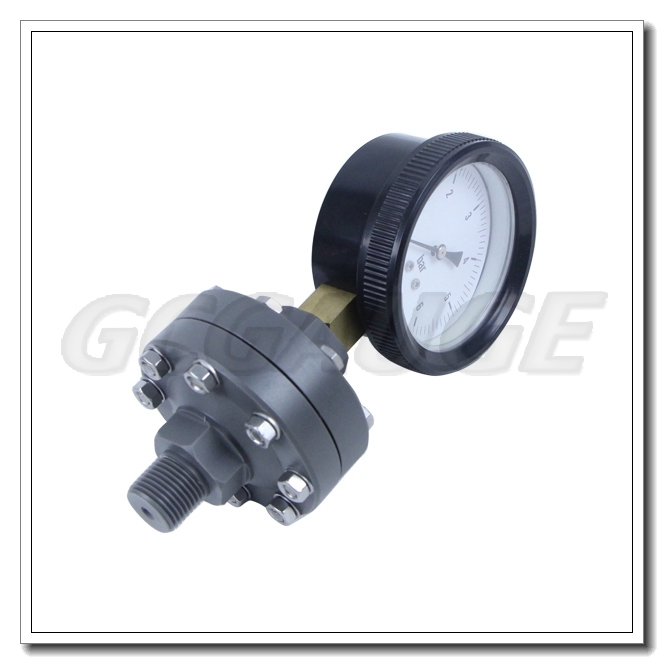

Pictures:
