Case material:
Stainless steelWetted Parts:
Stainless steel 304/316/316LStandard:
EN837-1or DINCertification:
ISO9001Quality:
100% InspectionOptions/Notes:
Lower or back entry;panel mount or surface mount.

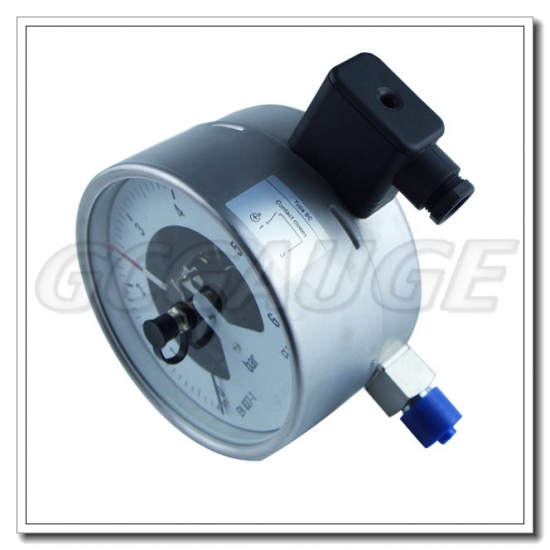

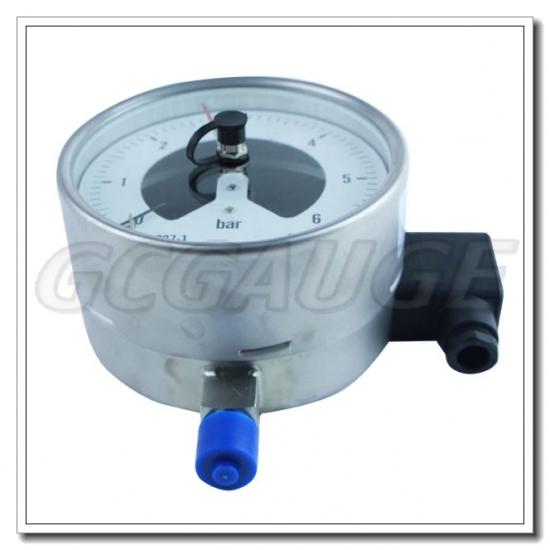

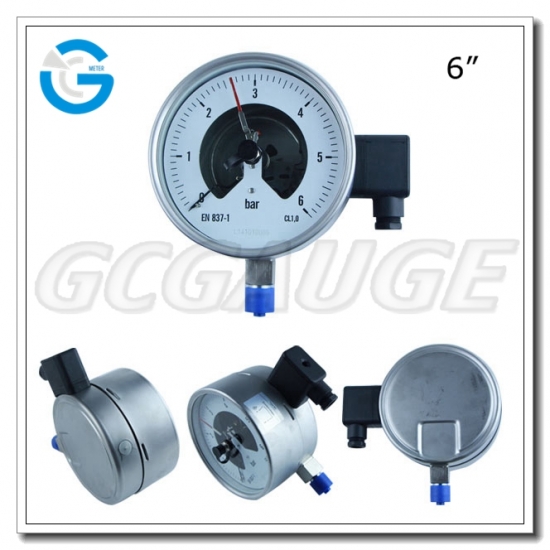

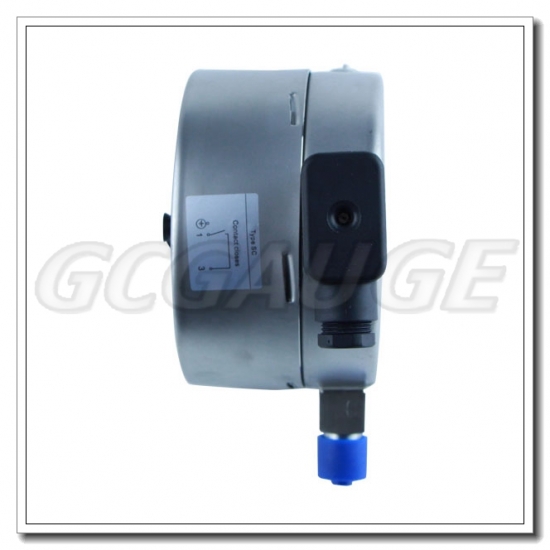

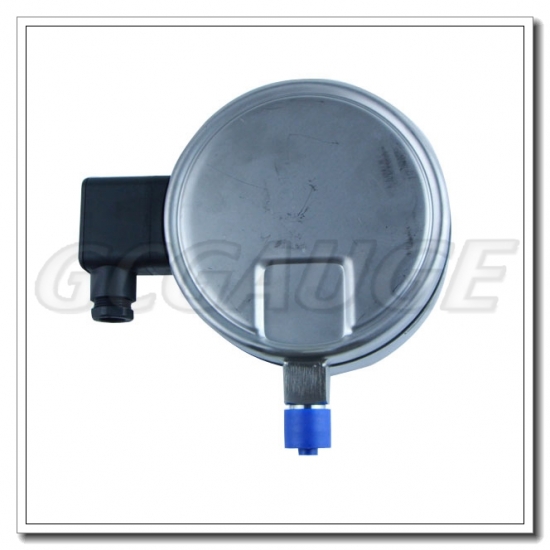

6" All stainless steel bottom connection electric contact gauges
Brief:
For electric contact pressure gauges, we have all stainless steel electric contact pressure gauges, explosion-proof，sanitary etc types for your choice.
Application & Features:
|
Dial |
4”, 6” |
|
Case |
Stainless steel |
|
Lens |
Common glass or Safety glass |
|
Ranges |
Minimum: 0～0.1Mpa Maximum: 0-100Mpa Minimum negative pressure: -0.1Mpa Maximum negative pressure: -0.1～2.4Mpa |
|
Accuracy Class(Indication) |
1.0%;1.5% |
|
Accuracy Class(Setting) |
4% |
|
Quantity of Contacts |
1 or 2, (Φ 100mm, 3 or 4 contacts available) |
|
Maximum Working Voltage |
AC380V or DC220V |
|
Maximum Current |
1A |
|
Contact Power |
30VA |
|
Connection Size |
M20 × 1.5 Customized connection |
|
Protection Class |
IP 65 |
|
Temperature Effects |
When temperature deviates from 20 ± 5℃, the error of set point is not more than 0.6%/10℃ |
Dimension:
Leave A MessageElectric contact pressure gauges 4 inch dial with all stainless steel bottom connection,which is for gaseous, liquid, and corrosive media or corrosive environment
4" All stainless steel bottom connection explosion proof electric contact pressure gauges, which is for gaseous, liquid, and corrosive media or corrosive environment
4" All stainless steel bottom connection diaphragm electric contact pressure gauges, which is particularly used for safety process industry
4" All stainless steel back connection panel mount magnitive electric contact pressure gauges, which is for gaseous, liquid, and corrosive media or corrosive environment
4" All stainless steel back connection with flange electric contact pressure gauges, which is for gaseous, liquid, and corrosive media or corrosive environment
4 inch stainless steel case brass connectionvibration-proof electric contact pressure gauges, which is for gaseous, liquid, and corrosive media or corrosive environment
4" All stainless steel back connection electrical contact pressure gauge, which is for gaseous, liquid, and corrosive media or corrosive environment
4" Black steel case bottom connection electric pressure gauge, which is for gaseous, liquid, and corrosive media or corrosive environment
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
