Case material:
Stainless steelWetted Parts:
Stainless steel 304/316/316LStandard:
EN837-1or DINCertification:
ISO9001Quality:
100% InspectionOptions/Notes:
Lower or back entry;panel mount or surface mount.

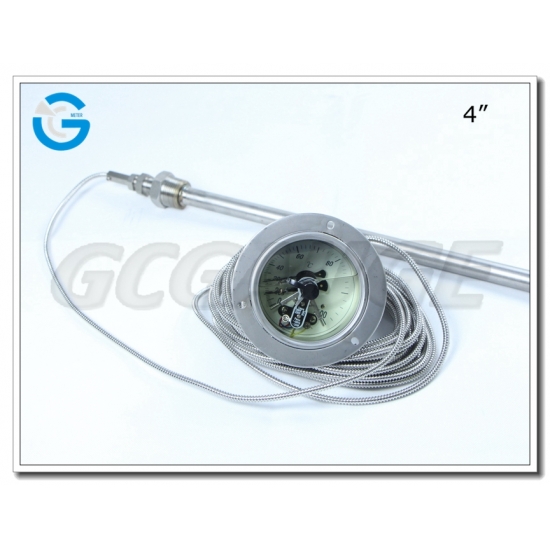

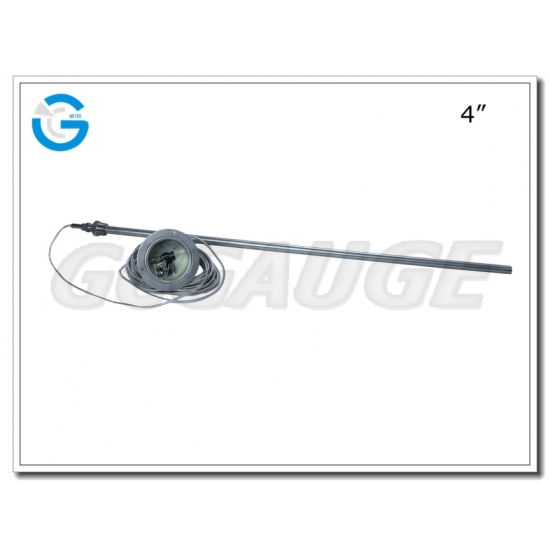

Capillary type electric contact temperature gauges
Brief:
For capillary type gauges, we havecapillary type bimetal thermometersand electric contact temperature gauges.
Application & Features:
l Stainless steel case
l Vapour actuated
l Panel mounted (Front Flange or U-Clamp)
l Dual scale (°F & °C)
l Max. 50m capillary length
l Freezers, walk-in refrigeration units, food storage cabinets, heating and ventilation. Widely specified in the HVAC, commercial and mechanical industry segments
Specifications:
|
Dial |
2.5", 4”, 6” |
|
Case |
Stainless steel with flange or U-clamp |
|
Lens |
Common glass or Safety glass,PC |
|
Ranges |
Minimum: 0～0.1Mpa Maximum: 0-100Mpa Minimum negative pressure: -0.1Mpa Maximum negative pressure: -0.1～2.4Mpa |
|
Accuracy Class(Indication) |
2.5% |
|
Operating Temperature |
maximum 75% of full scale value |
|
Quantity of Contacts |
1 or 2, (Φ 100mm, 3 or 4 contacts available) |
|
Maximum Working Voltage |
AC380V or DC220V |
|
Maximum Current |
1A |
|
Contact Power |
30VA |
|
Connection Size |
M20 × 1.5 Customized connection |
|
Protection Class |
IP 65 |
|
Immersion tube Immersion diameter Capillary diameter |
SS304 or SS316L, max. length 1m 6.35mm, 8mm, 10mm, 12mm MAX. 50m |

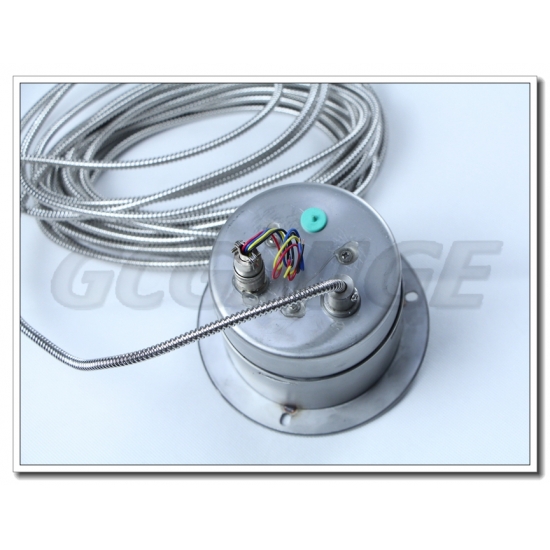

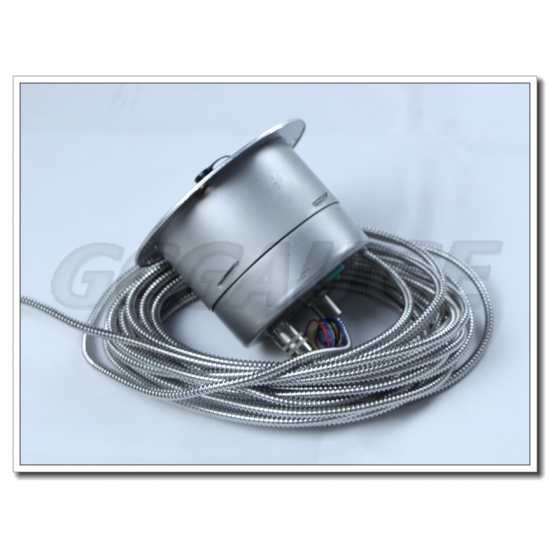

Product Pictures:
