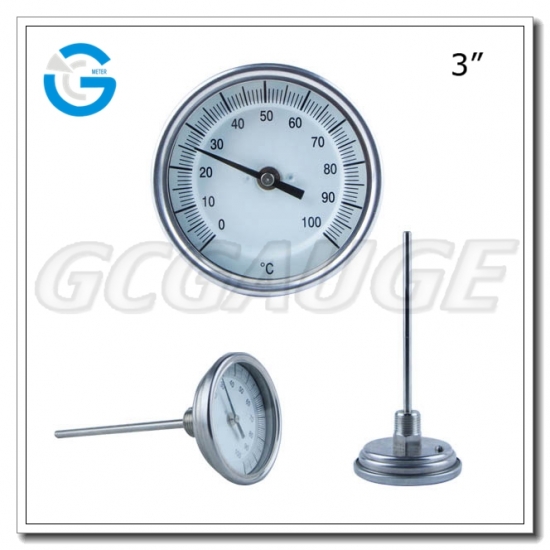

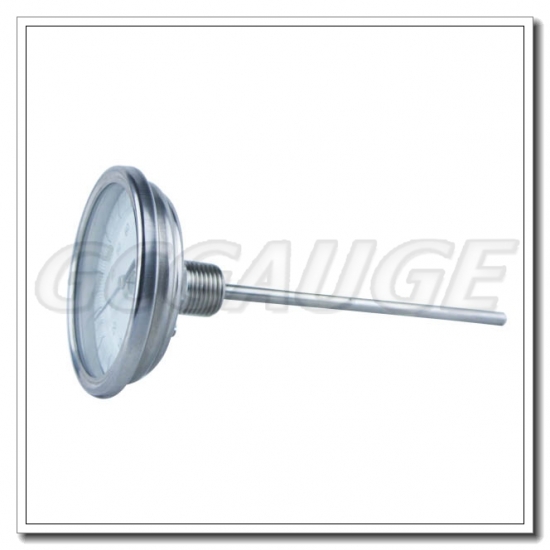

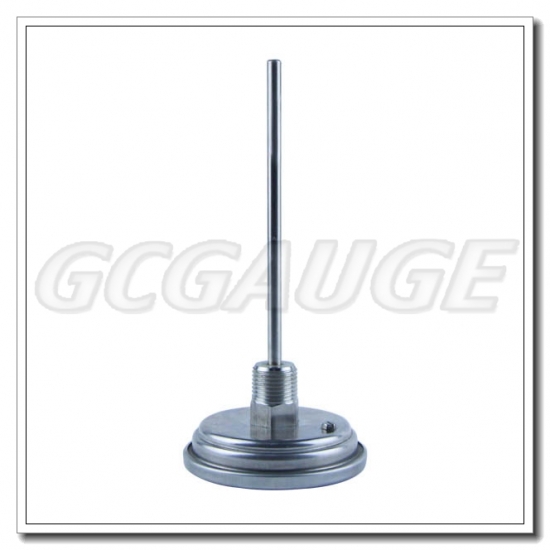

Bimetal industrial temperature thermometers 3 inch dial face with stainless steel back connection
Brief:
For bimetal thermometer, we have crimped type,wika bayonet type for your choice, also there're bottom connection , back connection and adjustable connection for option.Regarding the size, we have 2" thermometer, 2.5" thermometer, 3" thermometer,4" thermometer, 6" thermometer for you to choose.
Application & Features:
l A general purpose, tamper-proof, 304 stainless steel thermometer
l hermetically sealed case
l Bi-metallic sensing element for reliable readings
l Back connected
l Stem length from 2.5" (63mm) and up
l ±1% accuracy
l Food processing and beverage industries
Specifications:
|
Dial |
2.5”,3",4”, 6” dish shaped dial, aluminum with black markings |
|
pointer |
Brass, painted black |
|
Case/Ring |
AISI 304 SS |
|
Welding |
TIG |
|
Lens |
Pc,hermetically sealed |
|
Maximum operating pressure |
125 psi (861 kPa) |
|
Stem |
AISI 316 SS Ø12mm, Ø6.35mm, Ø8mm, Ø10mm |
|
Operating Temperature |
maximum 75% of full scale value |
|
Connection |
1/2” NPT, centre back |
|
Ambient/Process Temperature |
Maximum 248°F (120°C) |
|
Movement |
Bi-metallic coil |
|
Enclosure Rating |
IP68 |
