Industrial Pressure Gauges
Products
Home /Pressure Gauge Series /

Medical System Pressure Gauges

/Medical system pressure gauges with high and low pressure

Medical system pressure gauges with high and low pressure

Medical system pressure gauges with high and low pressure, which is used medical company.

  • Case material:

    Stainless steel
  • Wetted Parts:

    Brass
  • Standard:

    EN837-1or DIN
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
  • Options/Notes:

    Lower or back entry;panel mount or surface mount.
Share To :
New Products
  • Product Details

Medical system pressure gauges with high and low pressure


Brief:

For medical pressure gauges, we also have medical manometer with u-clamp.


Application & Features:

• Highly accurate reading of normal pressures

• Plastic or stainless steel case

• Chromed brass connector

• Ranges from-1bar/400bar

• Suitable for measuring gaseous media both corrosive and non-corrosive

• Used to measure natural gas pressure as well air flow indications and leak detection

• Vacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators



Specifications:

Dial:

1.5",2", 2.5"

Case:

304SS or plastic

Lens:

Polycarbonate

Socket:

chrome plated brass

Connection:

NPT,BSP,BSPT,M, standard

Movement:

Standard brass alloy, corrosion proof 316 stainless steel

Pointer:

Aluminum

Welding:

Tin  welding

Working Pressure:

75% of full scale value

Over-Pressure Limit:

30% of full scale value

Ambient Temperature

-40°F to 150°F (-40°C to 65°C)

Accuracy

±2.5%

Enclosure Rating

IP52

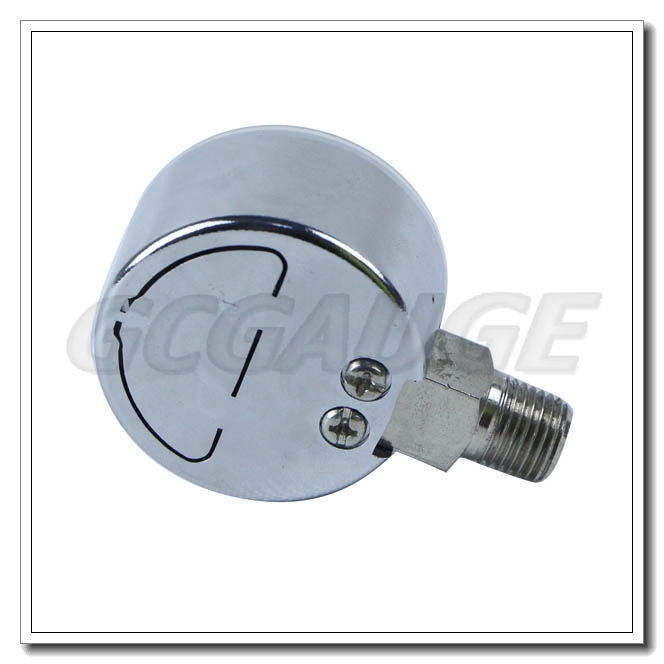

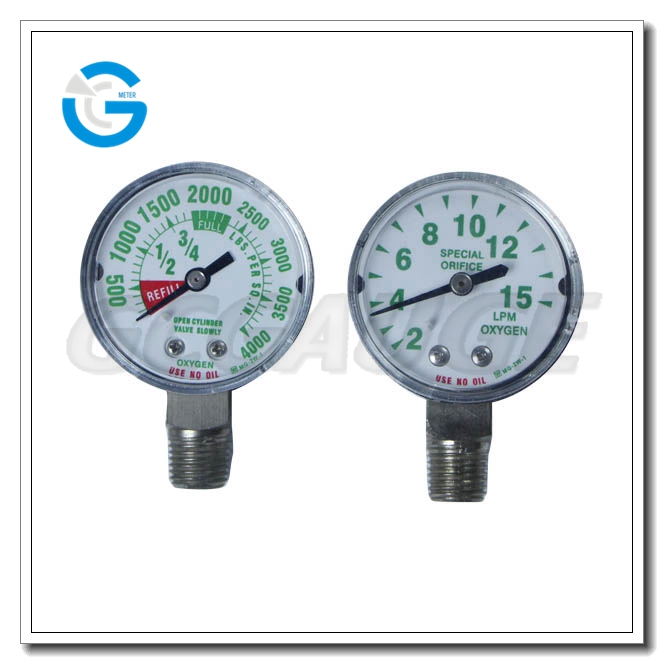

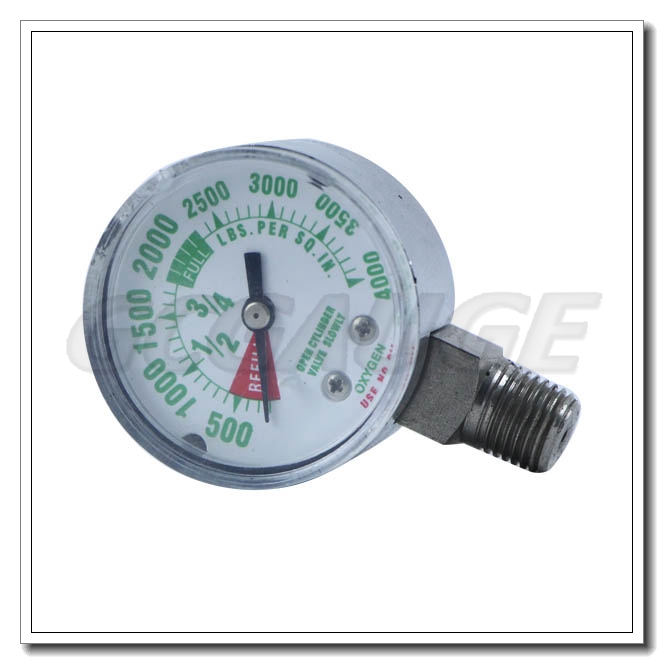

Product Pictures:
