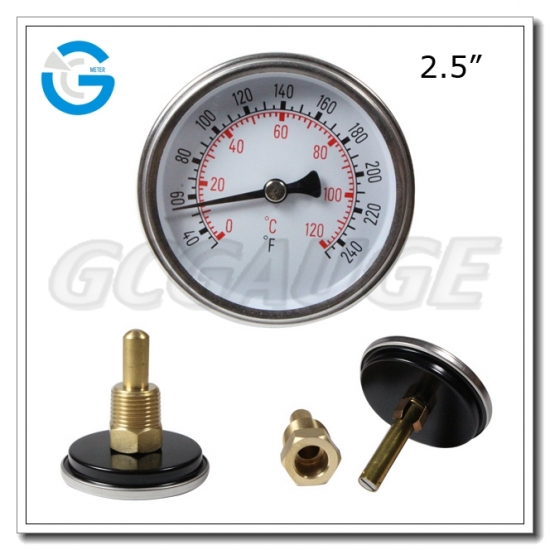

2.5 inch black steel back connection crimped ring bimetallic thermometers

  • Black steel
  • Brass
  • EN837-1or DIN
  • ISO9001
  • 100% Inspection
  • Lower or back entry;panel mount or surface mount.

Detail

2.5 inch black steel back connection crimped ring bimetallic thermometers

Brief:



For bimetallic thermometers, we have crimped type, wika bayonet type for your choice, also there're bottom connection , back connection and adjustable connection for option.Regarding the size, we have  2" dial thermometer, 2.5" dial thermometer, 3" dial thermometer, 4" dial thermometer, 6" dial thermometer for you to choose.


Application & Features:



l  A durable and accurate thermometer with a rigid connection

l  Separable thermowell

l  back mounting crimped ring

l  Bi-metallic element

l  Dual scale (°F & °C)

l  1/4" NPT process connection

Hot water lines, boilers and hydronic heating


Specifications:




Dial

2.5”,4” dish shaped dial, aluminum with black markings

Case

Black Steel

Lens

Glass

Ring

Steel chrome plated

Stem

Brass Ø12mm, Ø6.35mm, Ø8mm, Ø10mm

Movement

Bi-metallic coil

Pointer

Aluminum, painted black

Over Range Enclosure Rating

±25% of full scale value

Reset

Standard

Ambient Temperature

32°F to 158°F (0°C to 70°C) and also can be made by your requirement

Process temperature

32°F to 250°F (0°C to 120°C) and also can be made by your requirement

Accuracy

±2% of full scale

Enclosure Rating

IP50

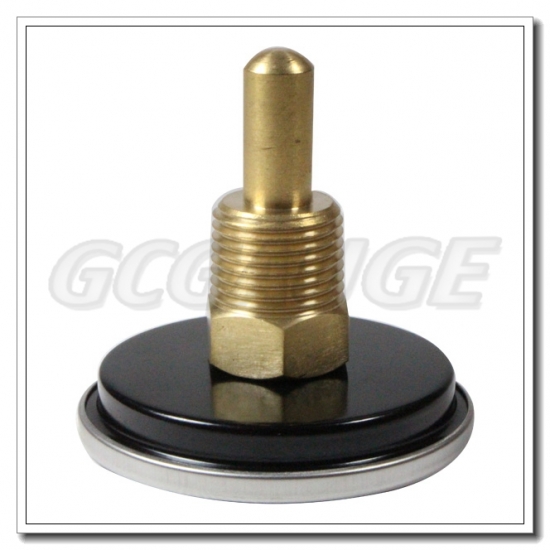

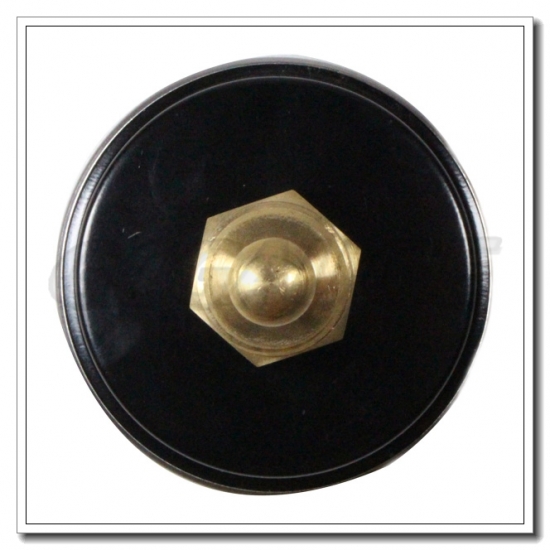

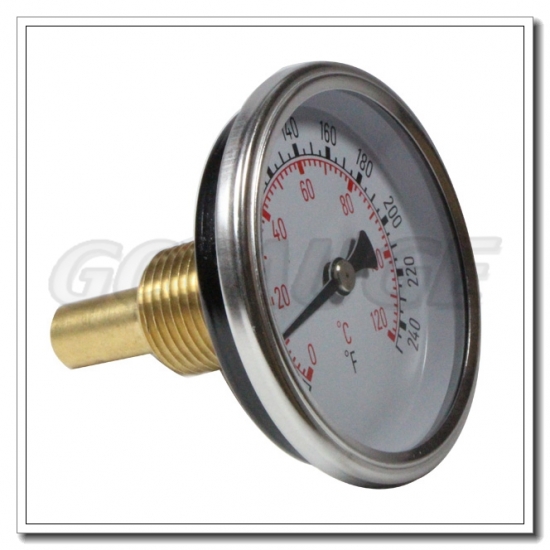

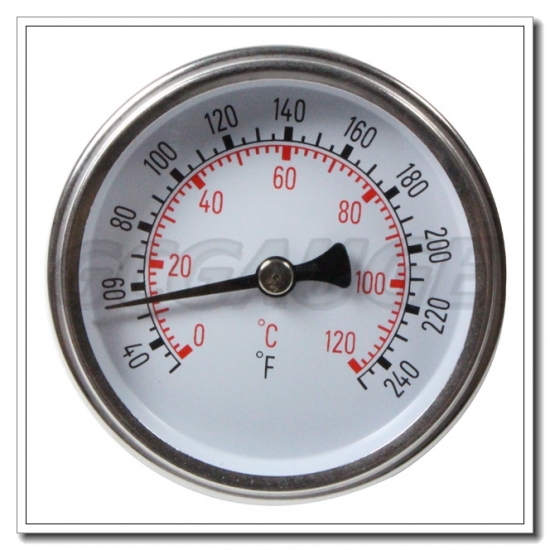

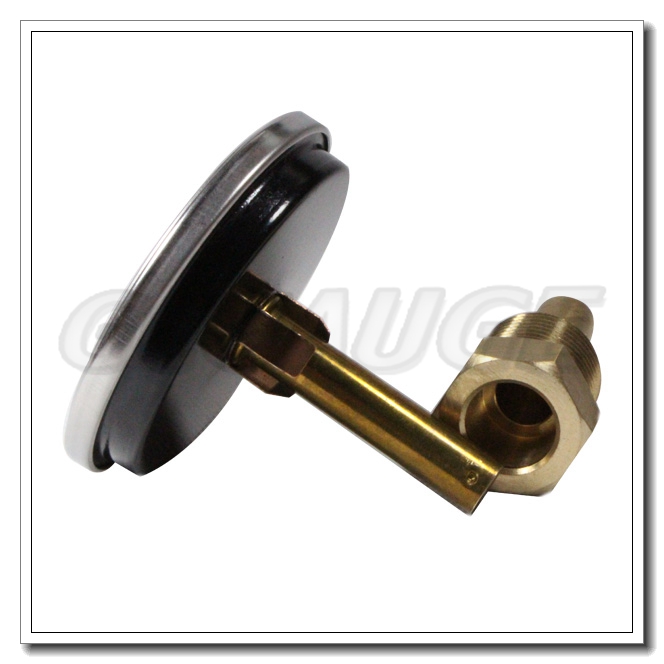

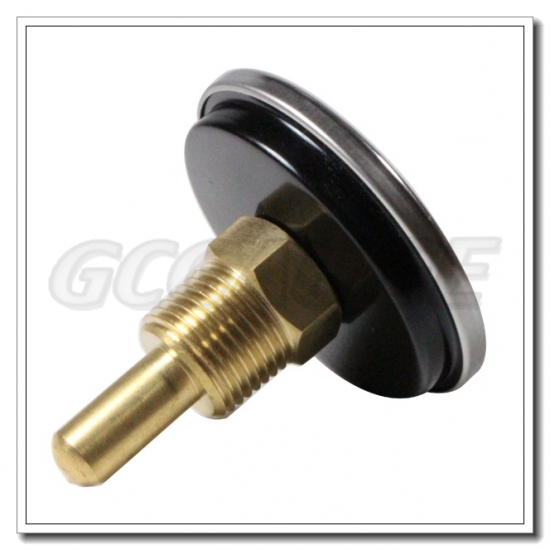

Product Pictures:
