Case material:
Stainless steelWetted Parts:
Stainless steel 304/316/316LStandard:
EN837-1or DINCertification:
ISO9001Quality:
100% InspectionOptions/Notes:
Lower or back entry;panel mount or surface mount.
3 inch stainless steel adjustable bayonet ringindustrial digital thermometers
Brief:
For digital thermometers, we have bottom connection digital outdoor thermometer, back connection digital outdoor thermometer and adjustable connection digital outdoor thermometer for option.
Application & Features:
l A solar powered digital thermometer that provides a local temperature reading to 1/10 of a degree
l 304 stainless steel case, stem and socket
l Hermetically sealed thermometer case
l Minimum required light 35 Lux
l Ceramic resistance sensing element
l 1/2”NPT; fully adjustable, bottom or back connection optional
l 4" (100mm), 6" (150mm) and 9" (230mm) stem lengths
l Fahrenheit or Celsius scales available
l Temperature sensing for heating, ventilation, air conditioning, food processing, waste water, industrial processes or compressors
Specifications:
|
Dial |
3” (75mm) ,4”(100mm) |
|
Display |
LCD |
|
Case/Ring |
304 SS case , bezel, hermetically sealed |
|
Sensor |
Ceramic resistance |
|
Lens |
Glass (3mm thickness) |
|
Lux Rating |
35 Lux |
|
Stem |
304 SS, 0.25” diameter with lengths 2.5” (63mm) to 24” (600mm) |
|
Read Interval |
Every 6 seconds |
|
Connection |
1/2” NPT; fully adjustable, bottom or back optional |
|
Ambient/Process Temperature |
-4°F to 122°F(-20°C to 50°C) |
|
Temperature Range |
-50 to 930°F (-50 to 500°C)Temperature can be made according to customer’s requirements |
|
Accuracy |
±1% |
|
Enclosure Rating |
NEMA4 / IP68 |

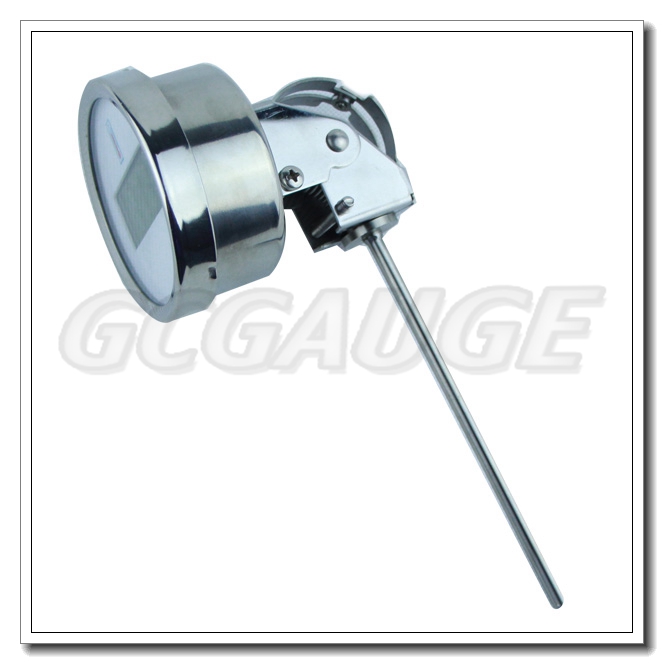

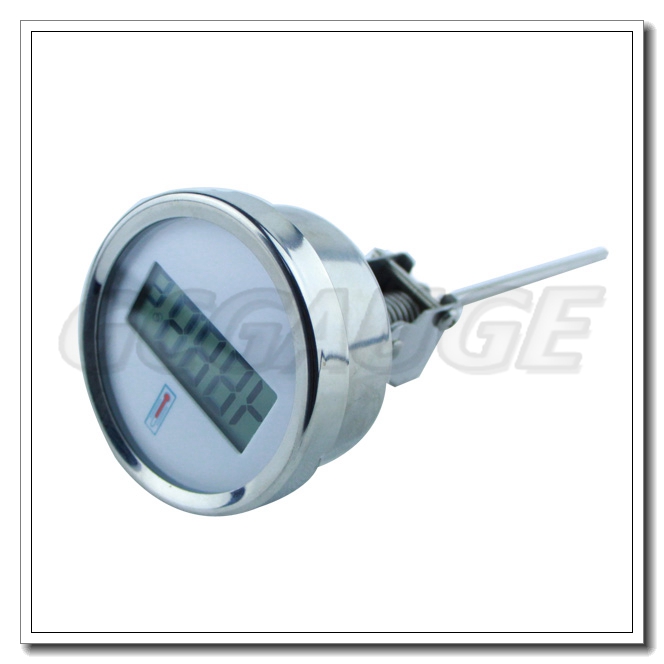

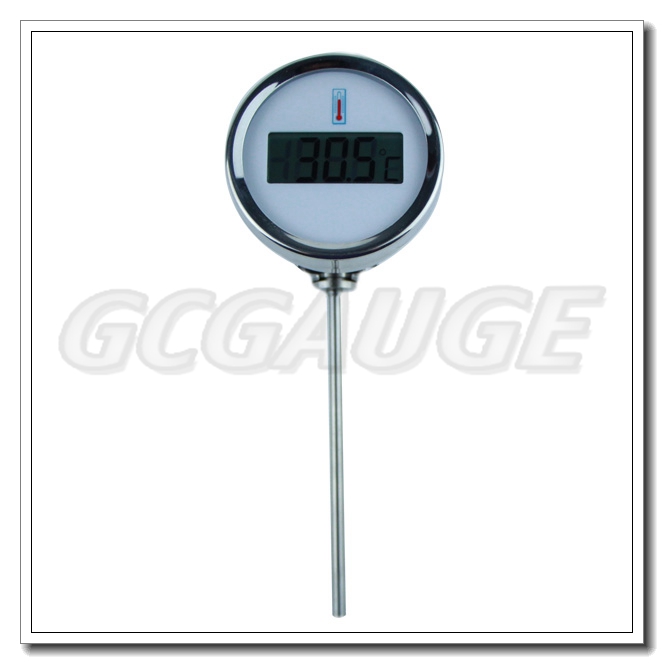

Product Pictures:
Our company's main products include: Economy Pressure Gauge, All Stainless Steel Pressure Gauge, Electric Contact Pressure Gauge, Capsule Low Pressure Gauge, Vacuum Gauge, Oxygen Medical Pressure Gauge, High Pressure Gauge, Spiral Miniature Pressure Gauge, Fire Extinguisher Gauge, Medical Instrument, Diaphragm Pressure meters, Differential Pressure Gauges, Industrial Glass Thermometers, Bimetal Thermometers ,Transmitter, Flow meters ,etc. Continually developing more and more products to adapt to the different requirements from the customers.
Leave A Message4 inch stainless steel bottom connection instant read industrial digital thermometerwhich is used inFood processing and beverage industries
3 inch stainless steel bottom connection bayonet ring industrial digital thermometers ,which is used inFood processing and beverage industries
3 inch stainless steel back connection bayonet ring industrial digital thermometers,which is used inFood processing and beverage industries
3 inch stainless steel back connection crimped ring solar industry digital thermometers,which is used inFood processing and beverage industries
3 inch stainless steel adjustable crimped ring solar industry digital thermometers,which is used inFood processing and beverage industries
4 Inch diaphragm seal pressure gauges with all stainless steel material,are built for measuring low pressure of gas or liquid. low pressure of gas or liquid in chemical , petroleum, textile industries, where strong corrosion and viscous media ( non-crystallized ) are a concern.
YS2 Mini digital display pressure transmitter
adjustable angle bimetal thermometers,which is usedinFood processing and beverage industries.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
