Case material:
Stainless steelWetted Parts:
Stainless steel 304/316/316LStandard:
EN837-1or DINCertification:
ISO9001Quality:
100% InspectionOptions/Notes:
Lower or back entry;panel mount or surface mount.

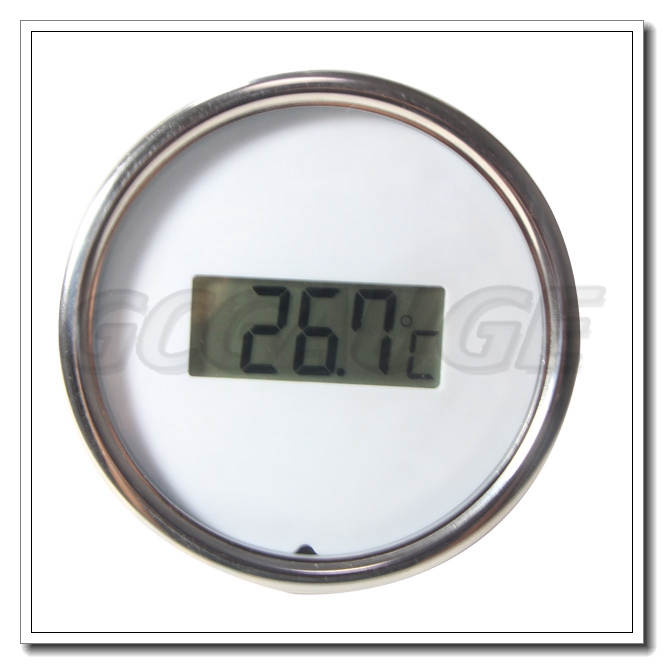

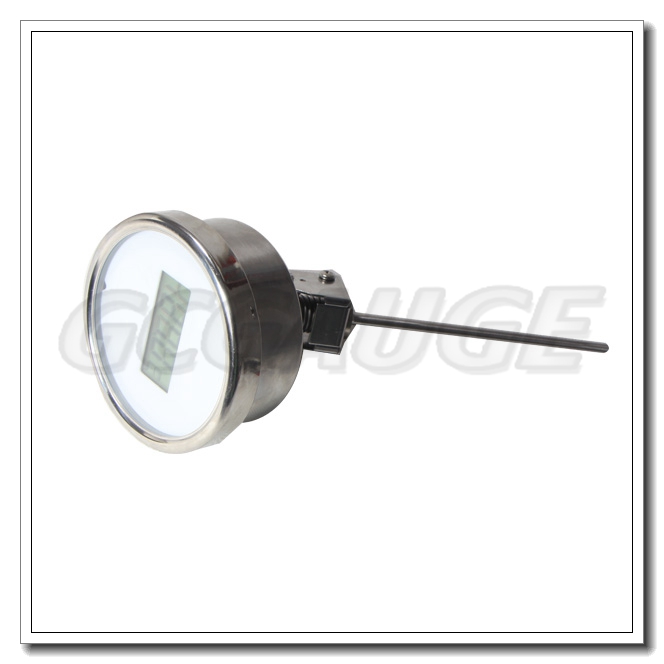

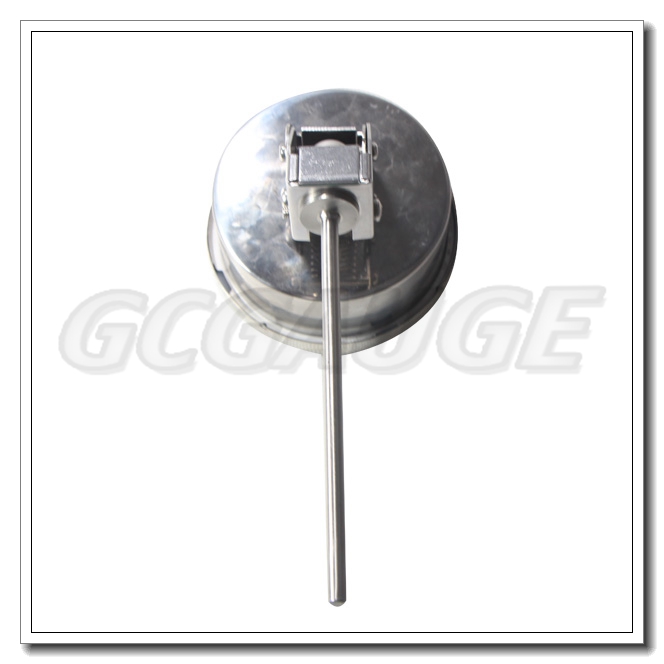

4 inch stainless steel bottom connection instant read industrial digital thermometer
Brief:
For digital thermometer, we havebottom connection , back connection and adjustable connection for option , Regarding the size, there're 3"digital thermometer, 4" digital thermometer for you to choose.
Application & Features:
l A solar powered digital thermometer that provides a local temperature reading to 1/10 of a degree
l 304 stainless steel case, stem and socket
l Hermetically sealed thermometer case
l Minimum required light 35 Lux
l Ceramic resistance sensing element
l 1/2”NPT; fully adjustable, bottom or back connection optional
l 4" (100mm), 6" (150mm) and 9" (230mm) stem lengths
l Fahrenheit or Celsius scales available
l Temperature sensing for heating, ventilation, air conditioning, food processing, waste water, industrial processes or compressors
Specifications:
|
Dial |
3” (75mm) ,4”(100mm) |
|
Display |
LCD |
|
Case/Ring |
304 SS case , bezel, hermetically sealed |
|
Sensor |
Ceramic resistance |
|
Lens |
Glass (3mm thickness) |
|
Lux Rating |
35 Lux |
|
Stem |
304 SS, 0.25” diameter with lengths 2.5” (63mm) to 24” (600mm) |
|
Read Interval |
Every 6 seconds |
|
Connection |
1/2” NPT; fully adjustable, bottom or back optional |
|
Ambient/Process Temperature |
-4°F to 122°F(-20°C to 50°C) |
|
Temperature Range |
-50 to 930°F (-50 to 500°C)Temperature can be made according to customer’s requirements |
|
Accuracy |
±1% |
|
Enclosure Rating |
NEMA4 / IP68 |
Product Pictures:
Leave A Message3 inch stainless steel bottom connection bayonet ring industrial digital thermometers ,which is used inFood processing and beverage industries
3 inch stainless steel back connection bayonet ring industrial digital thermometers,which is used inFood processing and beverage industries
3 inch stainless steel adjustable bayonet ring industrial digital thermometers,which is used inFood processing and beverage industries
3 inch stainless steel back connection crimped ring solar industry digital thermometers,which is used inFood processing and beverage industries
3 inch stainless steel adjustable crimped ring solar industry digital thermometers,which is used inFood processing and beverage industries
1.25" manometer for fire extinguisher, which is used for fire extinguishers.
2.5" Economy black steel bottom connection plating flipping cheap manometer, which is used in plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors.
High pressure gauges PSI 4 inch bottom connection stainless steel material 0-2900bar with 1/4 NPT, which is used in outdoor and severe ambient and process conditions, where harmful vibration and pulsation are present.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
