Home /Thermometer Series /

Digital Thermometers

/3 inch stainless steel back connection bayonet ring industrial digital thermometers

3 inch stainless steel back connection bayonet ring industrial digital thermometers

3 inch stainless steel back connection bayonet ring industrial digital thermometers,which is used inFood processing and beverage industries
  • Case material:

    Stainless steel
  • Wetted Parts:

    Stainless steel 304/316/316L
  • Standard:

    EN837-1or DIN
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
  • Options/Notes:

    Lower or back entry;panel mount or surface mount.
Share To :
  • Product Details

3 inch stainless steel back connection bayonet ring industrial digital thermometers


Brief:

For digital thermometers, we have bottom connection digital temperature thermometer , back connection digital temperature thermometer  andadjustableconnection digital temperature thermometer for option.


Application & Features:

l A solar powered digital thermometer that provides a local temperature reading to 1/10 of a degree

304 stainless steel case, stem and socket

Hermetically sealed thermometer case

Minimum required light 35 Lux

Ceramic resistance sensing element

1/2”NPT; fully adjustable, bottom or back connection optional

4" (100mm), 6" (150mm) and 9" (230mm) stem lengths

Fahrenheit or Celsius scales available

l  Temperature sensing for heating, ventilation, air conditioning, food processing, waste water, industrial                     processes or compressors


Specifications:

Dial

3” (75mm) ,4”(100mm)

Display

LCD

Case/Ring

304 SS case , bezel, hermetically sealed

Sensor

Ceramic resistance

Lens

Glass (3mm thickness)

Lux Rating

35 Lux

Stem

304 SS, 0.25” diameter with lengths 2.5” (63mm) to 24” (600mm)

Read Interval

Every 6 seconds

Connection

1/2” NPT;  fully adjustable, bottom or back optional

Ambient/Process Temperature

-4°F to 122°F(-20°C to 50°C)

Temperature Range

-50 to 930°F (-50 to 500°C)Temperature can be made according to customer’s requirements

Accuracy

±1%

Enclosure Rating

NEMA4 / IP68

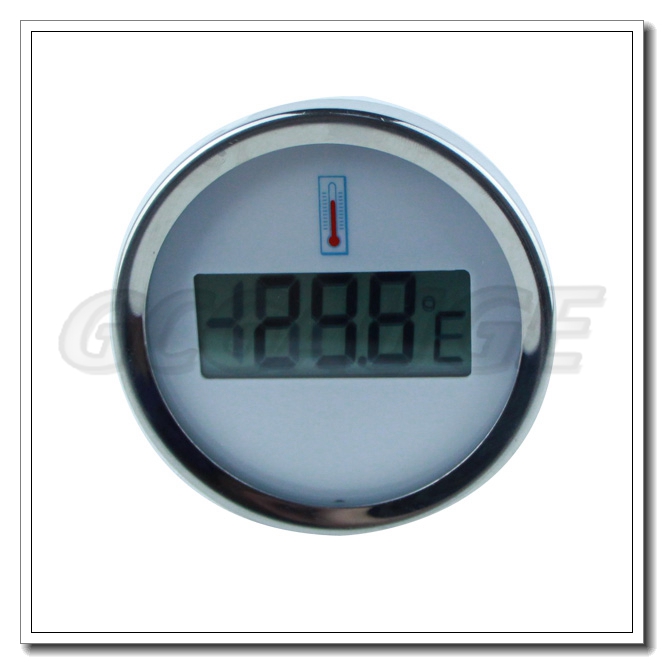

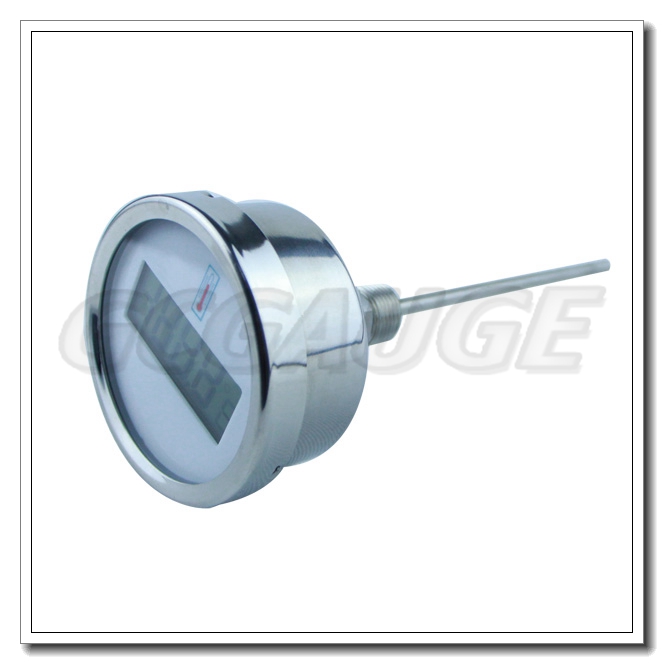

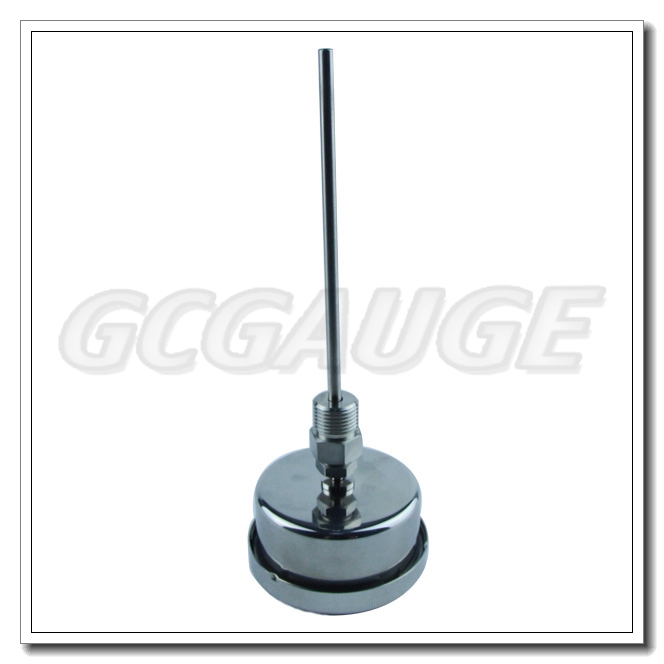

 Product Pictures:
