Case material:
Stainless steelWetted Parts:
Stainless steel 304/316/316LStandard:
EN837-1or DINCertification:
ISO9001Quality:
100% InspectionOptions/Notes:
Lower or back entry;panel mount or surface mount.

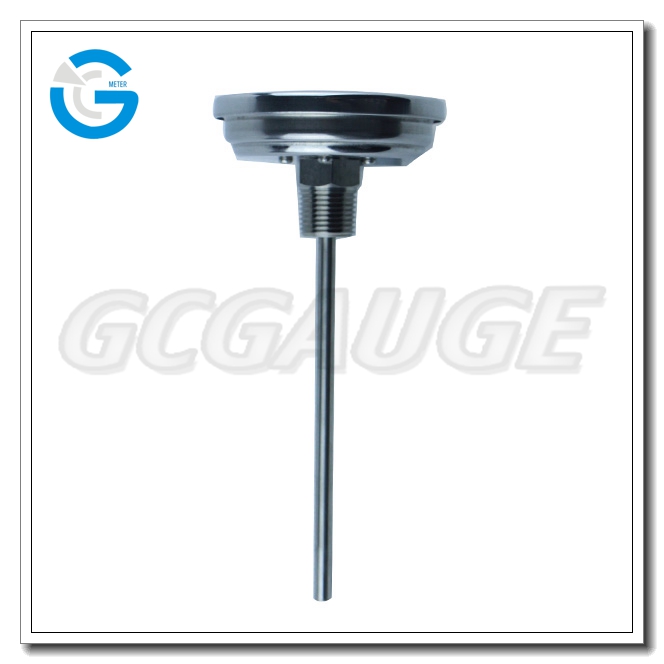

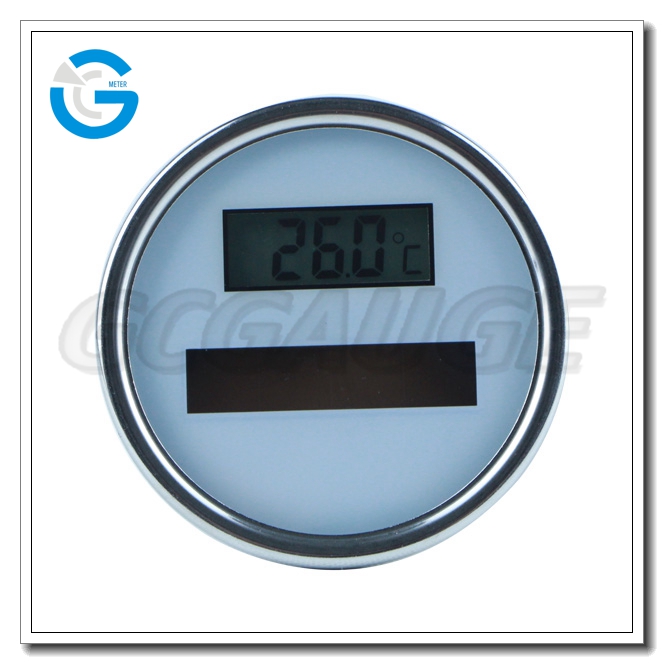

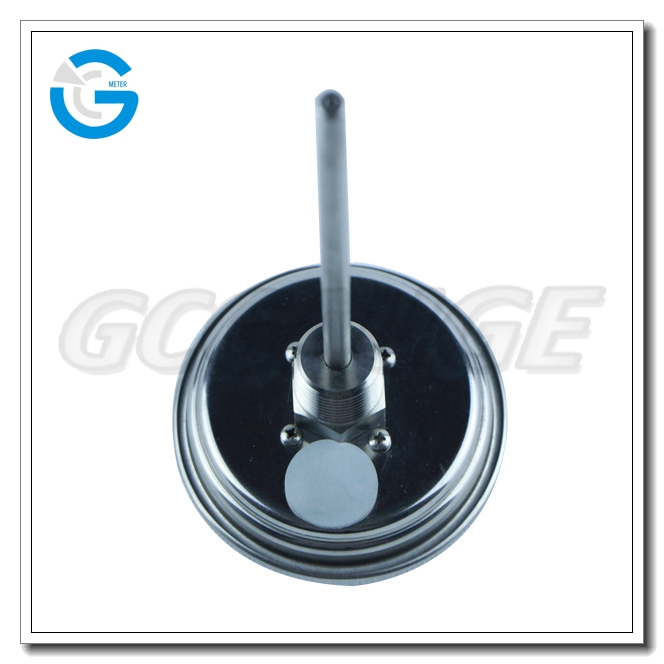

3 inch stainless steel back connection crimped ring solar industry digital thermometers
Brief:
For digital thermometers, we have bottom connection digital temperature thermometer , back connection digital temperature thermometer andadjustableconnection digital temperature thermometer for option.
Application & Features:
l A solar powered digital thermometer that provides a local temperature reading to 1/10 of a degree
l 304 stainless steel case, stem and socket
l Hermetically sealed thermometer case
l Minimum required light 35 Lux
l Ceramic resistance sensing element
l 1/2”NPT; fully adjustable, bottom or back connection optional
l 4" (100mm), 6" (150mm) and 9" (230mm) stem lengths
l Fahrenheit or Celsius scales available
l Temperature sensing for heating, ventilation, air conditioning, food processing, waste water, industrial processes or compressors
Specifications:
|
Dial |
3” (75mm) ,4”(100mm) |
|
Display |
LCD |
|
Case/Ring |
304 SS case , bezel, hermetically sealed |
|
Sensor |
Ceramic resistance |
|
Lens |
Glass (3mm thickness) |
|
Lux Rating |
35 Lux |
|
Stem |
304 SS, 0.25” diameter with lengths 2.5” (63mm) to 24” (600mm) |
|
Read Interval |
Every 6 seconds |
|
Connection |
1/2” NPT; fully adjustable, bottom or back optional |
|
Ambient/Process Temperature |
-4°F to 122°F(-20°C to 50°C) |
|
Temperature Range |
-50 to 930°F (-50 to 500°C)Temperature can be made according to customer’s requirements |
|
Accuracy |
±1% |
|
Enclosure Rating |
NEMA4 / IP68 |
Product Pictures:
Leave A Message4 inch stainless steel bottom connection instant read industrial digital thermometerwhich is used inFood processing and beverage industries
3 inch stainless steel bottom connection bayonet ring industrial digital thermometers ,which is used inFood processing and beverage industries
3 inch stainless steel back connection bayonet ring industrial digital thermometers,which is used inFood processing and beverage industries
3 inch stainless steel adjustable bayonet ring industrial digital thermometers,which is used inFood processing and beverage industries
3 inch stainless steel adjustable crimped ring solar industry digital thermometers,which is used inFood processing and beverage industries
Bimetal dial thermometers 50mm back entry without thread,which is usedinFood processing and beverage industries
2.5" Economy black steel bottom mounted snap-in lens pressure gauges suppliers, which is used in plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors.
Medical oxygen spiral tube pressure gauge, which is used for medical systems.
