4 inch black steel bottom connection stainless steel stem bayonet ring bimetallic thermometers

  • Black steel
  • Stainless steel 304/316/316L
  • EN837-1or DIN
  • ISO9001
  • 100% Inspection
  • Lower or back entry;panel mount or surface mount.

Detail

4 inch black steel bottom connection stainless steel stem bayonet ring bimetallic thermometers


Brief:



For bimetallic thermometers, we have crimped type, wika bayonet type for your choice, also there're bottom connection professional  thermometer , back connection professional  thermometer and adjustable connection professional  thermometer for option , 63mm and 100mm with option of panel mount or surface mount, 40mm, 50mm, 63mm with option of U-clamp with stainless steel crimped ring.


Application & Features:



l  A durable and accurate thermometer with a rigid connection

l  Separable thermo well

l  Back mounting DIN outside bayonet ring

l  Bi-metallic element

l  Dual scale (°F & °C)

l  1/2" NPT process connection

Hot water lines, boilers and hydronic heating


Specifications:




Dial

4”,6” dish shaped dial, aluminum with black markings

Case

Black Steel

Lens

Glass

Ring

Steel chrome plated

Stem

Stainless steel

Movement

Bi-metallic coil

Pointer

Aluminum, painted black

Over Range Enclosure Rating

±25% of full scale value

Reset

Standard

Ambient Temperature

32°F to 158°F (0°C to 70°C) and also can be made by your requirement

Process temperature

32°F to 250°F (0°C to 120°C) and also can be made by your requirement

Accuracy

±2% of full scale

Enclosure Rating

IP50

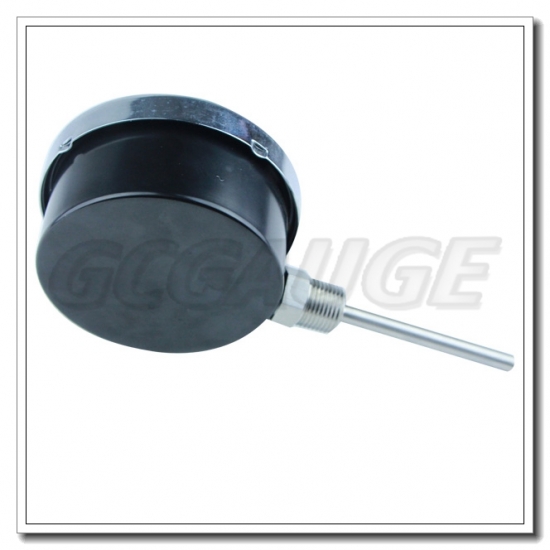

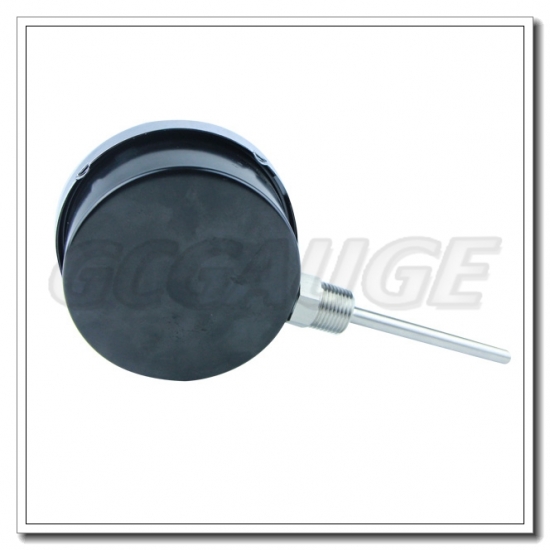

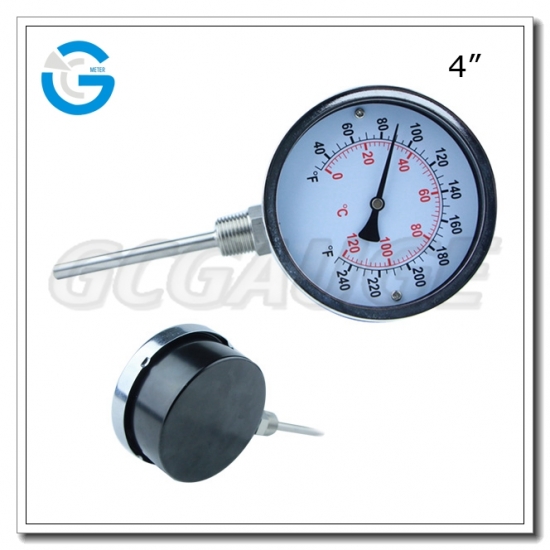

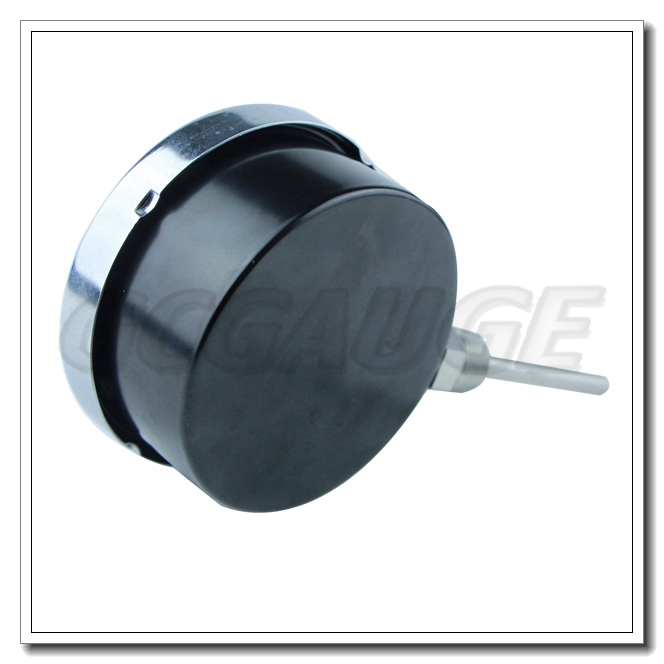

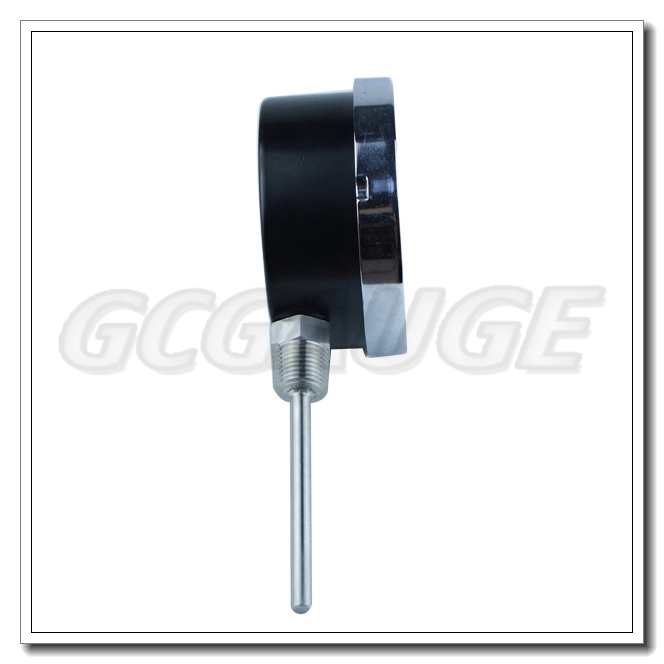

Product Pictures:
