Case material:
Stainless steelWetted Parts:
Stainless steel 304/316/316LCertification:
ISO9001Quality:
100% InspectionOptions/Notes:
Lower or back entry;panel mount or surface mount.

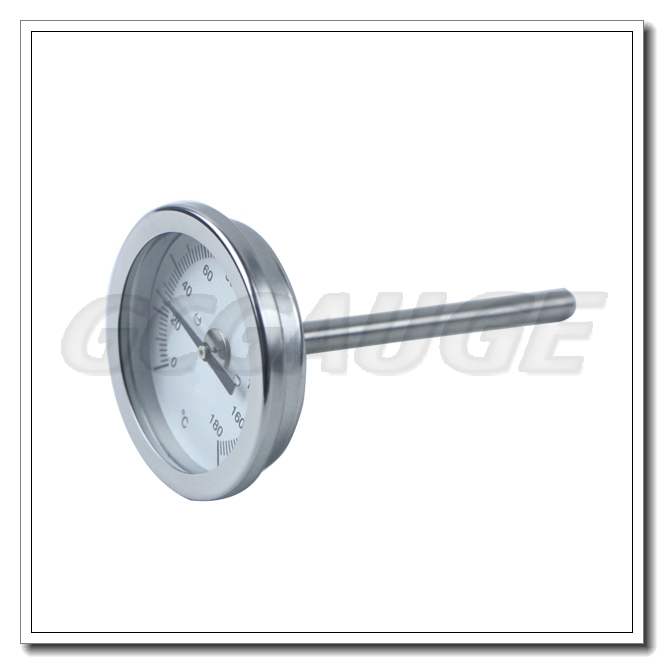

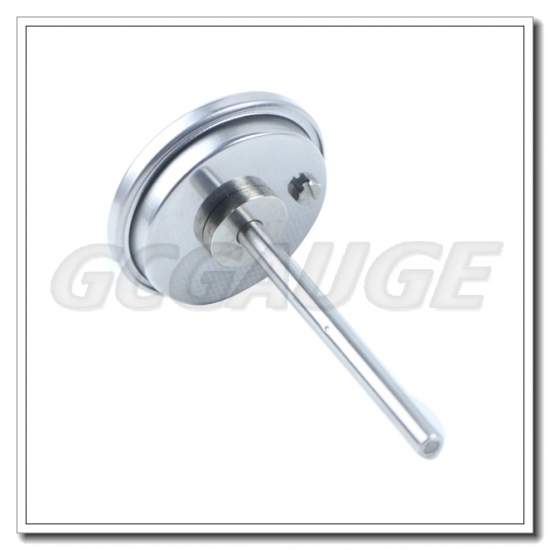

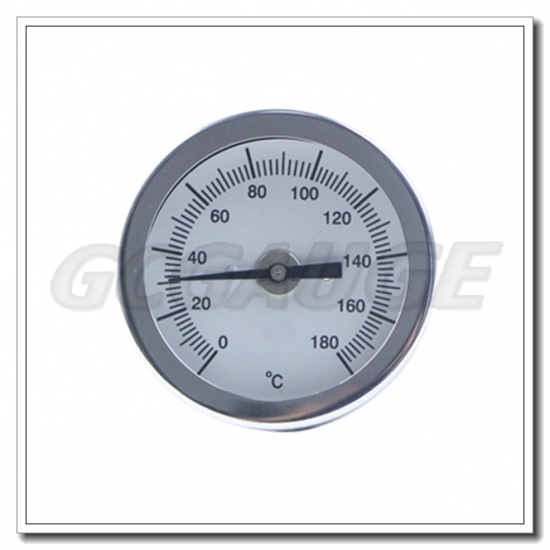

Bimetal dial thermometers 50mm back entry without thread
Brief:
For bimetallic thermometers, we have crimped type,wika bayonet type for your choice, also there're bottom connection,back connection stainless steel thermometer andadjustablethermometers for option , 63mm and 100mm with option of panel mount or surface mount, 40mm, 50mm, 63mm with option of U-clamp with stainless steel crimped ring.
Application & Features:
l A general purpose, tamper-proof, 304 stainless steel thermometer
l hermetically sealed case
l Bi-metallic sensing element for reliable readings
l Back connected
l Stem length from 2.5" (63mm) and up
l ±1% accuracy
l Food processing and beverage industries
Specifications:
|
Dial |
2”,2.5”,3",4”, 6” dish shaped dial, aluminum with black markings |
|
pointer |
Brass, painted black |
|
Case/Ring |
AISI 304 SS |
|
Welding |
TIG |
|
Lens |
Pc,hermetically sealed |
|
Maximum operating pressure |
125 psi (861 kPa) |
|
Stem |
AISI 316 SS Ø12mm, Ø6.35mm, Ø8mm, Ø10mm |
|
Operating Temperature |
maximum 75% of full scale value |
|
Connection |
1/2” NPT, centre back |
|
Ambient/Process Temperature |
Maximum 248°F (120°C) |
|
Movement |
Bi-metallic coil |
|
Enclosure Rating |
IP68 |
Product Pictures:
Leave A Message2.5 Inch capillary oven thermometers with flange,which is used inFood processing and beverage industries
4 inch stainless steel bottom connection probe outdoor dial bimetallic thermometers, which is used inFood processing and beverage industries.
4 inch stainless steel bottom connection long stem inside bayonet bimetallic thermometerswhich is used inFood processing and beverage industries
4 inch stainless steel waterproof every angle bimetallic thermometers with probe,which is used inFood processing and beverage industries
4 inch stainless steel back connection accurate bimetallic thermometers with inside bayonet ring,which is usedinFood processing and beverage industries
4 inch stainless steel bottom connection bayonet ring electric contact bimetallic thermometers,which is used inFood processing and beverage industries
4 inch stainless steel bottom connection bayonet ring hot water bimetallic thermometerswhich is used inFood processing and beverage industries
Capillary types thermometers with 4 inch dial stainless steel case flange type,which is used inFood processing and beverage industries.
