Piston differential pressure gauges / switches

4 1/2 inch Piston Differential pressure gauges / switches, which is used for measuring the difference between two pressure values.

  • Material:

    SS316L
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
Share To :
  • Product Details

Piston differential pressure gauges / switches


Brief:

For differential pressure gauges, we havebourdon tube pressure differential gaugesand diaphragm differential pressure gauges for your choice.


Application & Features:

Filters, hydraulic systems, water treatment plants, chemical plants, natural gas processing, heat exchangers, gasoline / diesel engine filters, pumps & valves, compressors.


 Specifications:

  • Cost effective and reliable.
  • Simple and compact design.
  • Easy to read dial instrument eliminates accumulated errors of two instrument Installations.
  • Differential pressure range: 0.6KG/cm2-7KG/cm2
  • Over pressure safe from either side to maximum working pressure.
  • Adjustable reed contact switching.
  • Indicating mechanism isolated from pressure chamber.
  • Only switch is also available.
  • Wide applications in air, gas and liquid media.
  • Main body: ss316L
  • Dial size: 4.5”/115mm, 6"/150mm
  •  Connection: 1/4”NPT
  •   Window: PC

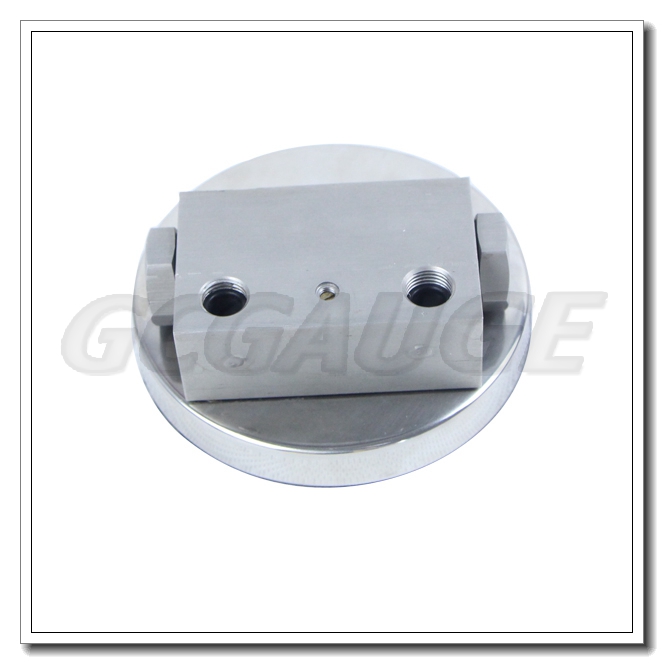

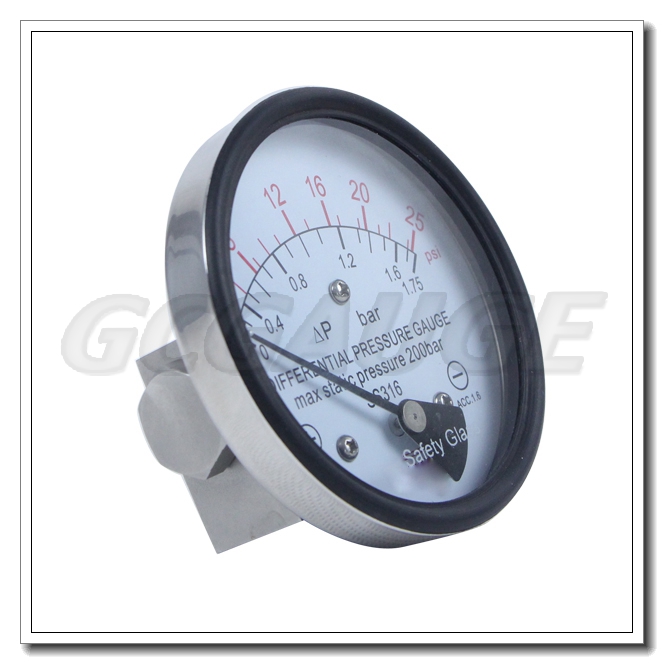

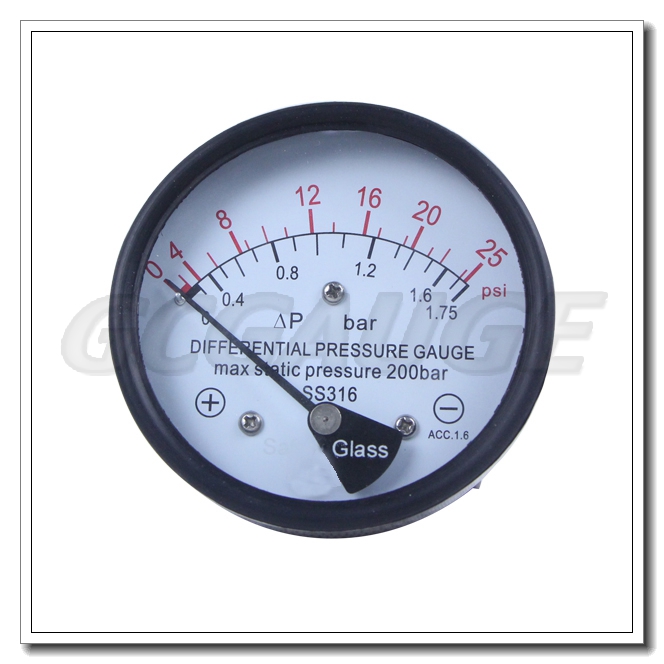

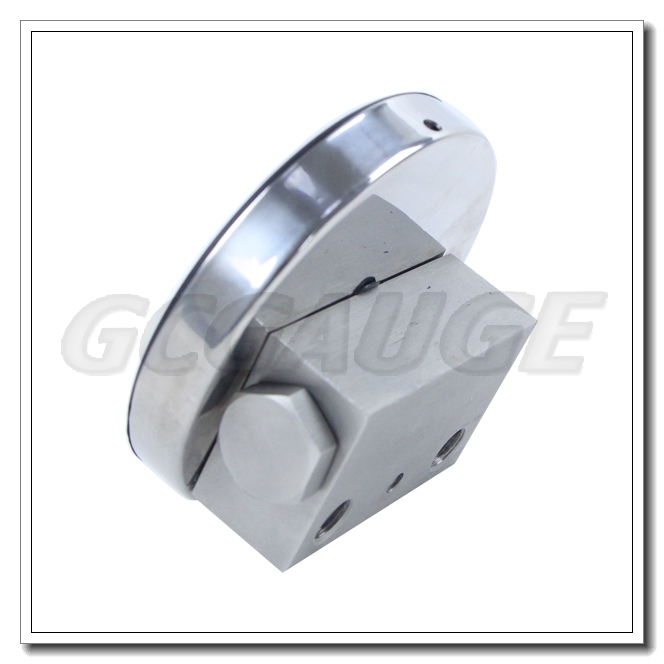

  Pictures:
