Industrial Pressure Gauges
Products
Home /Thermometer Series /

Bimetallic Thermometers

/Remote reading oven thermometers 4inch stainless steel with flange

Remote reading oven thermometers 4inch stainless steel with flange

Remote reading oven thermometers 4inch stainless steel with flange,which is used inFood processing and beverage industries.
  • Case material:

    Stainless steel
  • Wetted Parts:

    Stainless steel 304/316/316L
  • Standard:

    EN837-1or DIN
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
  • Options/Notes:

    Lower or back entry;panel mount or surface mount.
Share To :
New Products
  • Product Details

Remote reading oven thermometers 4inch stainless steel with flange


Brief:

For bimetallic thermometers, we have crimped type temperature gauge, bayonet typetemperature gauge for your choice, also there're bottom connection , back connection and adjustable connection for option , 63mm and 100mm with option of panel mount or surface mount, 40mm, 50mm, 63mm with option of U-clamp with stainless steel crimped ring.


Application & Features:

l An economical vapour thermometer for remote reading applications

Stainless steel case

Vapour actuated

Panel mounted (Front Flange or U-Clamp)

Dual scale (°F & °C)

Max. 50m capillary length

l Freezers, walk-in refrigeration units, food storage cabinets, heating and ventilation. Widely specified in the HVAC, commercial and mechanical industry segments


Specifications:

Dial

Aluminum, painted white with black markings

pointer

Aluminum, painted black

Case/Ring

4” (100mm): SS front flange, or U-Clamp case
2.5” (63mm): SS front flange, SS or steel painted black U-Clamp case

Welding

Silver alloy

Lens

PC

Immersion tube

SS304 or SS316L, max. length 1m

Capillary

9 feet (3m) nickel plated brass

Operating Temperature

maximum 75% of full scale value

Immersion diameter

6.35mm,8mm,10mm,12mm

Accuracy

±2.5% of full scale

Movement

Brass

Enclosure Rating

IP52

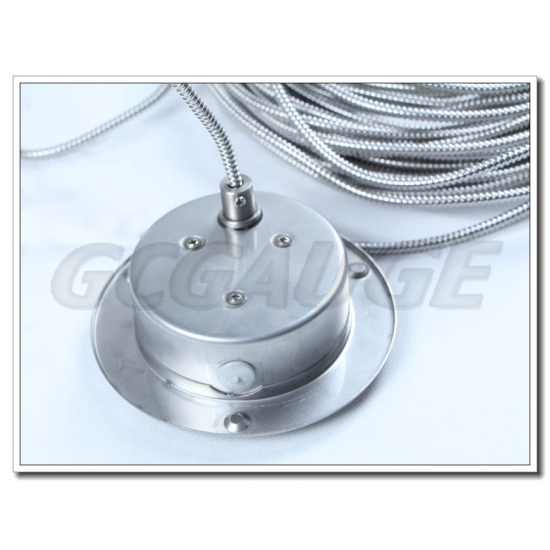

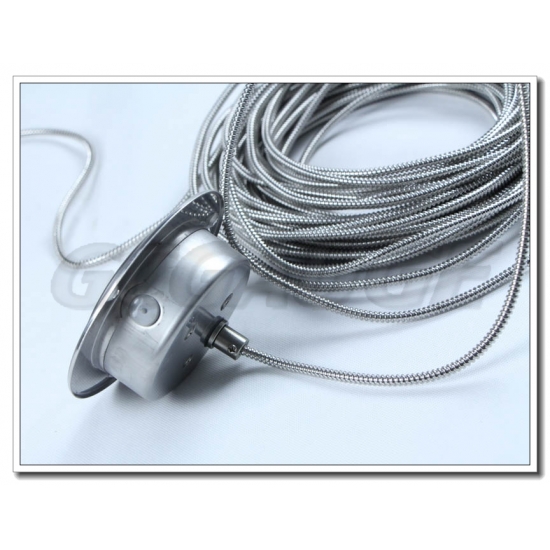

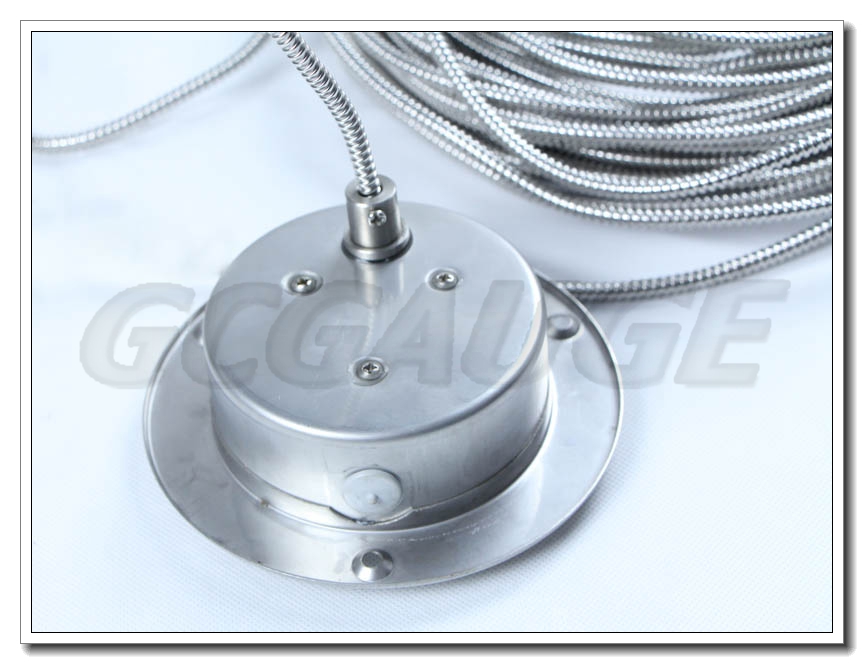

Product Pictures:
