6 inch stainless steel back connection crimped ring large bimetallic thermometers

  • Stainless steel
  • Stainless steel 304/316/316L
  • EN837-1or DIN
  • ISO9001
  • 100% Inspection
  • Lower or back entry;panel mount or surface mount.

Detail

6 inch stainless steel back connection crimped ring bimetallic thermometers


Brief:



For  bimetallic thermometers , we have crimped type, wika bayonet type for your choice, also there're bottom connection , back connection and adjustable connection for option ,Regarding the size, we have  2" bimetallic thermometers, 2.5" bimetallic thermometers, 3" bimetallic thermometers, 4" bimetallic thermometers, 6" bimetallic thermometers for you to choose.


Application & Features:



l  A general purpose, tamper-proof, 304 stainless steel thermometer

l  hermetically sealed case

l  Bi-metallic sensing element for reliable readings

l  Back connected

l  Stem length from 2.5" (63mm) and up

l  ±1% accuracy

l Food processing and beverage industries


Specifications:




Dial

2.5”,3",4”, 6” dish shaped dial, aluminum with black markings

pointer

Brass, painted black

Case/Ring

AISI 304 SS

Welding

TIG

Lens

Pc,hermetically sealed

Maximum operating pressure

125 psi (861 kPa)

Stem

AISI 316 SS Ø12mm, Ø6.35mm, Ø8mm, Ø10mm

Operating Temperature

maximum 75% of full scale value

Connection

centre back,no thread

Ambient/Process Temperature

Maximum 248°F (120°C)

Movement

Bi-metallic coil

Enclosure Rating

IP68

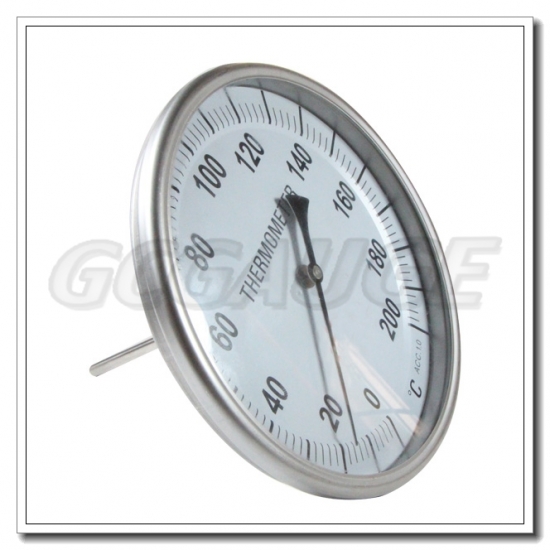

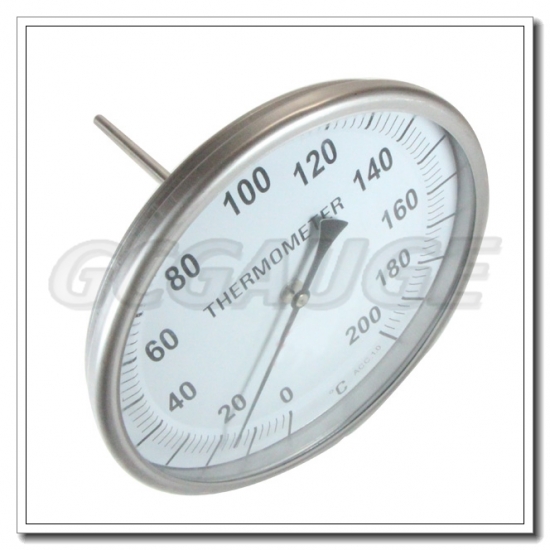

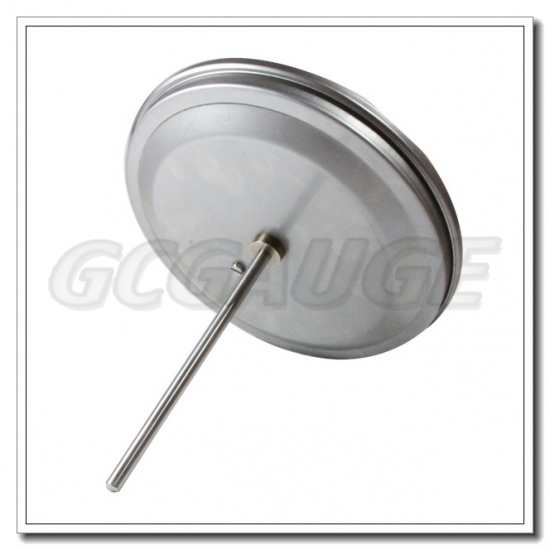

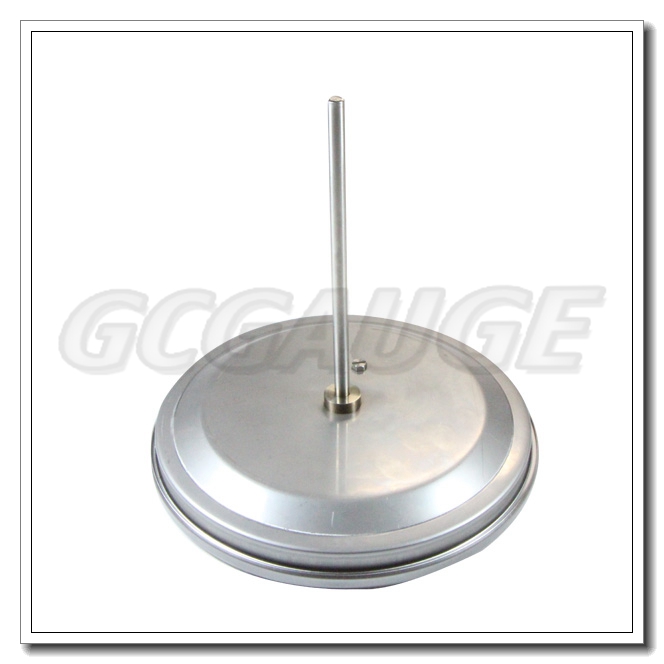

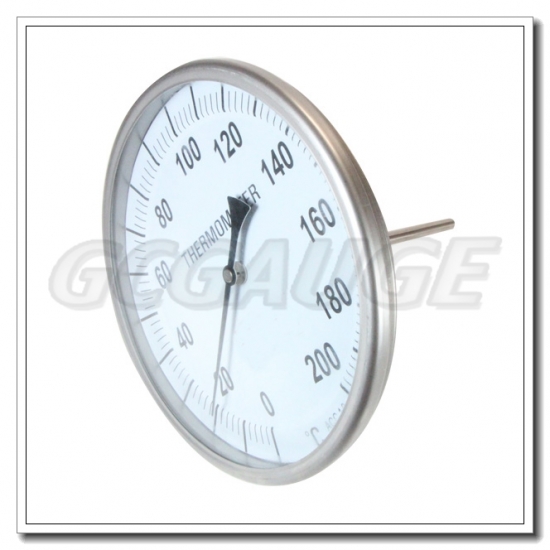

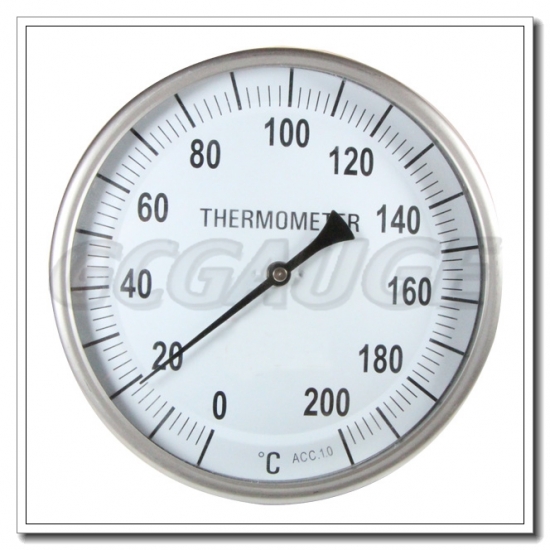

Product Pictures:
