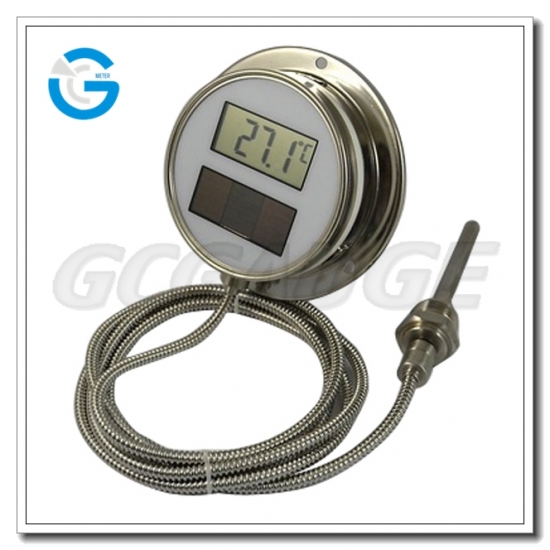

Capillary digital thermometer

Capillary digital thermometer,which is used inFood processing and beverage industries
  • Case material:

    Stainless steel
  • Wetted Parts:

    Stainless steel 304/316/316L
  • Certification:

    ISO9001
  • Quality:

    100% Inspection
  • Options/Notes:

    Lower or back entry;panel mount or surface mount.
Share To :
  • Product Details

Capillary digital thermometer


Brief:

For bimetallic thermometers, we have crimped type temperature gauge, bayonet typetemperature gauge for your choice, also there're bottom connection , back connection and adjustable connection for option , 63mm and 100mm with option of panel mount or surface mount, 40mm, 50mm, 63mm with option of U-clamp with stainless steel crimped ring.


Application & Features:

1. Large LCD Display

    3-digit LCD display, letter height 20mm, is employed in our thermometers. It’s easy to read. Resolution is 0.1C.


2. Available in both Celsius and Fahrenheit

    Our thermometers are available in Celsius (-50~+125C) and Fahrenheit (-58~+257F).


3. Wide Measuring Range and Custom Sampling Time

    The measuring range is -50~+125C. It applies to ice water tank, fermentation tank, storage tank, etc.

    Sampling time is 10 seconds in default. It’s also available at 5 seconds or 2 seconds.


 4. High Accuracy

    The accuracy is +/-1C @ -20~+80C, +/-2C @ others. That is sufficient for measurement of common liquids in tanks. And higher accuracy is available upon request.



5. Stainless Steel Case and High Ingress Protection

    The case is of stainless steel material (SUS304). Its ingression protection is IP65. It’s totally protected against dust and protected against low pressure jets of water from all directions.



6. Long Battery Life and Easy to Replace Batteries

    It’s of 3VDC button battery. We are using high quality batteries. The battery life is 2 years long with sampling time of 10 seconds. And it’s easy to replace the batteries in low batteries.


Specifications:

Accuracy

+/-1C @ -20~+80C; +/-2C @ others

Application

Food and Beverage Processing

Battery Life

2 years (sampling time 10 seconds)

Case Material

Stainless steel material (SUS304)

Case Diameter

3inch, 4inch

Certification

ISO9001

Connection Thread

1/2NPT, G1/2, etc (Upon request)

Custom Demands

Logos / Sensor Stem Length / Sampling Time

Display

3 or 4 digits LCD; Letter height 20mm

Ingress Protection

IP65

Measuring Range

-50~+125C / -58~+257F

Mounting Type

Bottom or back with flange

Power

3VDC button battery (battery can be replaced)

Quality Guarantee

2 years

Resolution

0.1C/F

Sampling Time

10 seconds (standard)

Sensor

NTC

Stem

D8m*228mm (Standard)

Working Environment

-20~+50C, 10%~90%RH



Product Pictures:
